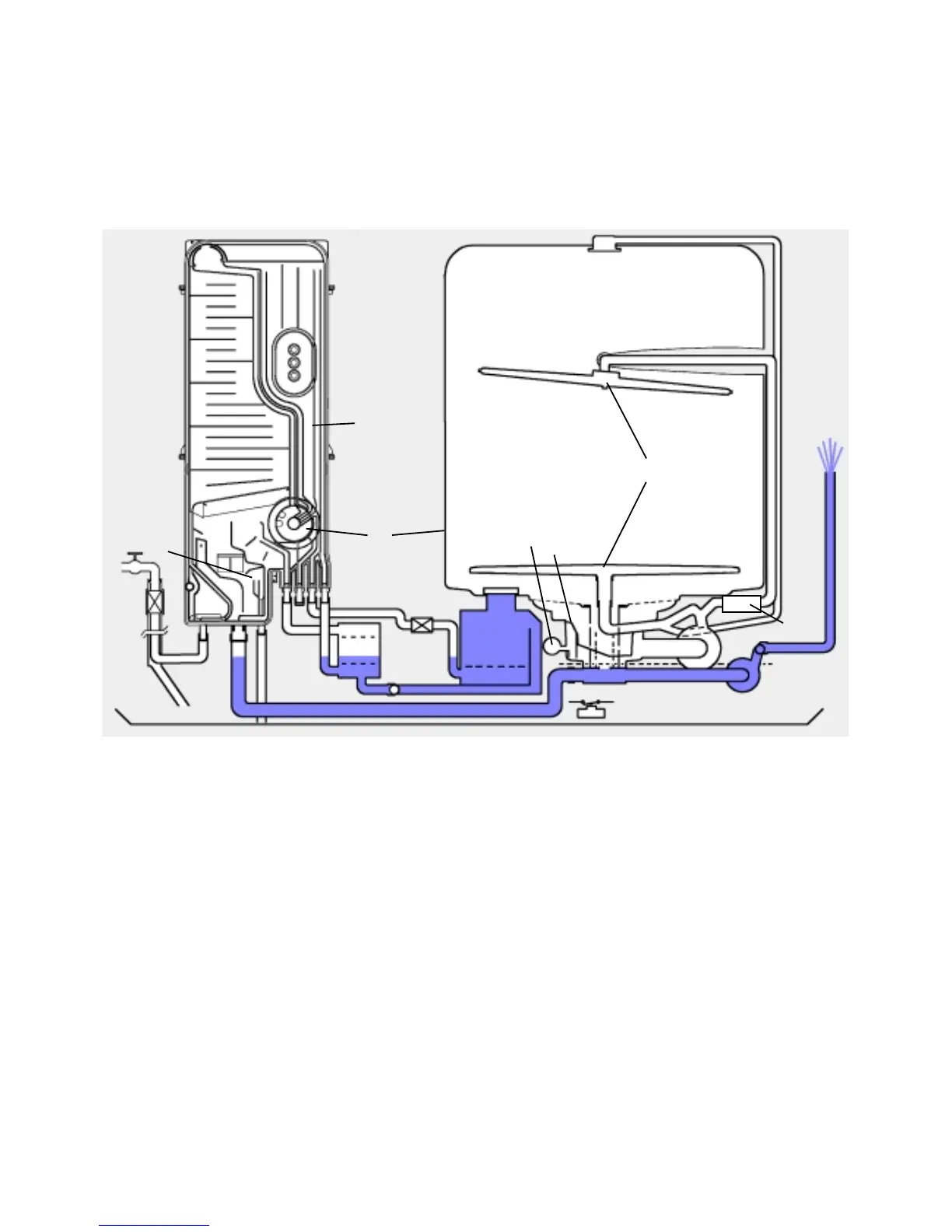

5.3 Draining
During the wash cycle the water is pumped out at various stages. First the draining water cleans the
filters (16). The filters are open at the bottom which allows any soilage to be rinsed off sufficiently.
There is a non-return valve (20) at the inlet connection to the drain pump (19). This valve prevents the
water
1 Inlet valve
2 Air break
3 Regeneration water dosage
4 Overflow safety level
5 Safety overflow
6 Inlet to sump from regeneration dosage chamber
7 Regeneration dosage chamber
8 Softener
9 Salt container
10 Non-return valve salt container
11 Regeneration valve
12 Safety inlet hose
13 Base tray
14 Float switch
15 Pressure switch
16 Filter
17 Circulation pump
18 Flow heater
19 Drain pump
20 Non-return valve
21 Spray arms
22 Roof-mounted shower
23 Tub vent
24 Sump assembly
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
21
22
23
24
