Electrolux EDW 1003 - Selecting Start Time

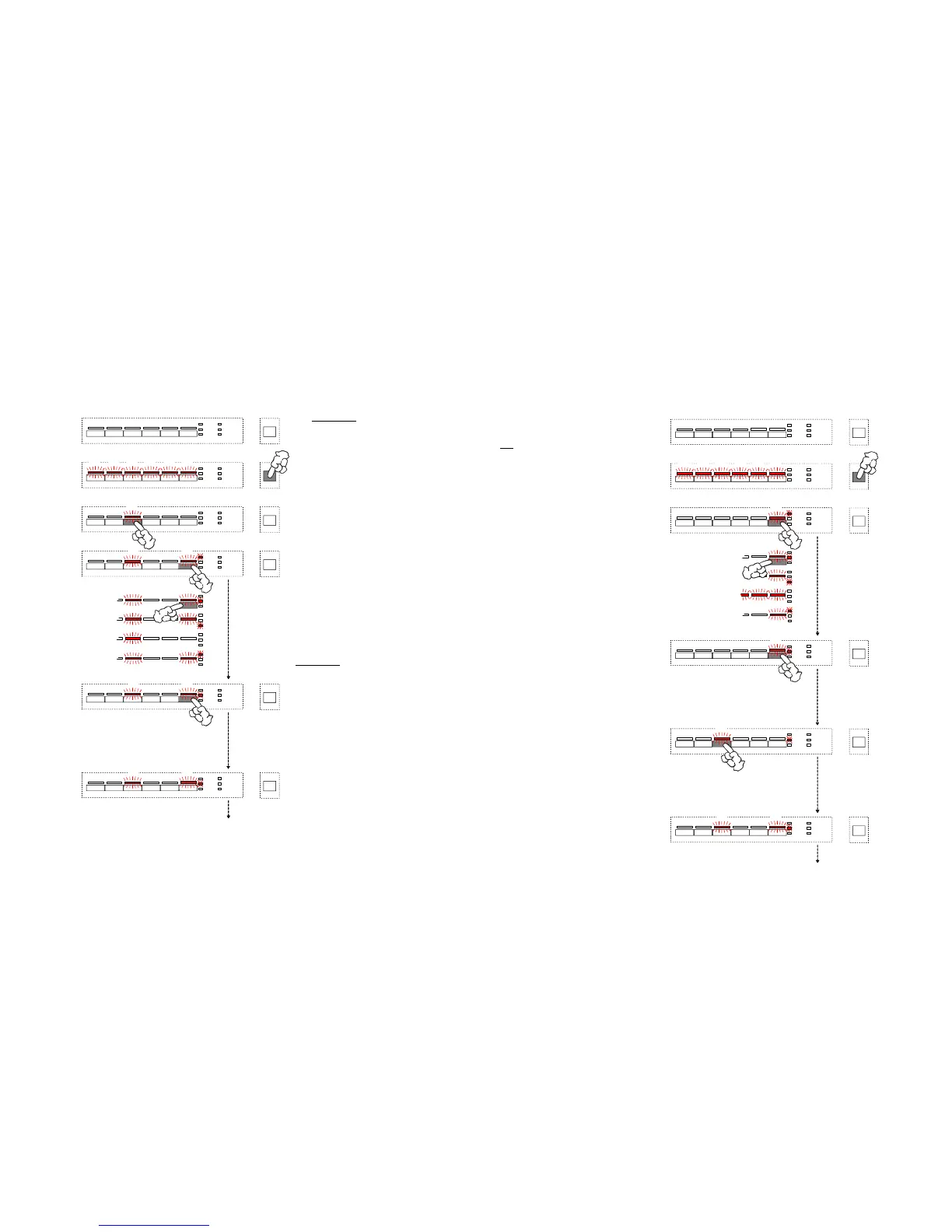

6.4. Input philosophy: select start time
Variant A Variante B
time preselection after program selection
time preselection before program selection
ç Variant A
1. Appliance in switched-off condition
2. Switch on appliance by ON/OFF key S0
Ä
Appliance in "prestart" mode
Ä
All LEDs of program and option keys are lit,
the keys can be selected.
3. Select program by pressing the corresponding key.
Ä
Corresponding program LED is lit.
4./5. Actuate start-time preselection key within 3 seconds
Ä
Key LEDs of program and "SZV" are lit
Ä
The "SZV" is indicated by the first lighting time LED.
Any additional key pressure causes the start time scrolling by
1 step 3h - 6h - 9h - "SZV" LEDs off (SZV=0h) - 3h - 6h - ...
6. 3 seconds after the last actuation of the "SZV" key the adjusted
start time gets active and runs down after the door has been closed.
Ä
The key LEDs of program and "SZV" are lit
Ä
The adjusted "SZV" is indicated by the lighting time LED.
Variant B è
1./2. like variant A
3. Actuate start-time preselection key.
Ä
LED of "SZV" key is lit.
Ä
The "SZV" is indicated by the first lighting time LED.
Any additional key pressure causes the start time scrolling by
1 step 3h - 6h - 9h - "SZV" LEDs off (SZV=0h) - 3h - 6h - ...
(With the setting 0h all LEDs of program and option keys are lit)
4. As long as no washing cycle is selected, the display remains as
is. The selected start time is not active!
5. Select program by pressing the corresponding key.
Ä
Program LED and time LED are lit.
Ä
The LED of the start-time preselection key goes out
6. 3 seconds after the last actuation of a key the adjusted start
time gets active and runs down after the door has been closed.
Ä
The key LEDs of program and "SZV" are lit
Ä
The set "SZV" is displayed by the lighting time LED.
1.
2.
4.
3.
6.
3 Sekunden
5.
Startzeitvorwahl läuft ab
LD1 LD2 LD3 LD4 LD5 LD6
S1 S2 S3 S4 S5 S6
LD7
LD8
LD9
LD10
LD11
LD12
S0
S0
LD1 LD2 LD3 LD4 LD5 LD6
LD3
S3
LD3
3h
6h
12h
LD6
S6 =SZV
3h
6h
9h
3h
6h
9h
3h
6h
9h
3h
6h
9h
Pro
Tastendruck
+ 1 Stufe
LD3
3h
6h
9h
LD6
S6 =SZV
LD3
3h
6h
9h
LD6
1.
2.
3.
6.
4.
Startzeitvorwahl läuft ab
LD1 LD2 LD3 LD4 LD5 LD6
S1 S2 S3 S4 S5 S6
LD7
LD8
LD9
LD10
LD11
LD12
S0
S0
LD1 LD2 LD3 LD4 LD5 LD6
3h
6h
9h
LD6
S6 =SZV
3h
6h
9h
3h
6h
9h
3h
6h
9h
3h
6h
9h
Pro
Tastendruck
+ 1 Stufe
3h
6h
9h
LD6
S6 =SZV
LD3
LD6
3h
6h
9h
Startzeit wird erst aktiv wenn
Programm gewählt wird
5.
LD3
S3
3h
6h
9h
3 Sekunden
