INSTALLATION
WARNING!
Refer to "Safety instructions" chapter.
IMPORTANT!
BEFORE INSTALLATION
Before the installation of the appliance, record the
information below from the rating plate. The rating plate
is on the bottom of the appliance casing.
Model
PNC
Serial number
Built-in appliances
Only use the built-in appliances after you assemble the
appliance into correct built-in units and work surfaces
that align to the standards.
Connection cable
• The hob is supplied with a connection cable, to
replace the damaged cable, use the correct mains
cable of H05V2V2-F or H05RR-F temperature rating
90°C(or higher) 3×2.5mm
2
with an all-pole 20A
breaker.
=
=
630~770
m
+1
m
800
480
630
+1
350
+1
450-1
770 -1
55
min.8mm
min.25mm

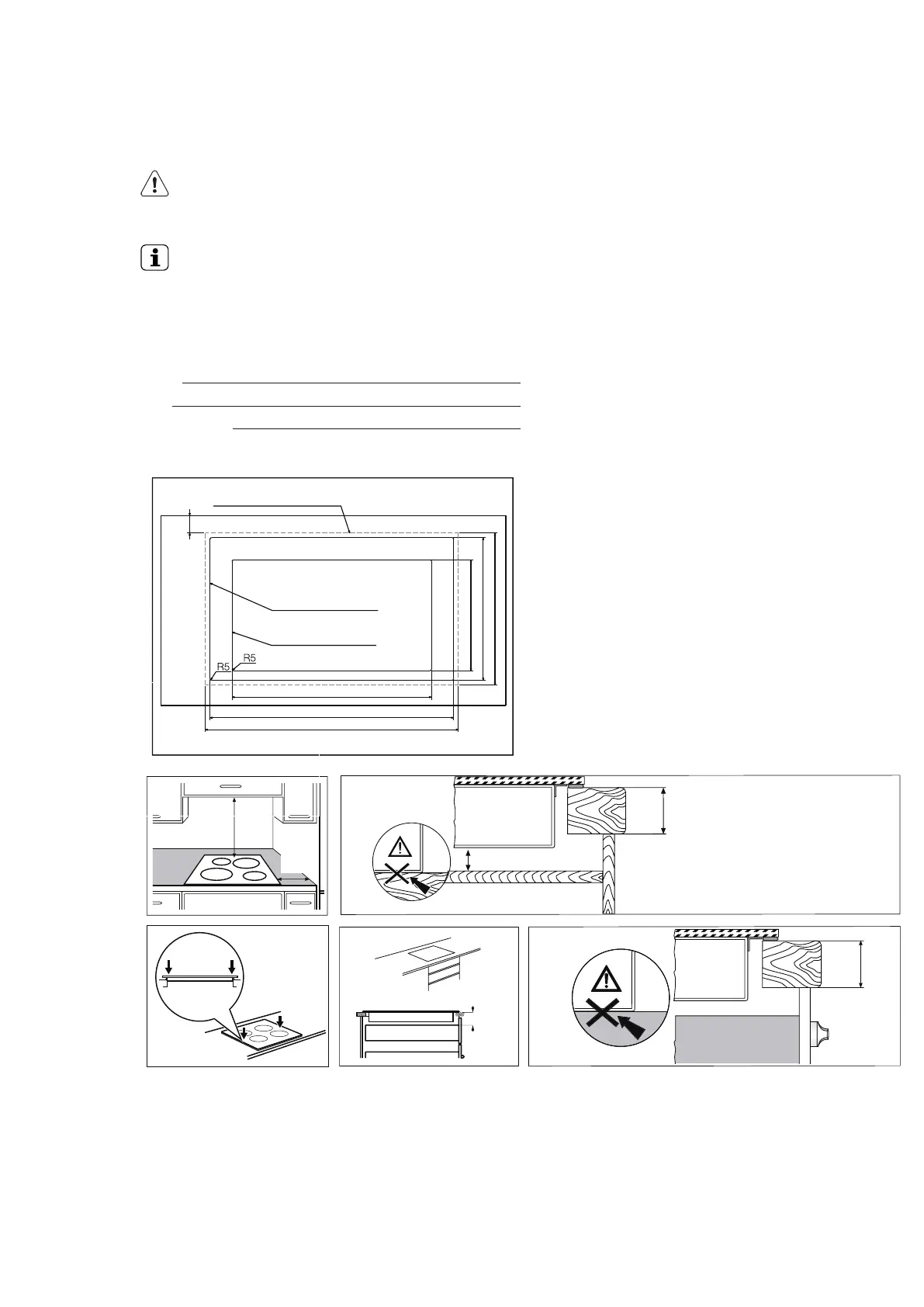

The position of glass panel
The maximum cutout
The minimum cutout
min.
60mm
min.
25mm
* Note:
• Installation diagram for reference only
• The clearance must meet or exceed the minimum recommended for both the rangehood and cooktop. Refer to
the rangehood installation manual.
