G DESCRIPTION OF CONTROL PANEL

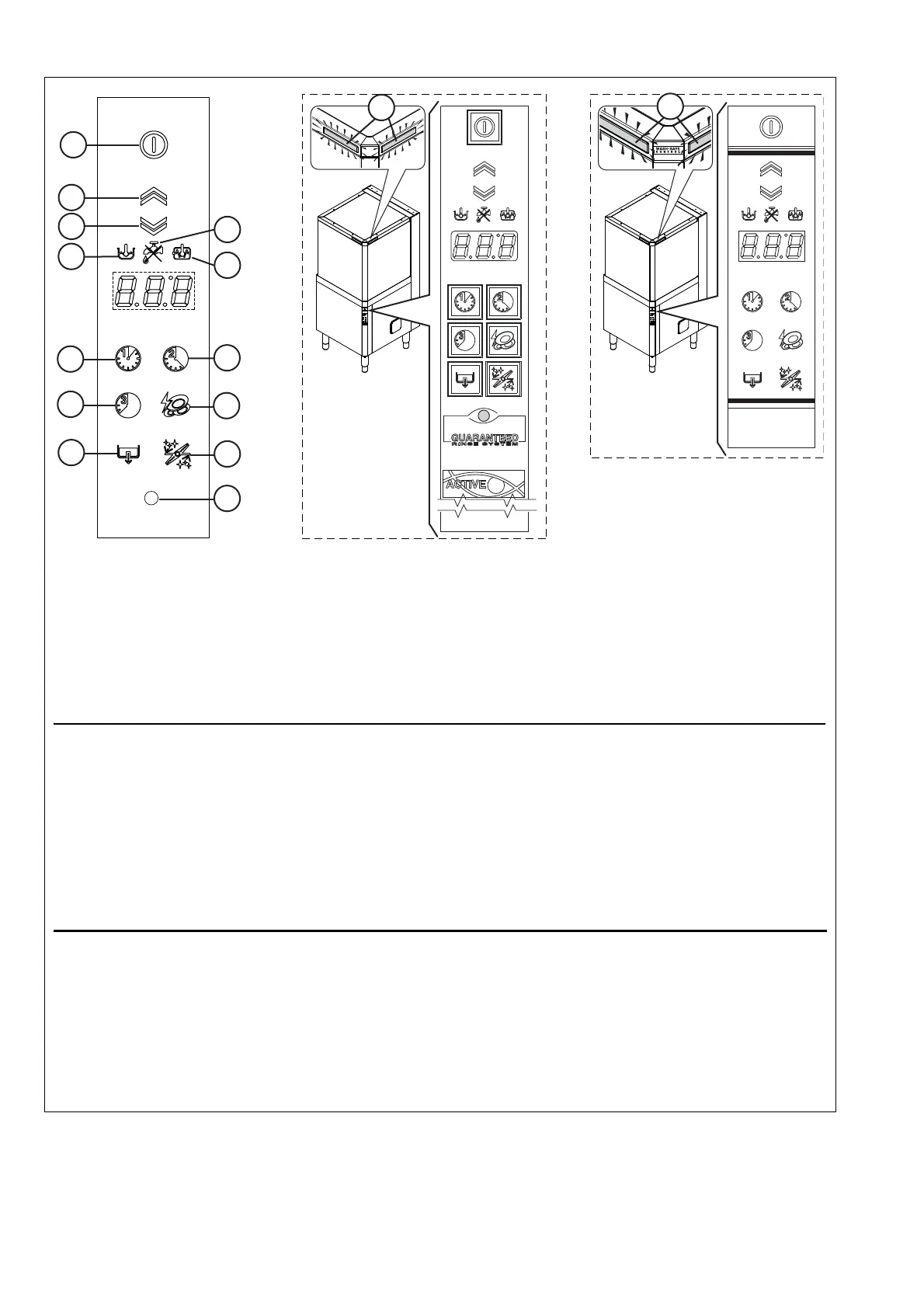

Table 2 Control panel

Described below are all the single keys and functions present in the various control panel models listed above. Some

functions are shared by all models of the range, whereas others are available only on several versions.

Legend

A = On / Off

B = Open hood

C = Close hood

D = “Tank temperature” indicator

light

E = “Water tap” indicator light

F = “Boiler temperature”

indicator light

G = Wash cycle 1

H = Wash cycle 2

I = Wash cycle 3

L = High Productivity or NSF/

ANSI 3 compliant

M = Drain / self-cleaning cycle

N = Delime cycle

P = ACTIVE/ WASH SAFE

CONTROL

Q = LED bar

IMPORTANT

The GUARANTEED RINSE SYSTEM (GRS) is incorporated in the ACTIVE/ WASH SAFE CONTROL models

(see led “P”). The GRS is an automatic rinse time/temperature control system.

Operation is as follows:

• during the wash cycle the indicator light is OFF;

• during the rinse cycle the indicator light comes on and is GREEN;

• at the end of the rinse cycle the indicator light remains GREEN if the rinse temperature and time have

been carried out as per the programme, otherwise the indicator light becomes RED;

• upon opening the hood, the indicator light GOES OUT.

If the indicator light becomes RED, for example should the boiler waiting time be disabled, wait for a cou-

ple of minutes and then repeat the wash cycle.

The temperature shown on the display is that of the tank if the light “D” is on, or of the boiler if the indicator light

“F” is on. The tank temperature is displayed during the wash cycle and the boiler temperature during the rinse

cycle.

In automatic versions the machine has a LED bar "Q" which monitors equipment status. When the LED bar is

green the machine is ready for washing and when it is blue it indicates wash cycle progress status. After rinsing,

the LED bar remains green if the temperature and rinse time were as programmed, otherwise the LED bar turns

RED.
