Electrolux ENN3153AOW - INSTALLATION BRACKETS; Bracket and Guide Mounting; Furniture Door Marking and Alignment

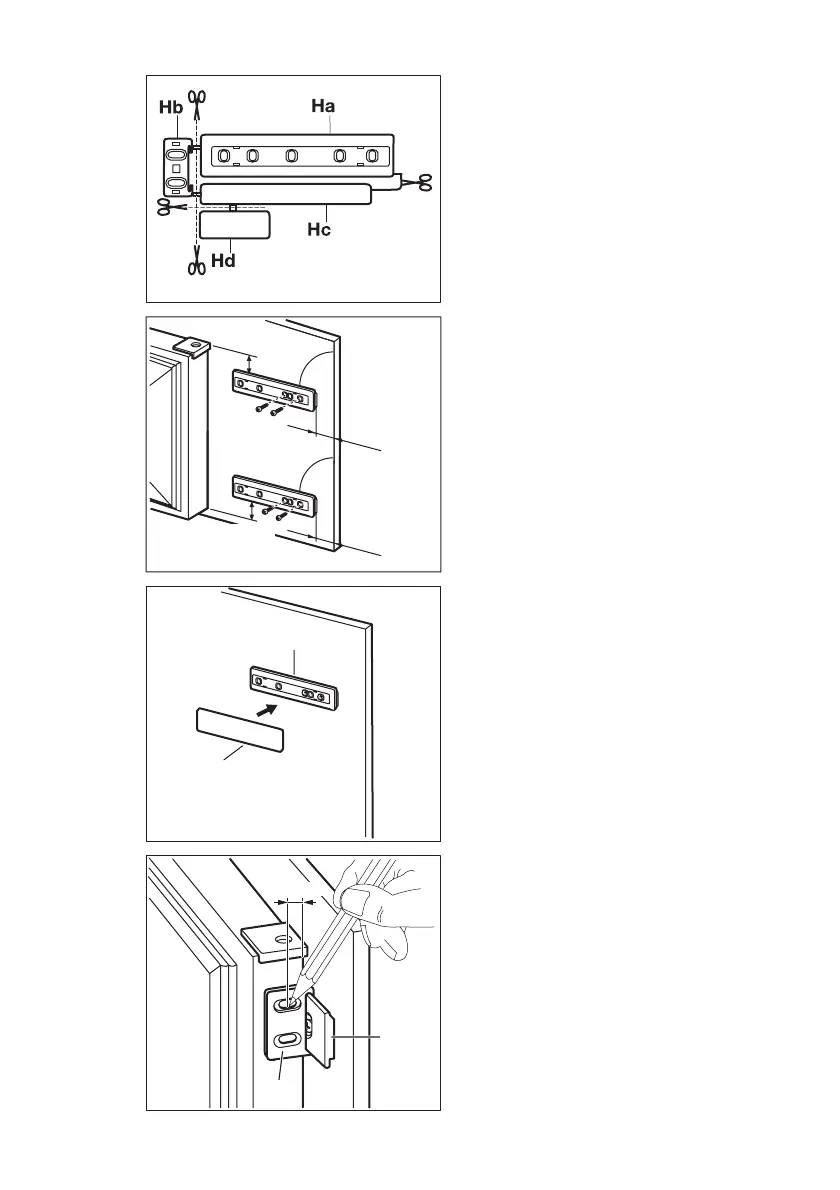

Disconnect the parts (Ha), (Hb), (Hc) and
(Hd).
ca. 50 mm
ca. 50 mm
21 mm
90°
90°
21 mm
Install the part (Ha) on the inner side of the
kitchen furniture.
Ha
Hc
Push the part (Hc) on the part (Ha).
Ha
Hb
8 mm
Open the appliance door and the kitchen
furniture door at an angle of 90°.
Insert the small square (Hb) into guide (Ha).
Put together the appliance door and the fur-
niture door and mark the holes.
