Electrolux EPT-800 - Installation for Cooling; Fixed Installation Procedure

L] INSTALLATION FOR COOLING

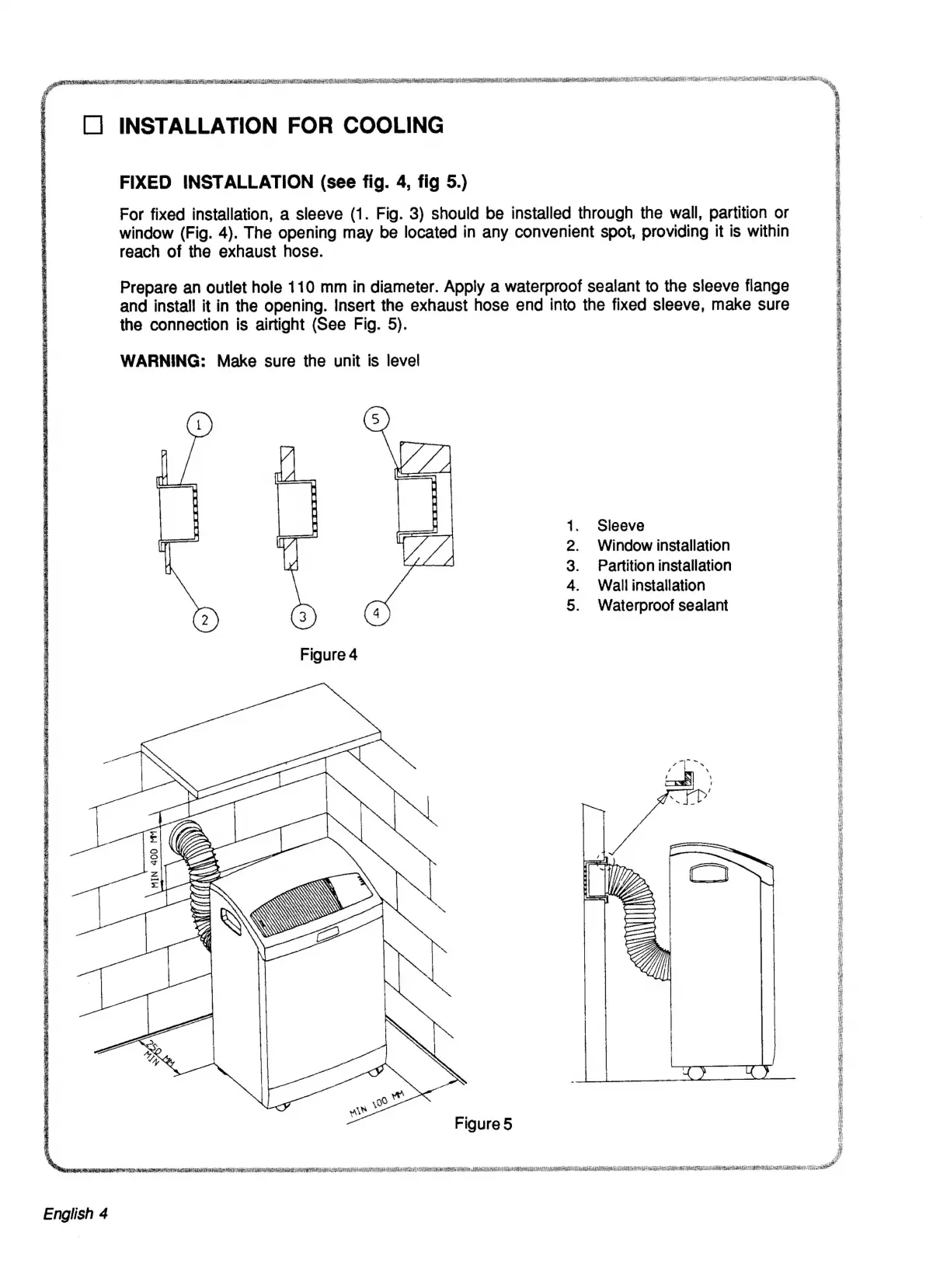

FIXED INSTALLATION (see fig. 4, fig 5.)
For fixed installation, a sleeve (1. Fig. 3) should be installed through the wall, partition or
window (Fig. 4). The opening may be located in any convenient spot, providing it is within
reach of the exhaust hose.
Prepare an outlet hole 110 mm in diameter. Apply a waterproof sealant to the sleeve flange
and install it in the opening. Insert the exhaust hose end into the fixed sleeve, make sure
the connection is airtight (See Fig. 5).
WARNING: Make sure the unit is level
