Electrolux ERF2600 - User Interface on Vcz Drawer

Q&CI - Technical Support 11 599 83 20-19 Rev. 02

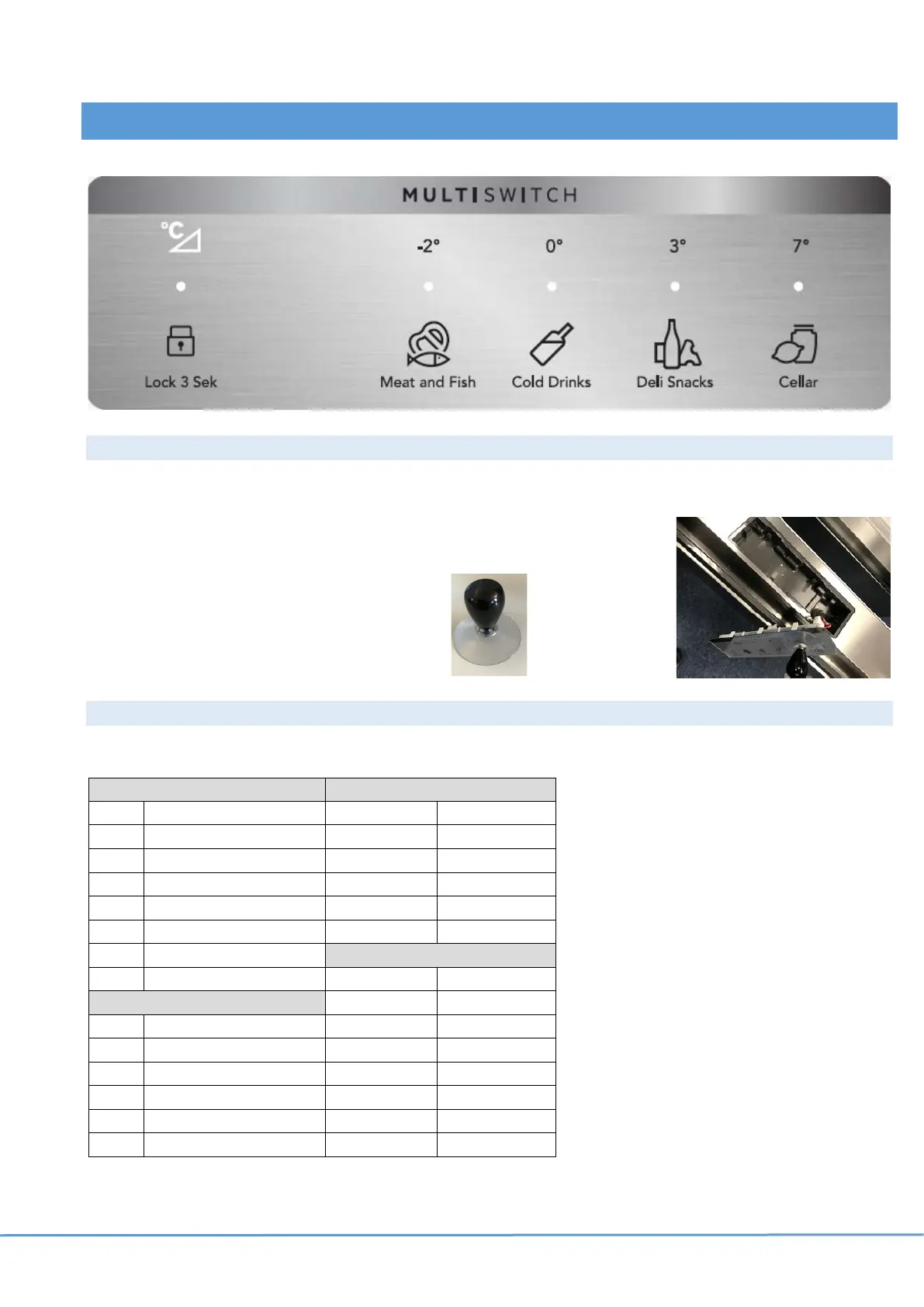

6 USER INTERFACE ON VCZ DRAWER
6.1 Disassembly user interface VCZ drawer
Cover is glued and cannot be reused.
1. Use a suction cup to clip out the control panel.
2. Disconnect the wire connector.
6.2 Connectors VCZ PCB
JFlash
DAAS
PIN
FUNCTION
PIN
FUNCTION
1
VCC (+5 VDC)
1
RX
2
SWDDIO
2
TX
3
RESET
3
+5 VDC
4
SWD_CLOCK
4
GND
5
GND
6
N/C
J1 (Freezer LED)
PIN
FUNCTION
MACS
1
+12 VDC
PIN
FUNCTION
2
PWM_OUT_1
1
GND
2
MACS
3
+5 VDC
4
+12 VDC
