Q&CI - Technical Support 3 599 83 20-19 Rev. 02

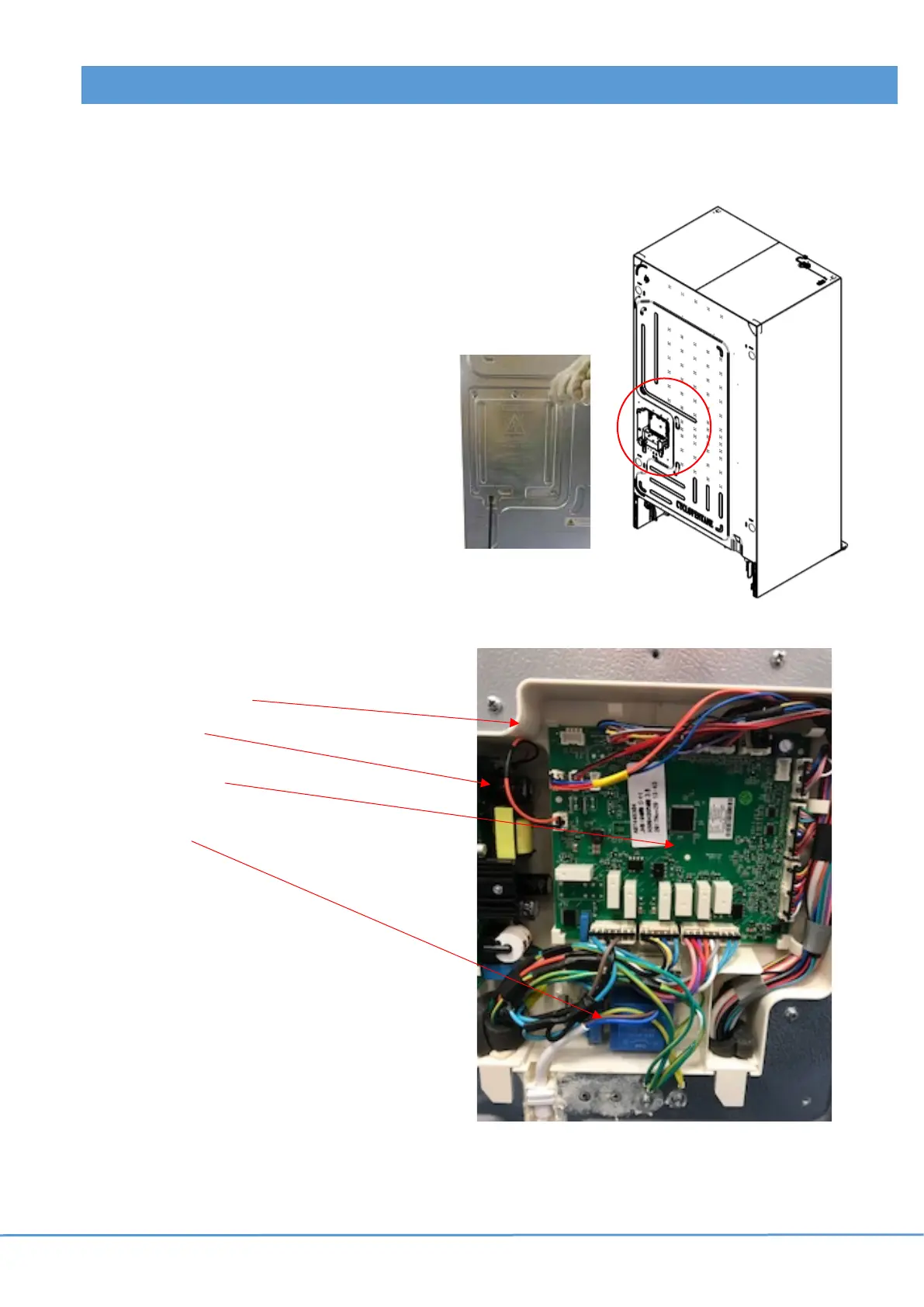

3 ERF2600 OVERVIEW
1. Disconnect power and place the refrigerator in a position to access
rear side.
2. Remove the five screws on the rear panel cover and remove the
cover.
3. Mark and disconnect all wires and release snaps to detach the
boards.
4. Do not replace the ERF2600 and the NIUx board at the same time.
Replace first one and start the appliance before replacing the
other. This is due to that the boards are serialized.
ERF2600 has eight relays and three SSRs
power boards, connected mostly to insulated UI.
Sidekick connection
Power supply
Control board 1
Filter board
