“ACTIVE DRY” DRYING
Description of the system:

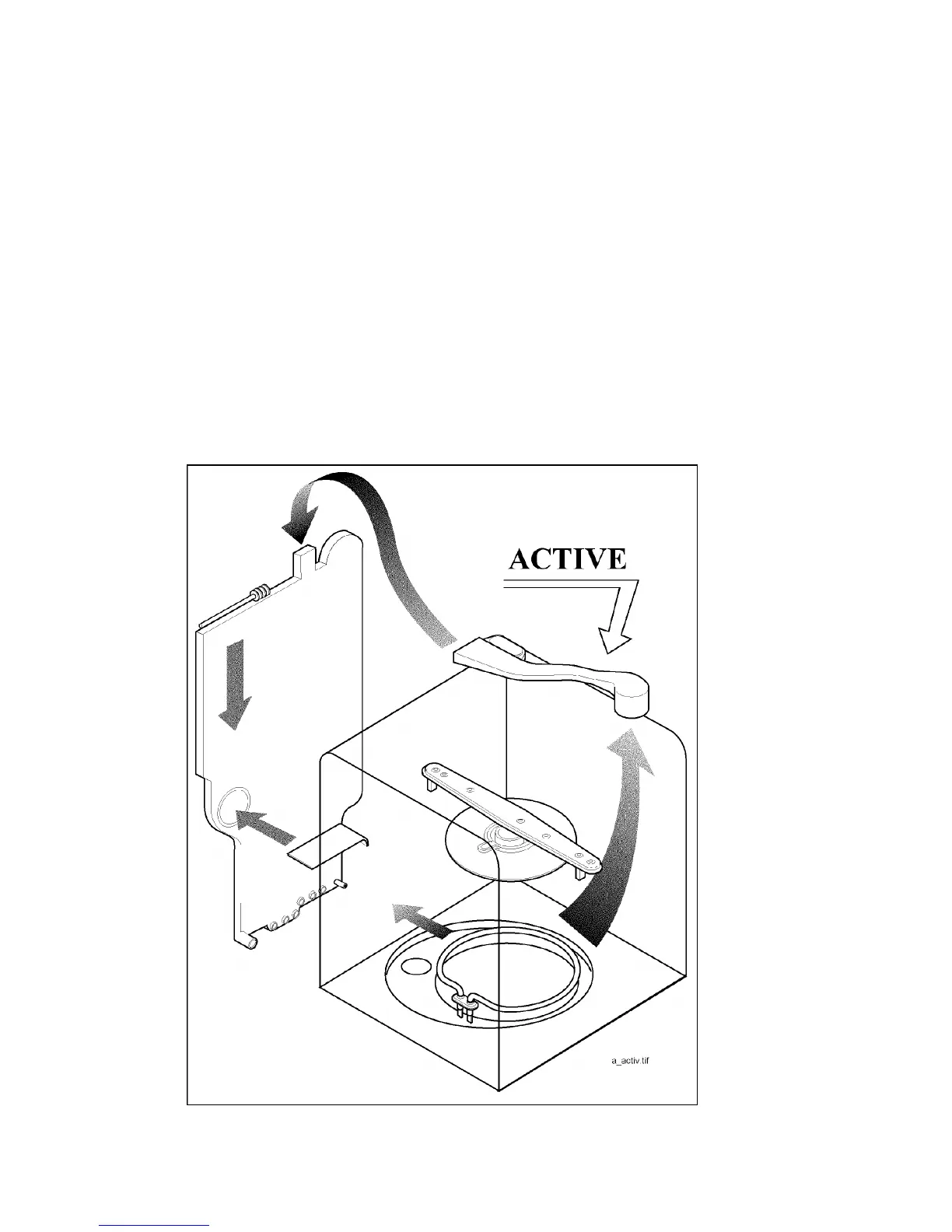

This is a new internal drying system based on natural circulation through a duct fitted externally to the
ceiling of the tub and connected to the IWMS.
This integrated circuit does not draw in air from the exterior.
The vapour (hot, humid air) produced during the hot rinse is ducted into the chamber in the IWMS, where it
is condensed in two different circuits.
Part of the vapour passes through the vapour duct in the lower section of the IWMS.
The remaining vapour rises to the top of the appliance and enters the IWMS through the external duct.
This forms a closed condensation circuit which does not expel vapour externally, since it is isolated from
the outside of the appliance.
The time for the drying phase is about 10 - 11 minutes.
