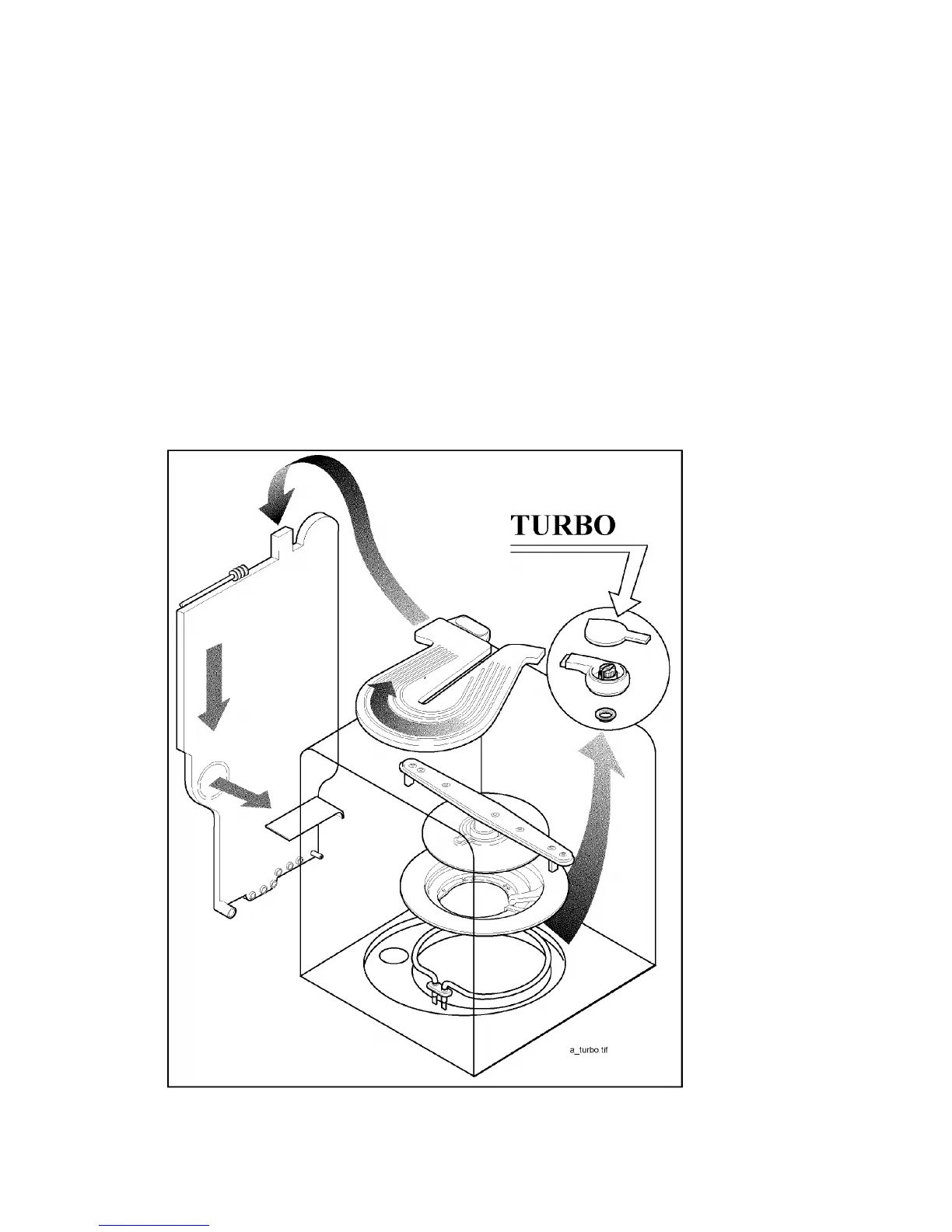

“TURBO” DRYING
Description of the system:
This is a new internal drying system based on forced air circulation provided by a fan fitted externally to the
ceiling of the tub and a duct connected to the IWMS.
The system consists of an integrated circuit which does not draw air into the appliance from the exterior.
The vapour (hot, humid air) produced during the hot rinse is ducted into the chamber of the IWMS where it
is condensed by two separate circuits.
Part of the vapour passes through the vapour duct in the lower section of the IWMS.
The remaining vapour is drawn to the top of the appliance by the fan and enters the chamber of the IWMS
through the external duct.
In this case, the condensation circuit is more effective, since the duct acts as a supplementary chamber.
The time for the drying phase is about 10 - 11 minutes.
24
