7. Installation
Connection of the stacker
• Place the stacker on the right side of the
dryer ironer and centre it with the nger in
the slit of the machine.
• Lock the stacker in position with the
clamping pads.

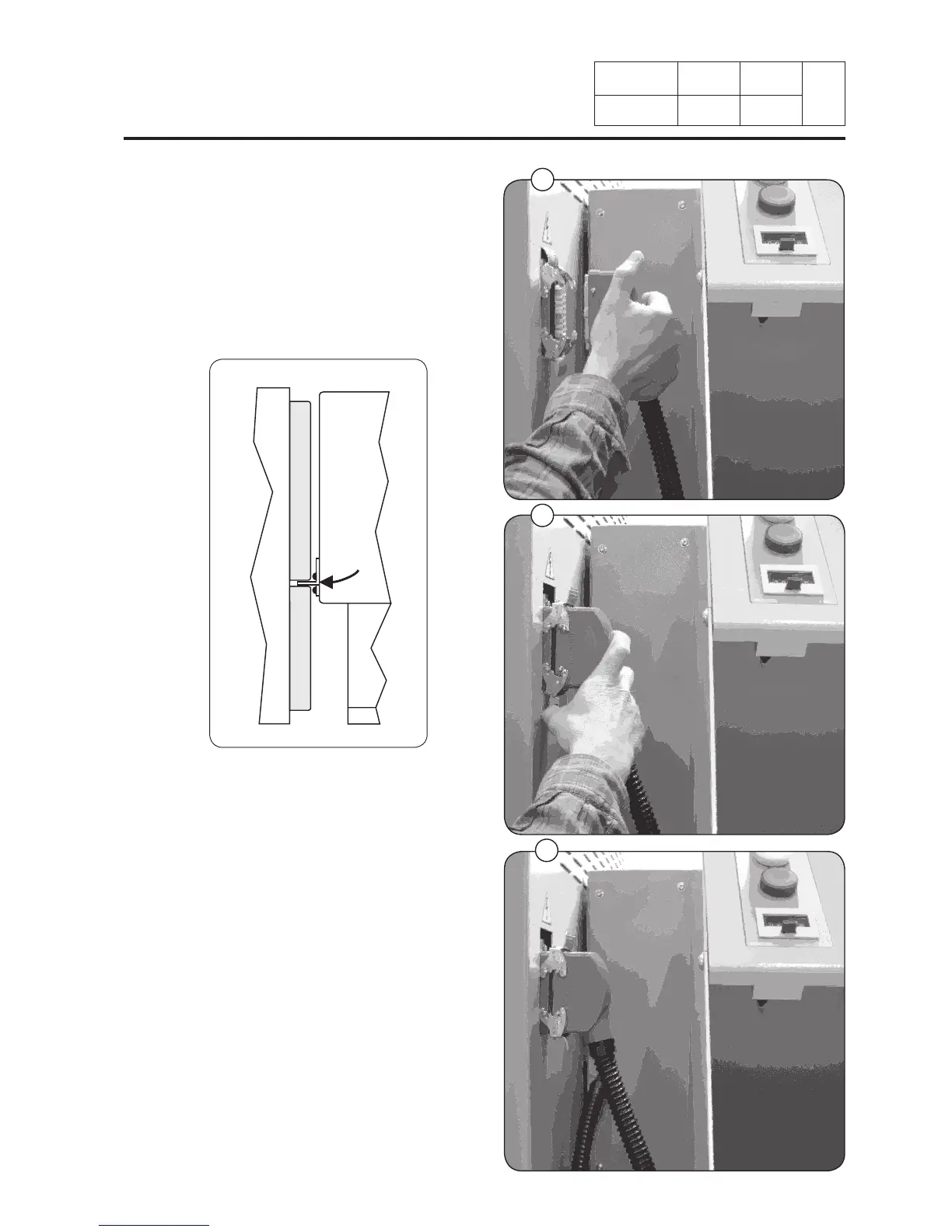

• Plug the feeding and control socket of the
stacker (g. 3).
- pull on the socket (g. 1).
- pull down the locking latches (g. 2).
IC448 Stacker
