INSTALLATION
MANUAL
Mechanical installation
Preparation of the ground and machine
- Degrease carefully the ground and the soles of the machine.
Electrical safety device :
- Earthing is compulsory.
Levelling the machine :
- Adjust the nuts with a spanner and adjust the dryer ironer so that it is horizontal and that its
four stands are perfectly vertical.

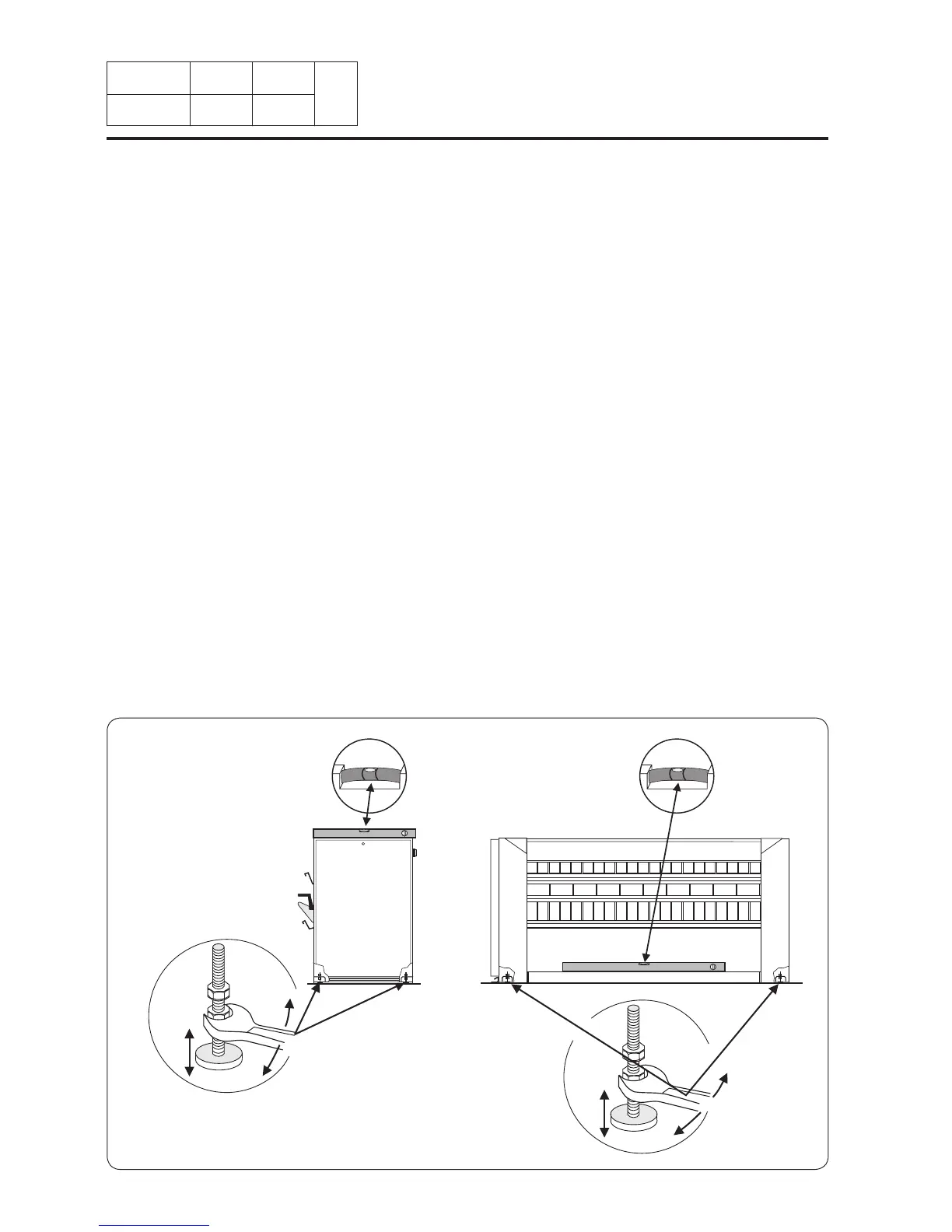

- Check with a spirit level placed on the sole plate for the longitudinal direction and the machine
top cover for the transverse direction (see sketch).
The maximum stand height adjustment is 80 mm (3").
- Tighten the lock nuts after adjustment.
