INSTALLATION
MANUAL
Installation
The installation must be done by competent technicians in accordance with local codes and
regulations. When there are not local codes and regulations, the installation must be comply
with european standards applicable.
The machine must be installed on a perfectly even surface, strong and horizontal, capable
resisting to the efforts shown in the technical characteristics.
If there is a carpet, it is recommended that it should be removed from the part of the oor on
which the machine is to be supported.
Control the horizontal level using a water level placed on the machine's sole.
Place the dryer so that it is easy for the user and the service technician to do their work.

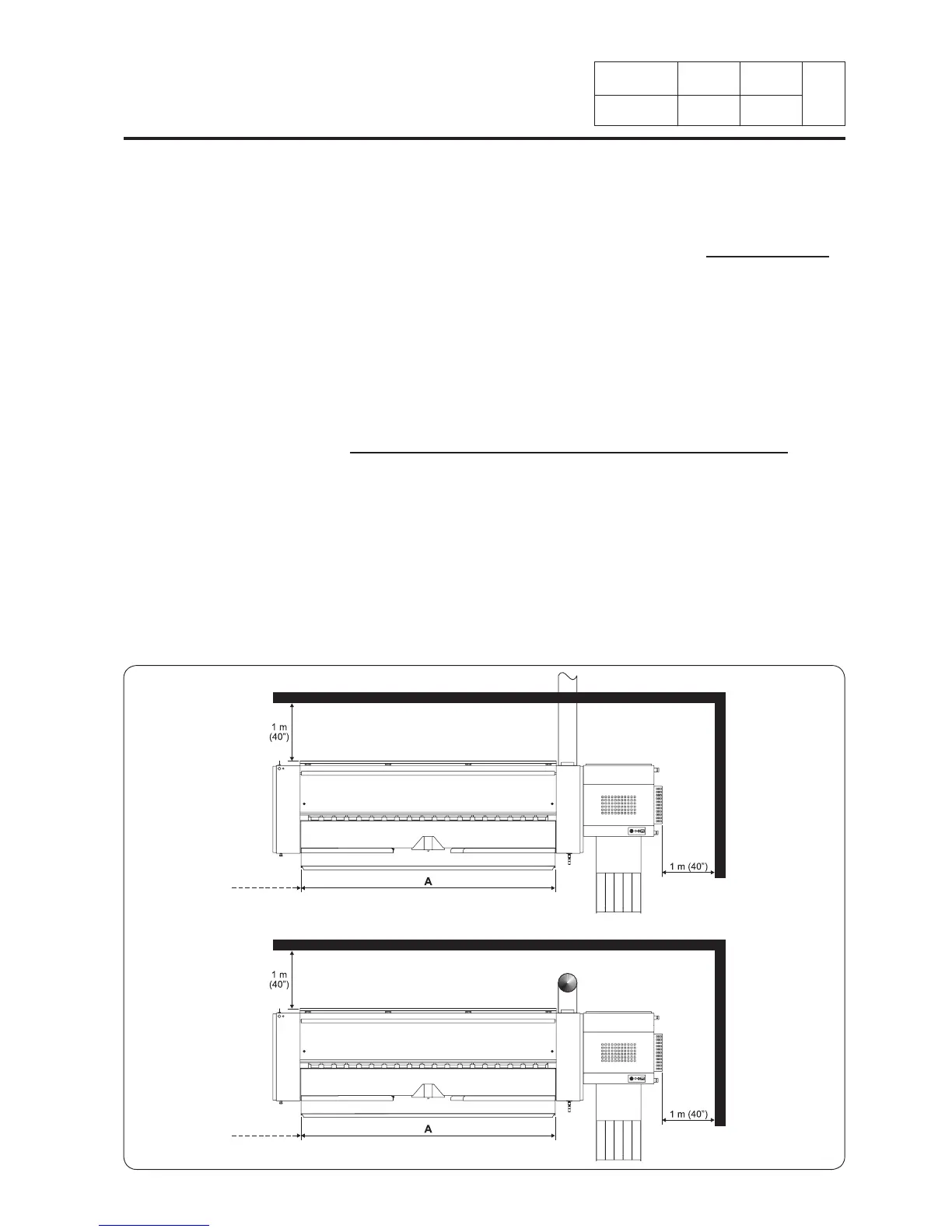

Leave at least 1 m (40") (according to the recommendation in standard EN 60204)
between the machine, a wall or any other machine at the sides.
However, note that if you can, it is recommended that you should leave sufcient space for
maintenance of the heating box to avoid having to move the dryer (minimum length A
on the left
side).
Ironers are provided with four leveling screws to facilitate leveling (one on each corner of the sole
plate). To avoid damaging the oor surface, place 10 cm (4") square metal shims, or shims made
of another appropriate material, under the ironer stands.
7. Installation
