Q&CI - Technical Support 8 599 844 - 908 Rev. 01

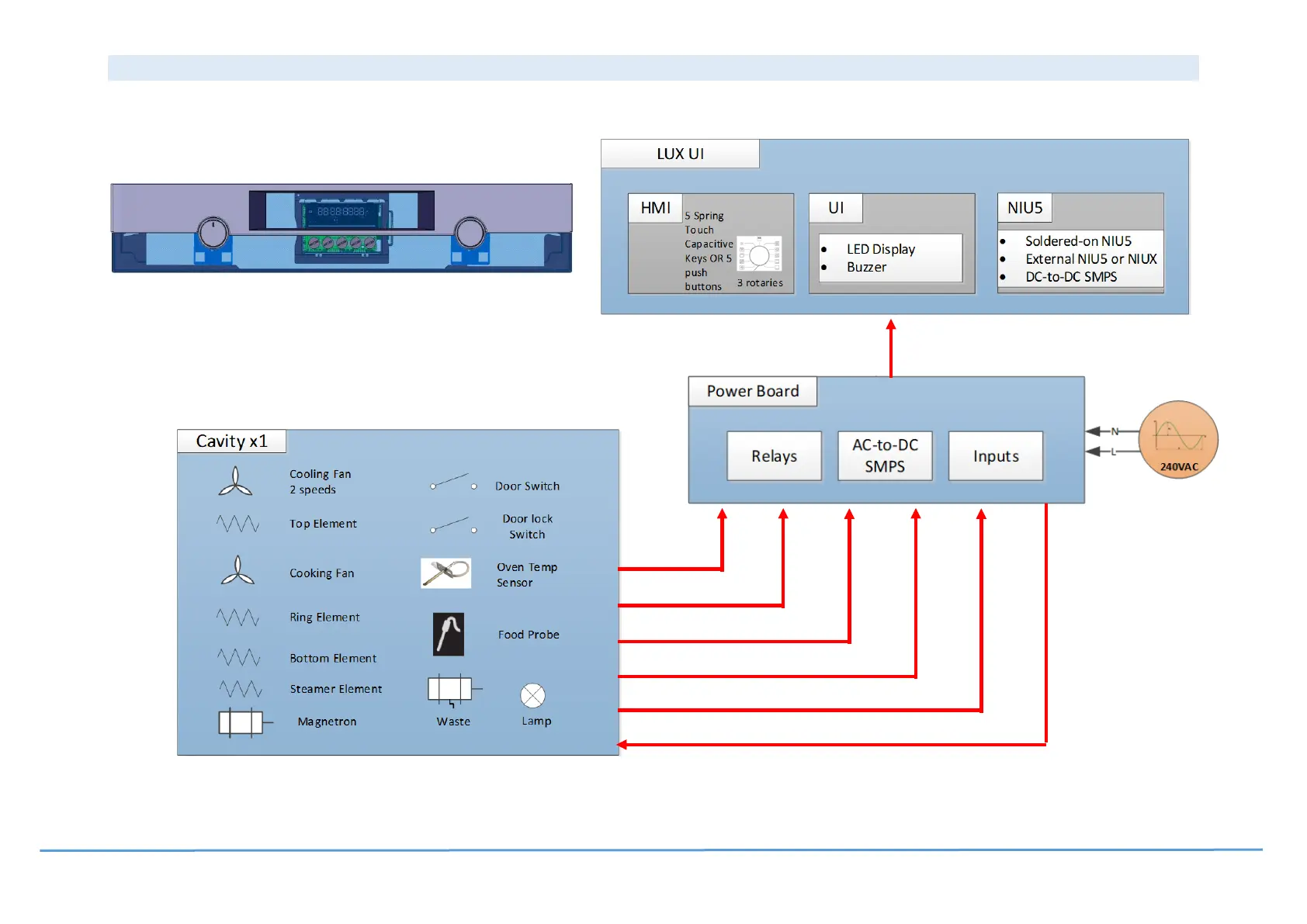

3.5 Block diagram “LUX”
MACS
Door switch
Oven Temperature sensor
Food sensor
Switched AC to elements
Door lock switch
