SOI 01.05 FV 11/33 599 36 78-06
OPERATION SEQUENCE
HIGH, MEDIUM HIGH, MEDIUM, MEDIUM LOW, LOW COOKING

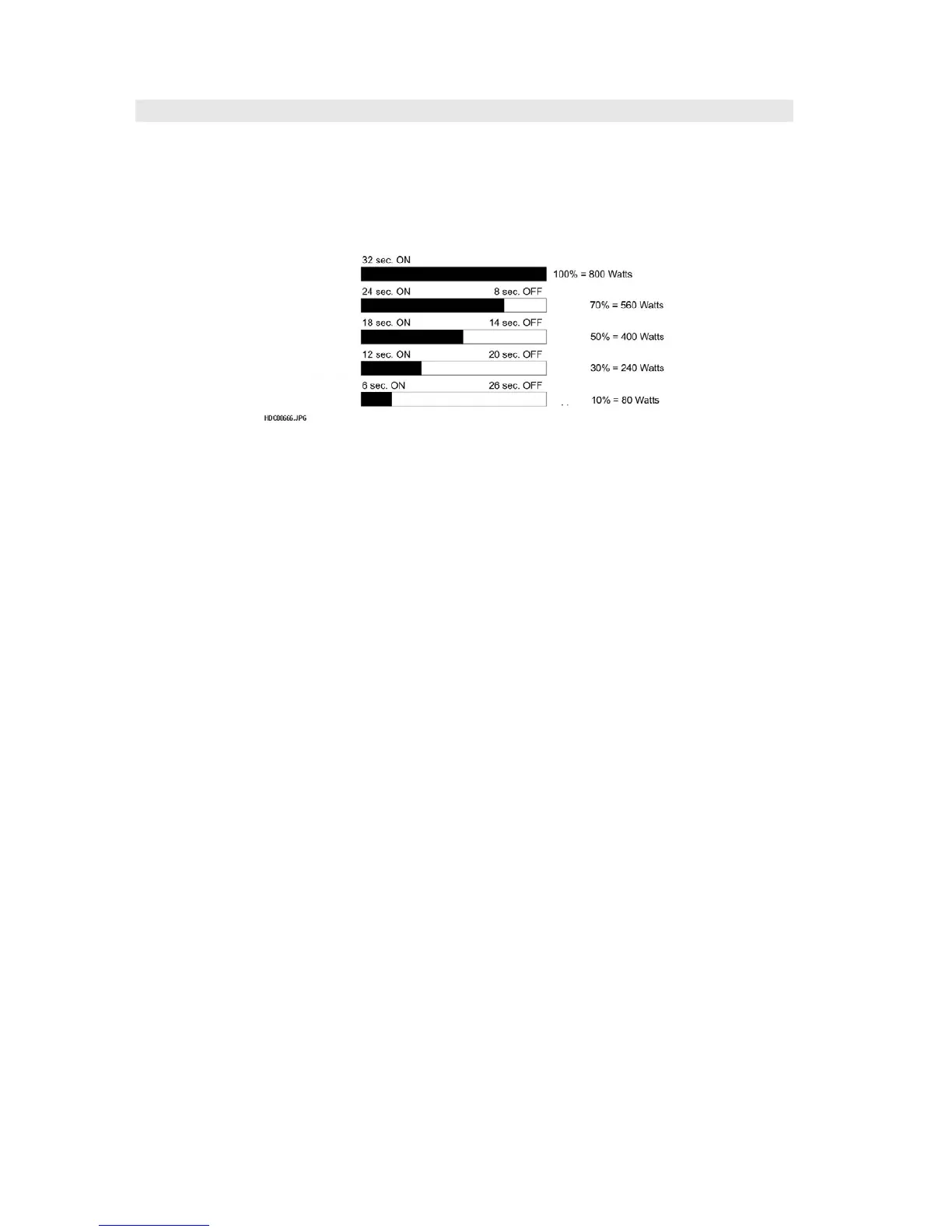

When the microwave oven is preset for variable cooking power, the line voltage is supplied to the power
transformer intermittently within a 32-second time base through the vary contact. The following levels of
microwave power are given.
SETTING
NOTE: The ON/OFF time ratio does not exactly correspond to the percentage of microwave power,
because approx. 3 seconds are needed for heating up the magnetron filament.
HIGH
MEDIUM HIGH
MEDIUM
MEDIUM LOW
LOW
Approx.
Approx.
Approx.
Approx.
