SOI 01.05 FV 27/33 599 36 78-06
COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE

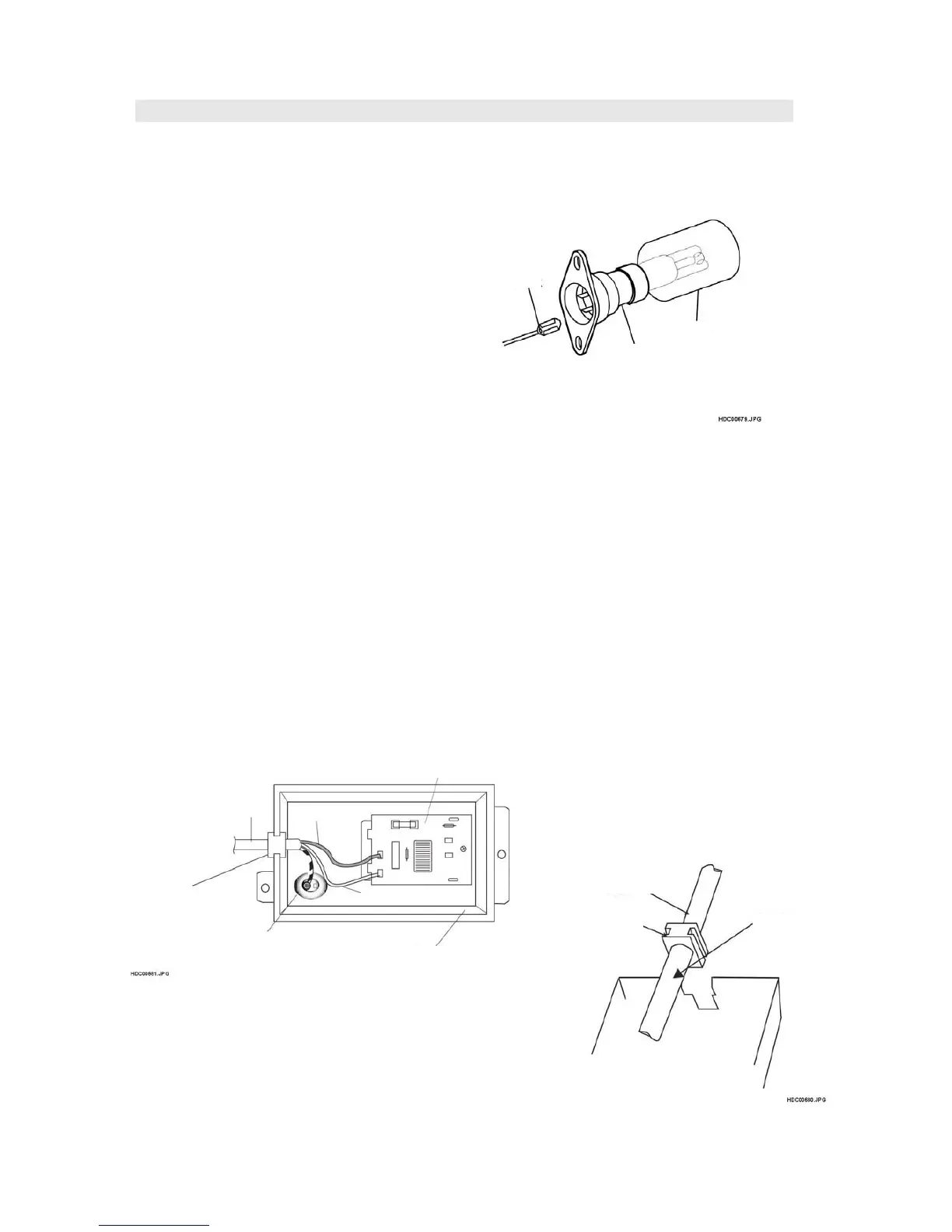

OVEN LAMP REMUVAL
1. CARRY OUT 3D CHECKS.
2. Disconnect the wire lead from the oven lamp
3. Lift up the oven lamp from the clips of the air
intake duct.
4. Now, the oven lamp is free.
POWER SUPPLY CORD REPLACEMENT
Removal
1. CARRY OUT 3D CHECKS.
2. Remove the wiring of the main harness from the
noise filter.
3. Remove the two (2)screws securing the N.F.U.
holder to the baseplate.
4. Remove the one(1) screw holding the
green/yellow (earth wire) to the N.F.U. holder
assembly.
5. Release the power supply cord stopper from the
N.F.U. holder assembly by sliding it out.
6. Remove the wiring of the power cord from the
noise filter.
7. Now the power supply cord is free.
Re-install
1. Insert the moulding cord stopper of power
supply cord into the cut-out of the N.F.U. holder
assembly, referring to the Figure C-1(b).
Installation of Power supply cord.
2. Install the earth wire lead of power supply cord
to the N.F.U. holder assembly with one (1)
screw and tighten.
3. Connect the brown and blue wire leads of
power supply cord to the noise filter correctly,
referring to the Pictorial Diagram.C-1(a)
4. Re-fit the N.F.U. holder assembly to the base
plate with the two (2) screws.
5. Connect the main harness wiring to the noise
filter correctly, referring to the Pictorial
Diagram(figure C - 1(a)).
Figure C-1 (a) Replacement of Power Supply Cord
Figure C-1 (b). Installation of Power Supply
Cord
Socket
Bulb
Lock
Oven lamp
Noise filte
