Drum
Removethescrews,boltandwasheronthebearing.Removethebearingandmountthenewone.

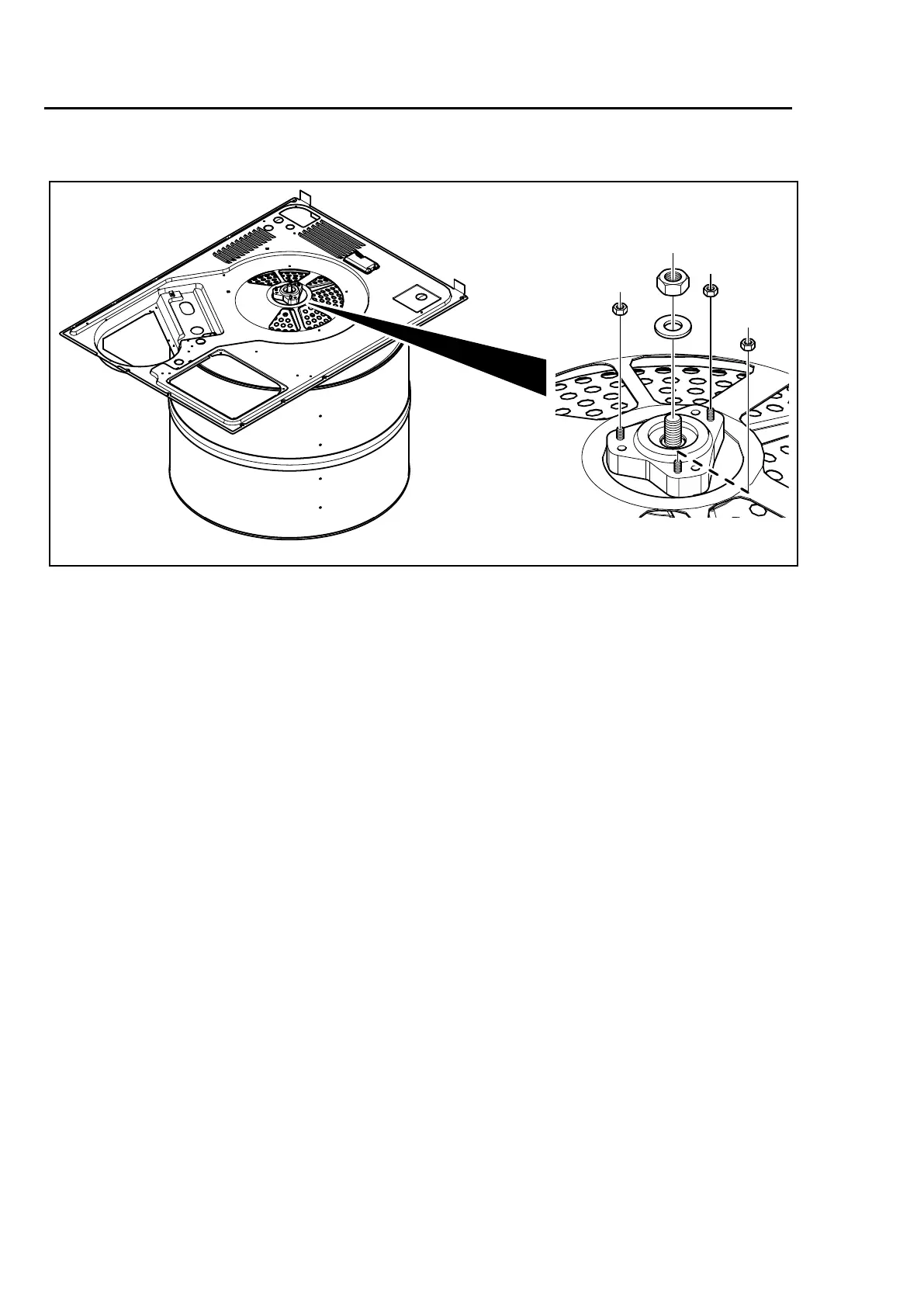

g.7532A
59
Carefullyputthenewdrumpackagebackinthemachine.
Fastenthesupportrollersatthefrontofthemachine.
ConnecttheRMCandthe“FREE”connectionifdisconnected.
Connectthewiresandmountthecoverpaneltotheelectricalconnections.
Fastenthefourscrewsatthepanelaroundtheheatingelementandtherestofthescrewson
thepanel.
Fastenthebelt.Rotatethedrumtomakesurethatthebeltisinposition.
Mounttheairchannelpanel.Oncondensemachines:Retthehosebeforemountingtheair
channelpanel.
Connecttheoverheatingthermostatandtheheatingsensor.
Mountthetoppanel,thecoverpanelattheairoutletandthecasingovertherearpanel.
