Electrolux T5130 - Circuit Diagrams for I;O Module Type 2 Functions

I/Omodules
67

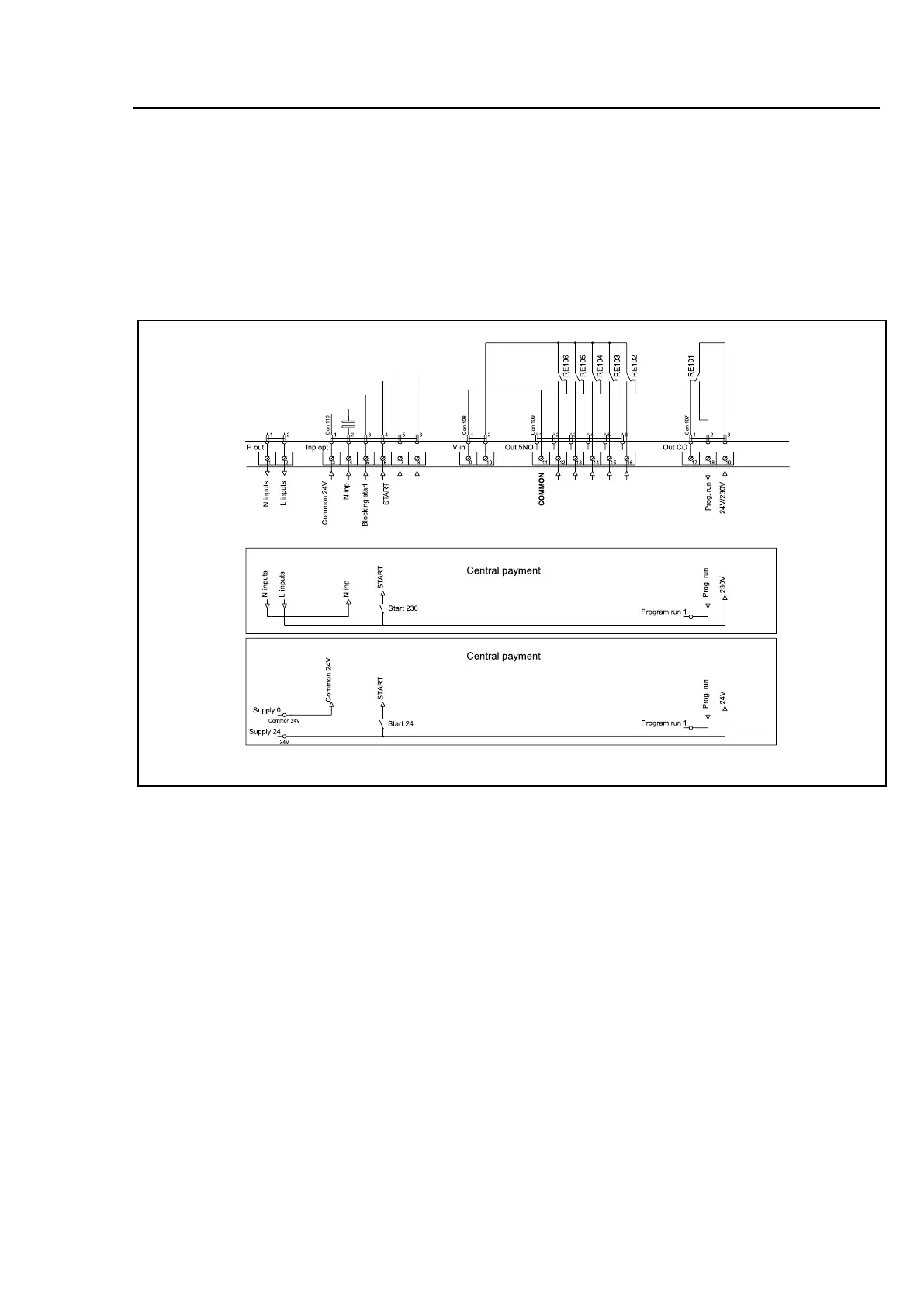

11.4CircuitdiagramoffunctionoptionsforI/Omoduletype2
11.4.1Centralpayment(2J)
Tostartthemachinefromacentralpaymentsystem,thepaymentsystemmusttransmitastart
pulsetothemachine.Thestartpulsecanbeeither230Vor24V.Inordertoreceiveafeedback
signaloncethemachinehasstarted,230Vor24Vmustbeconnectedtoconnection19.The
feedbacksignalonconnection18remainsactive(high)duringtheentireprogram.
g.7440
86
