Controlpanel
10Controlpanel

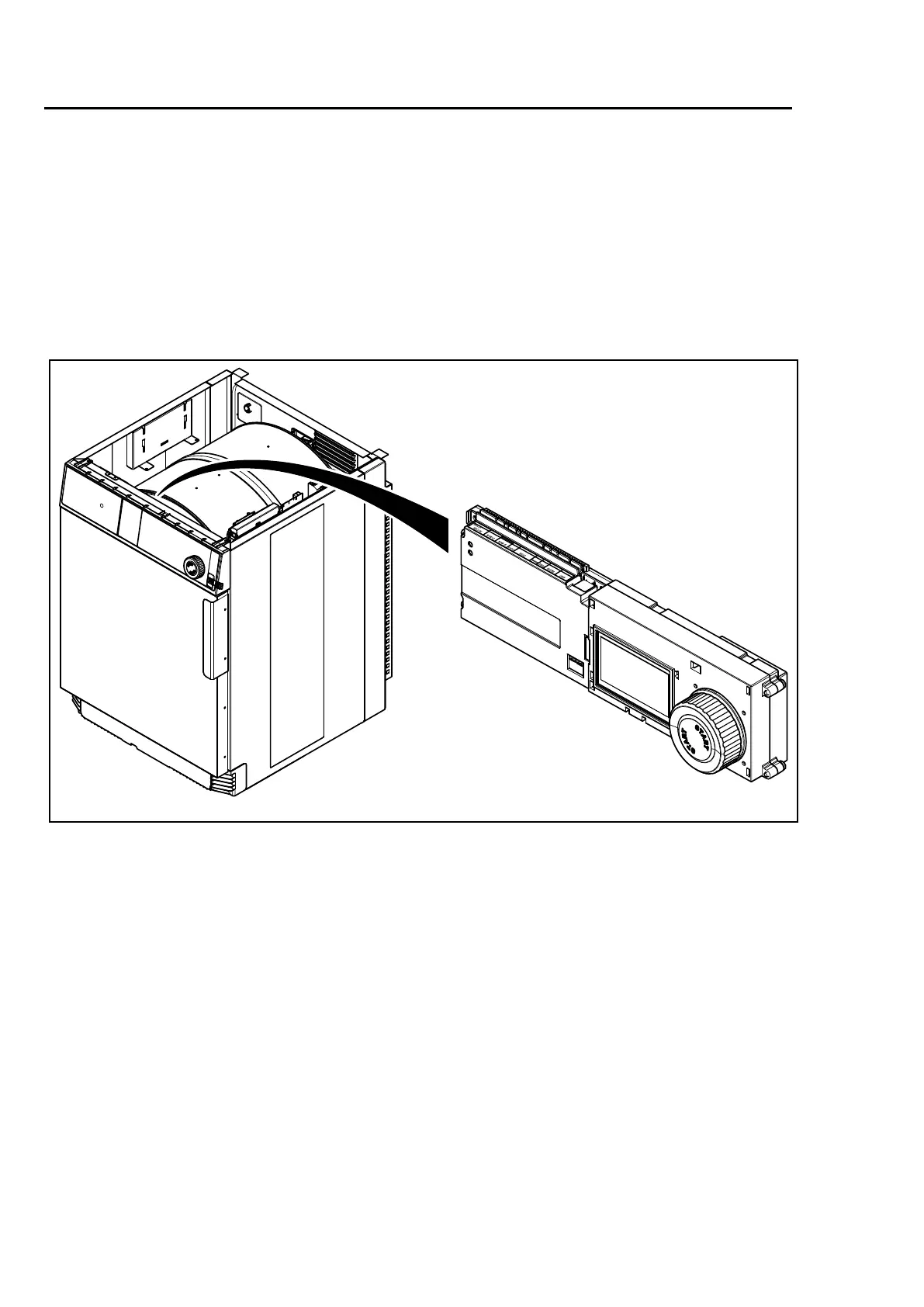

10.1Programunit
10.1.1Description
Theprogramunitiselectronicandcomprisesacircuitboardcontainingmicroprocessor,program
memory,serialinterfacetothemotor,I/Oboardsetc.
Theprogramunitreceivesitspowerfromaseparatepowersupplyunit.
g.7553
65
TheprogramunitreceivesinformationfromtheI/Oboardsaboutinputliketemperaturesensors,
RMC,vacuum,doorstatusetc,andoutputlikedrum,fanandheatcontrol.
