Drum
53
Removethebeltfromtheouterdrum.
Putthenewbelttemporarelyinpositionontheouterdrumandcarefullyputthedrumpackage
backinthemachine.

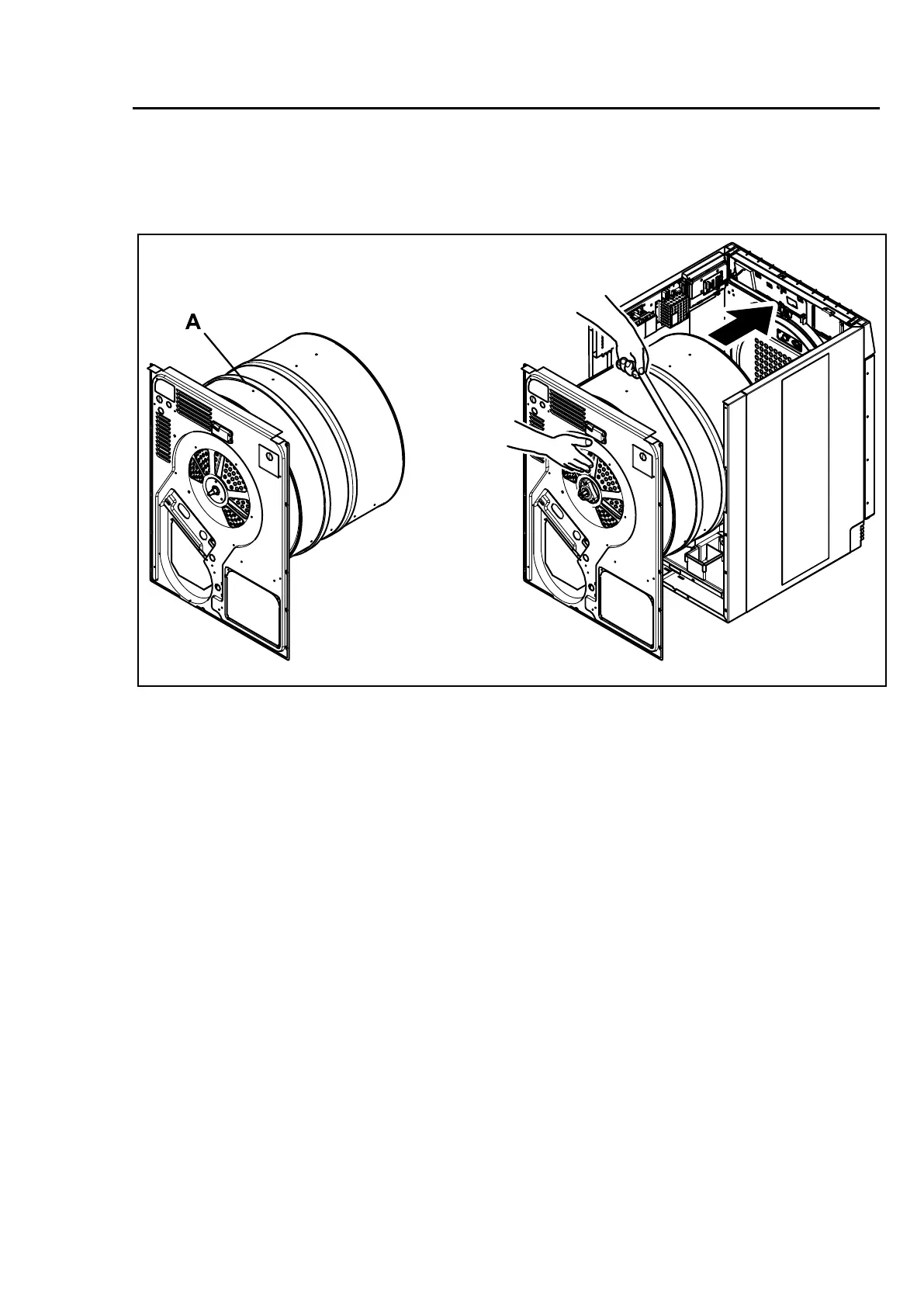

A
g.7538
64
Fastenthesupportrollersatthefrontofthemachine.
ConnecttheRMCandthe“FREE”connectionifdisconnected.
Connectthewiresandmountthecoverpaneltotheelectricalconnections.
Fastenthefourscrewsatthepanelaroundtheheatingelementandtherestofthescrewson
thepanel.
Rotatethedrumtomakesurethatthebeltisinposition.
Mounttheairchannelpanel.Oncondensemachines:Retthehosebeforemountingtheair
channelpanel.
Connecttheoverheatingthermostatandtheheatingsensor.
Mountthetoppanel,thecoverpanelattheairoutletandthecasingovertherearpanel.
