I/Omodules
65

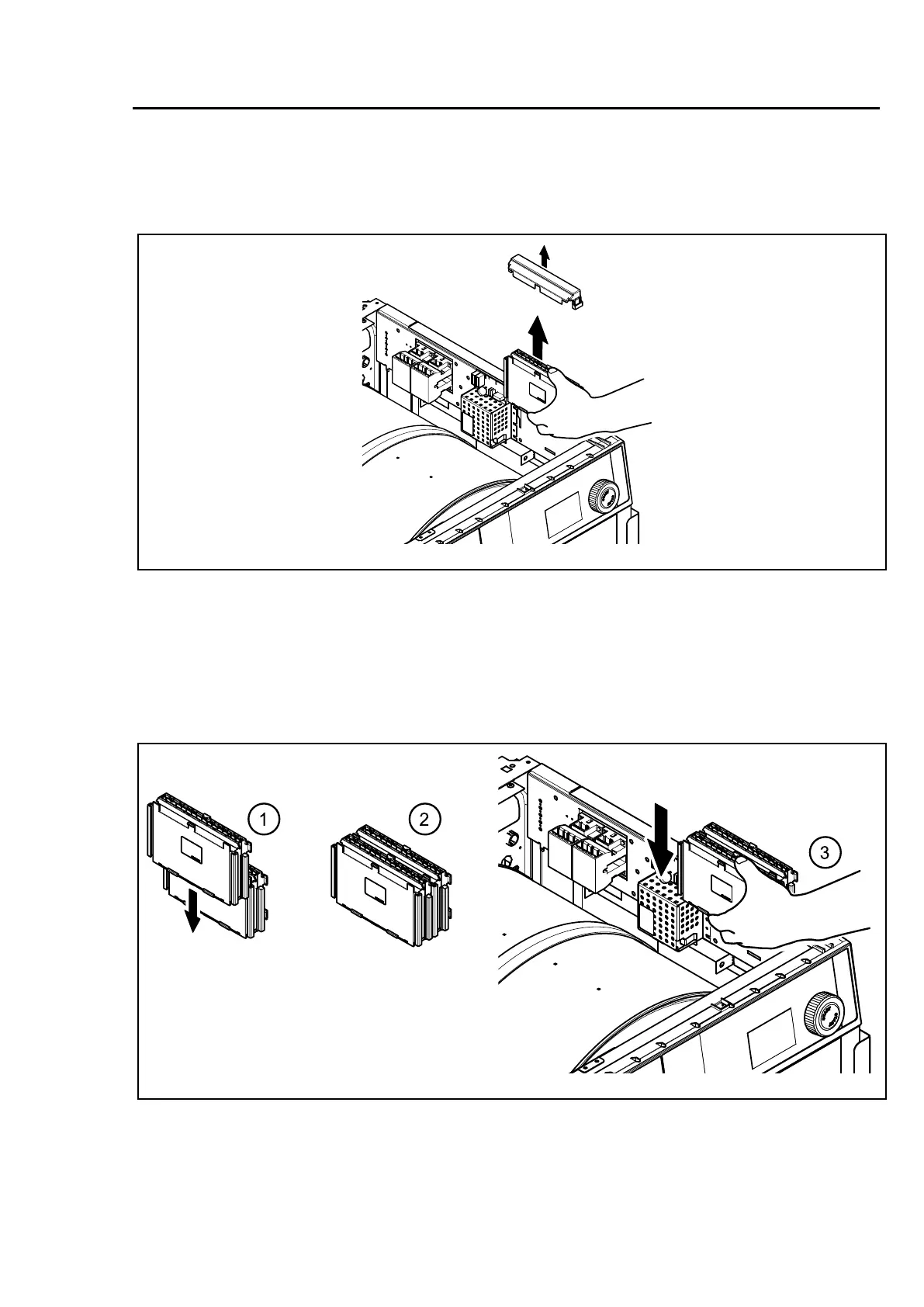

Removetheplasticcoverandtheelectricalconnectionsonthemodule.(Notethepositionof
theconnections).
Removethemodulebyliftingitupwards.
g.7601
83
Insertthenewmoduleandmakesureitisinposition.
Connecttheelectricalconnectionsinthesamewayasbeforeandmounttheplasticcover.
IfbothI/Omoduletype81andI/Omoduletype2istobereplaceditisrecommendedtotthe
modulestogetherbeforemountinginthemachine.
21
3
g.7602
84
Remounttheupperrearpanel.
Connectthepowertothemachine.
