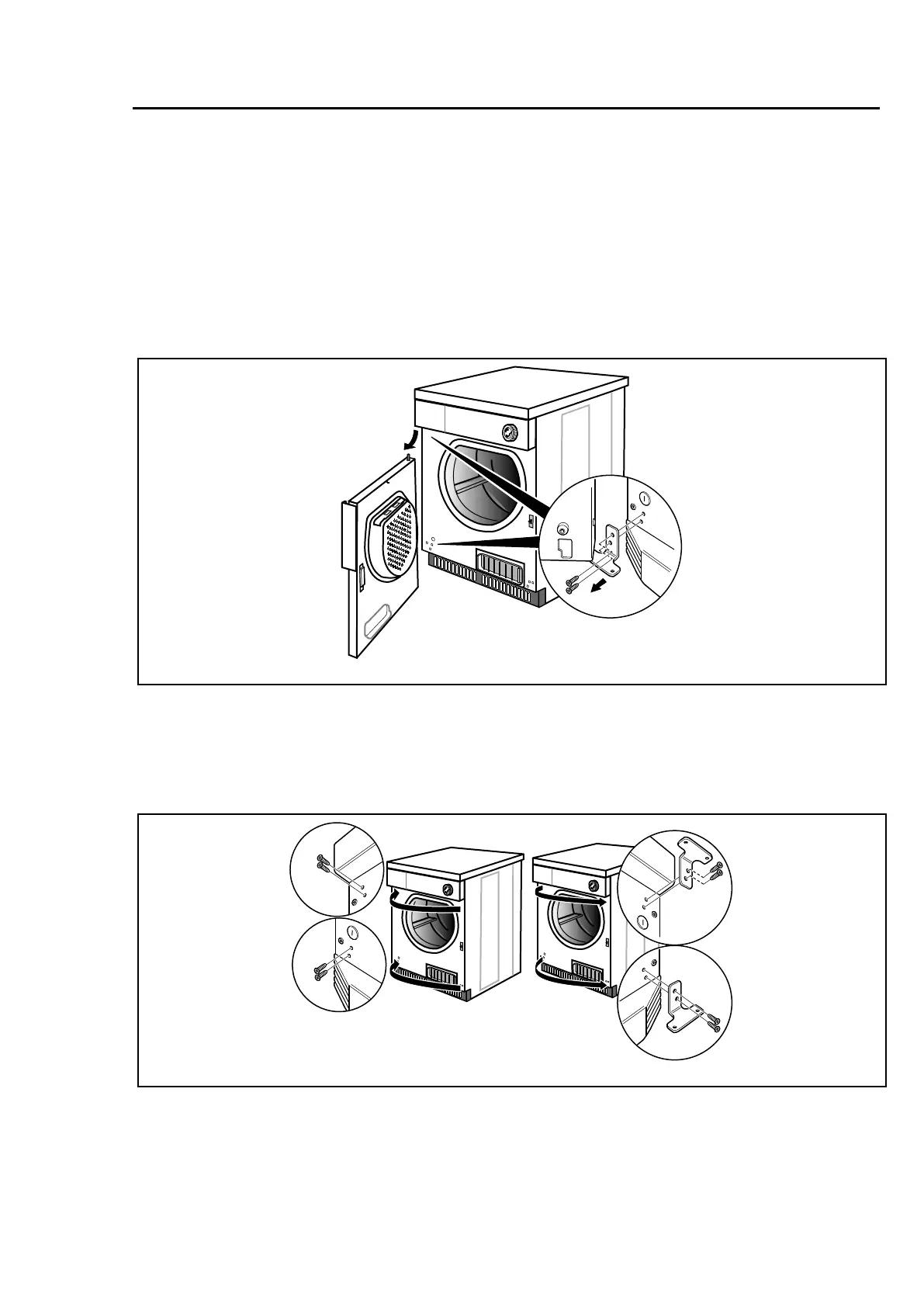

Reversing
the
door
13
5
Reversing
the
door
Disconnect
the
power
to
the
machine.
Demount
the
lower
hinge
and
lift
of
f
the
door
.
Note!
Make
sure
to
hold
the
door
in
position
when
loosening
the
hinge
mounting.
Demount
the
upper
hinge.
g.W00180A
⑥
Demount
the
cover
screws
on
the
other
side
and
mount
them
where
the
hinges
was.
Mount
the
hinges
on
the
other
side
where
the
cover
screws
was.
Mount
the
lower
hinge
soft,
with
one
screw
rst,
in
order
to
make
it
easier
to
place
the
door
back
in
position.
g.W00182A
⑦
