26
Electrical
connection
7.5
Functions
for
I/O-cards
The
electrical
schematic
can
be
one
of
the
following:

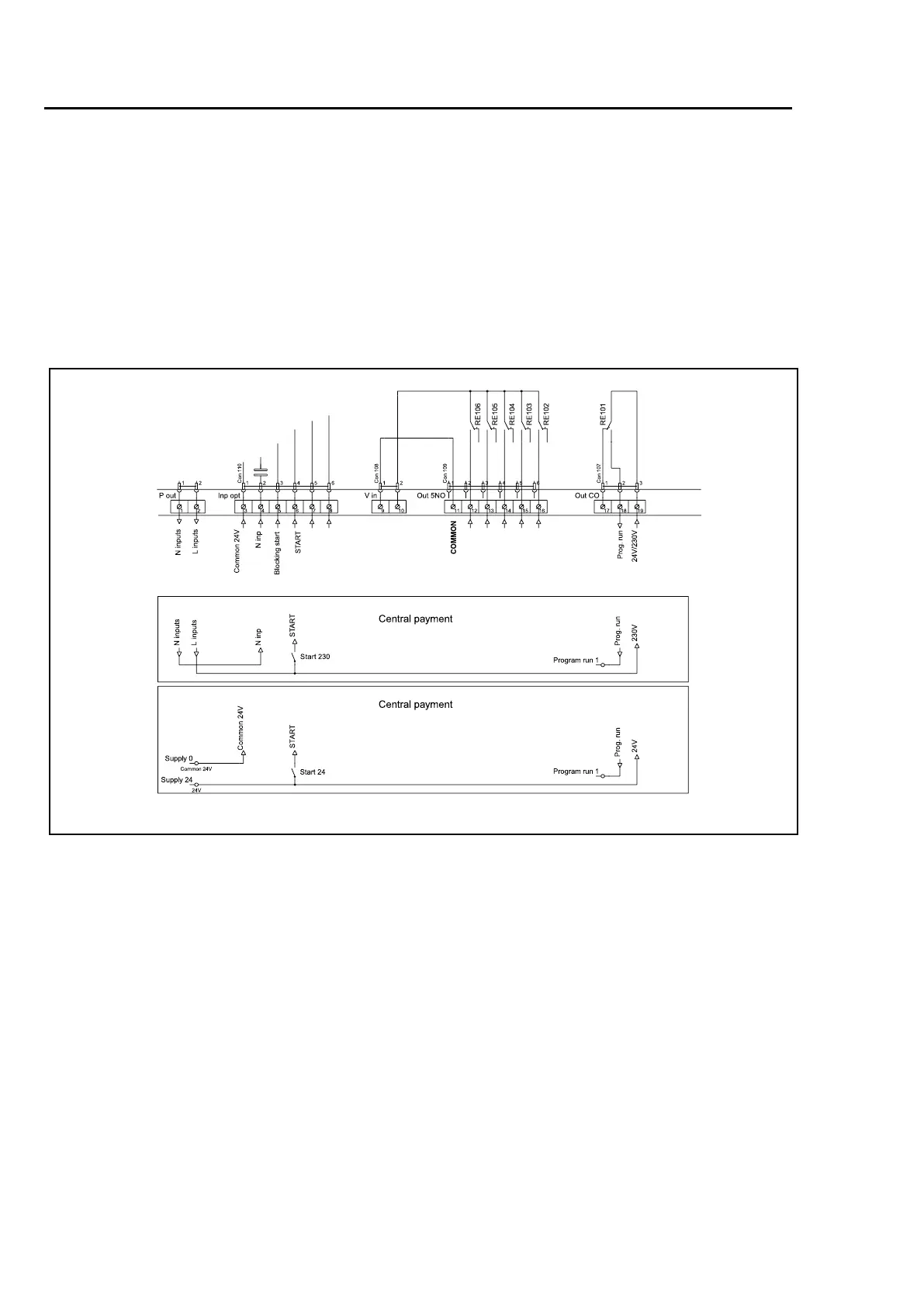

7.5.1
Central
payment
(2J)
T
o
start
the
machine
from
a
central
payment
system,
the
payment
system
must
transmit
a
start
pulse
to
the
machine.
The
start
pulse
can
be
either
230V
or
24V
.
In
order
to
receive
a
feedback
signal
once
the
machine
has
started,
230V
or
24V
must
be
connected
to
connection
19.
The
feedback
signal
on
connection
18
remains
active
(high)
during
the
entire
program.
g.7440
⑮
25
27
Table of Contents
Default Chapter
1
Tumble Dryer
1
Table of Contents
3
1 Safety Precautions
5
2 Technical Data
7
Drawing
7
Technical Data
8
Connections
8
3 Setup
9
Unpacking
9
Siting
9
Mechanical Installation
10
Stacking Frame
10
4 Marine Installation
12
5 Reversing the Door
13
6 Evacuation System
15
Air Principle
15
Fresh Air
17
Exhaust Duct
18
Shared Exhaust Duct
19
Exhaust Dimensioning
20
7 Electrical Connection
21
Electrical Installation
21
Single-Phase Connection
22
Three-Phase Connection
23
Electrical Connections
25
Functions for I/O-Cards
26
Central Payment (2J)
26
Central Payment (2J)
27
External Coin Meter/Central Payment (2K)
28
Price Reduction (2K)
29
External Connection 100 Ma
30
Option
30
8 Function Check
31
