Electrical
connection
27

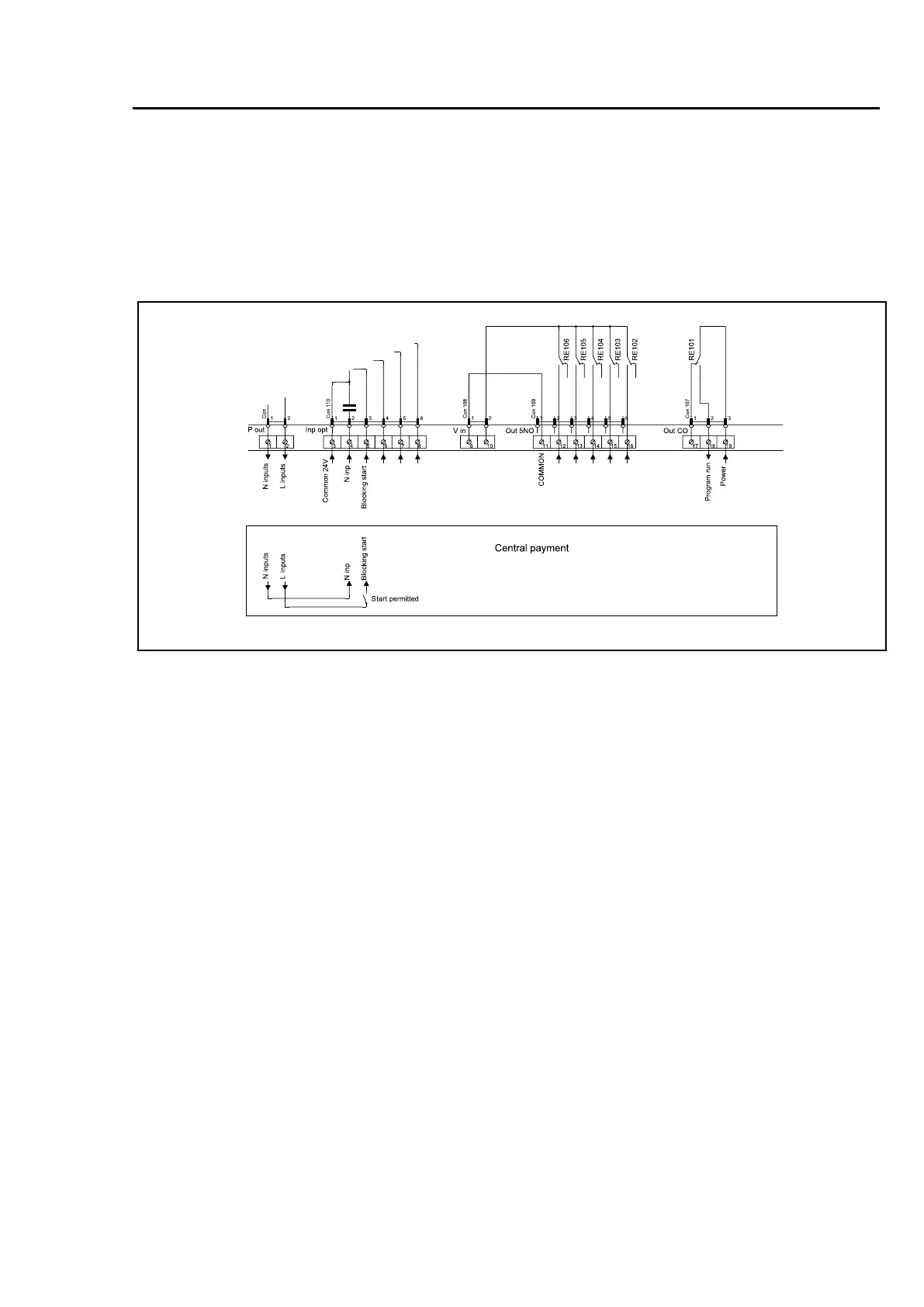

7.5.2
Central
payment
(2J)
The
central
payment
or
booking
system
shall
transmit
an
active
(high)
signal
to
the
machine
once
permission
has
been
granted
to
start
the
machine.
The
signal
must
remain
active
(high)
during
drying.
The
signal
can
be
either
230V
or
24V
.
In
order
to
receive
a
feedback
signal
once
the
machine
has
started,
230V
or
24V
must
be
connected
to
connection
19.
The
feedback
signal
remains
active
(high)
during
the
entire
program.
P
r
o
g
r
a
m
r
u
n
g.7439
⑯
26
28
