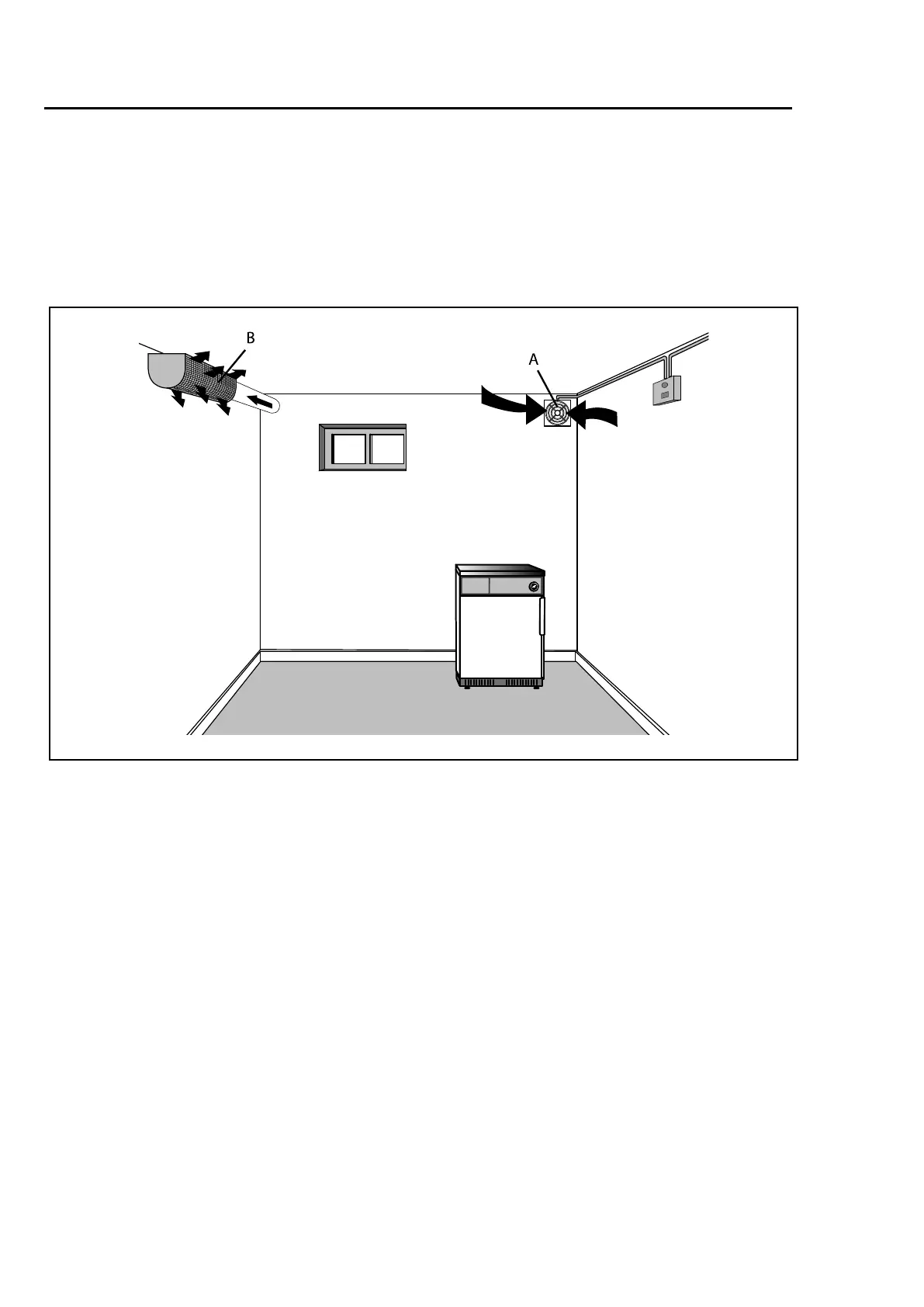

Evacuation
system
During
machine
operation
the
temperature
in
the
room
increases.
This
results
in
need
for
ventilation.
A
ventilation
kit
can
be
ordered;
988
80
20
43.
The
thermostatically
controlled
fan
(A)
is
mounted
on
the
wall
behind
the
machine.
The
thermostat
is
mounted
further
into
the
room.
The
fresh
air
intake
(B)
must
end
in
the
room
in
front
of
the
machine
positioned
diagonally
from
the
fan.
A
B
g.W00192
⑪
The
need
for
fresh
air
varies
and
is
controlled
by
the
thermostat.
