Sensorsandoverheatingthermostats
5.1.2Heatingsensor(PT100)
Description
Theheatingsensorisplacedatthebackofthemachine.
TheheatingsensormeasuresthetemperatureintheinletairandthesignalisreturnedtotheCPU.
TheCPUturnstheheatingunitoffwhentheinletairthermistorindicatesthattherequired
temperaturehasbeenreached.
Replacementofheatingsensor(PT100)
Disconnectthepowertothemachine.
Disconnecttheheatingsensorandremoveit.Connectthenewheatingsensorandputitinposition.
Makesurethesensorgetsallthewaydown.

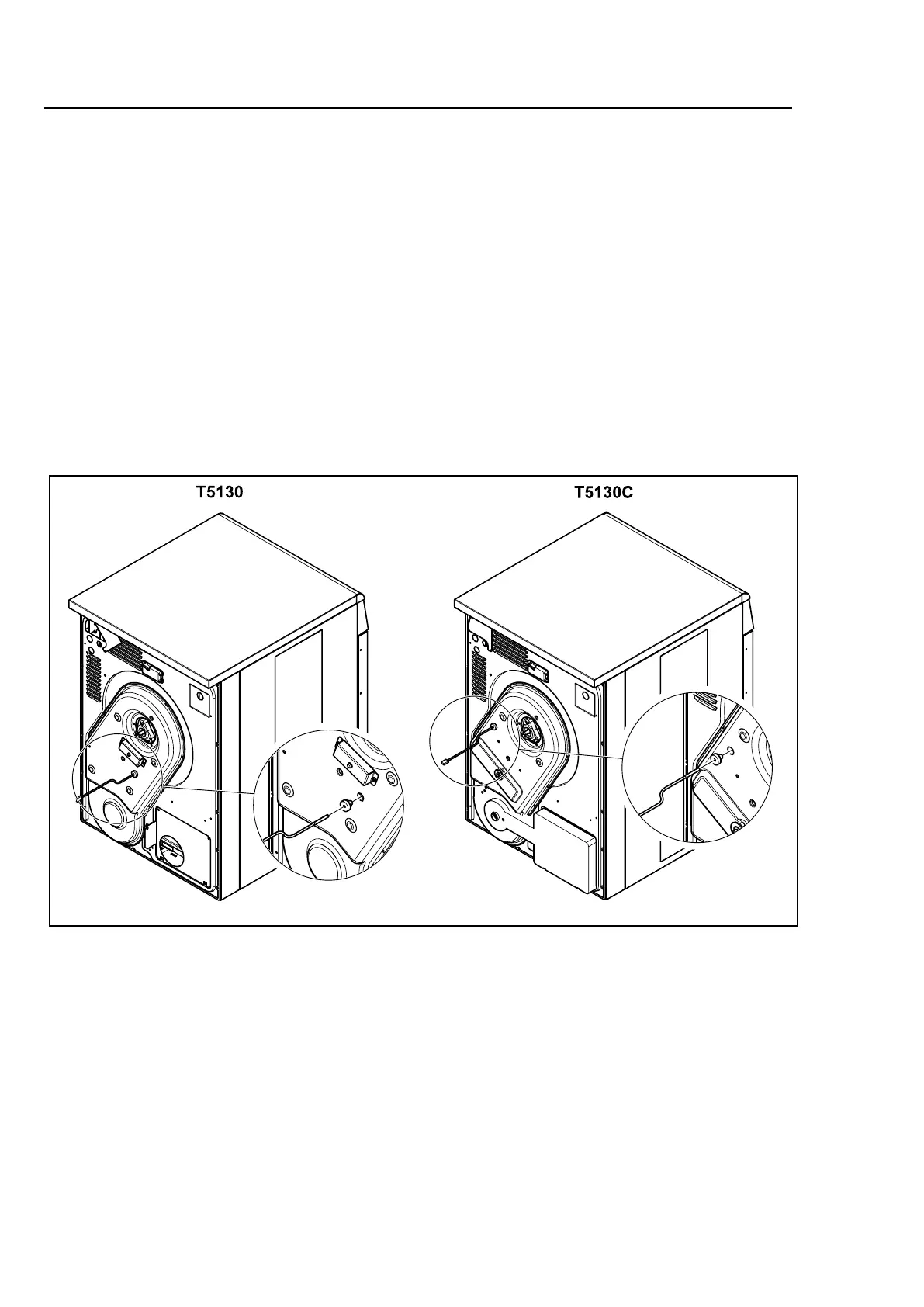

T5130
T5130C
g.7588
