Electrolux T5130C - Central Payment (2 J)

68
I/Omodules

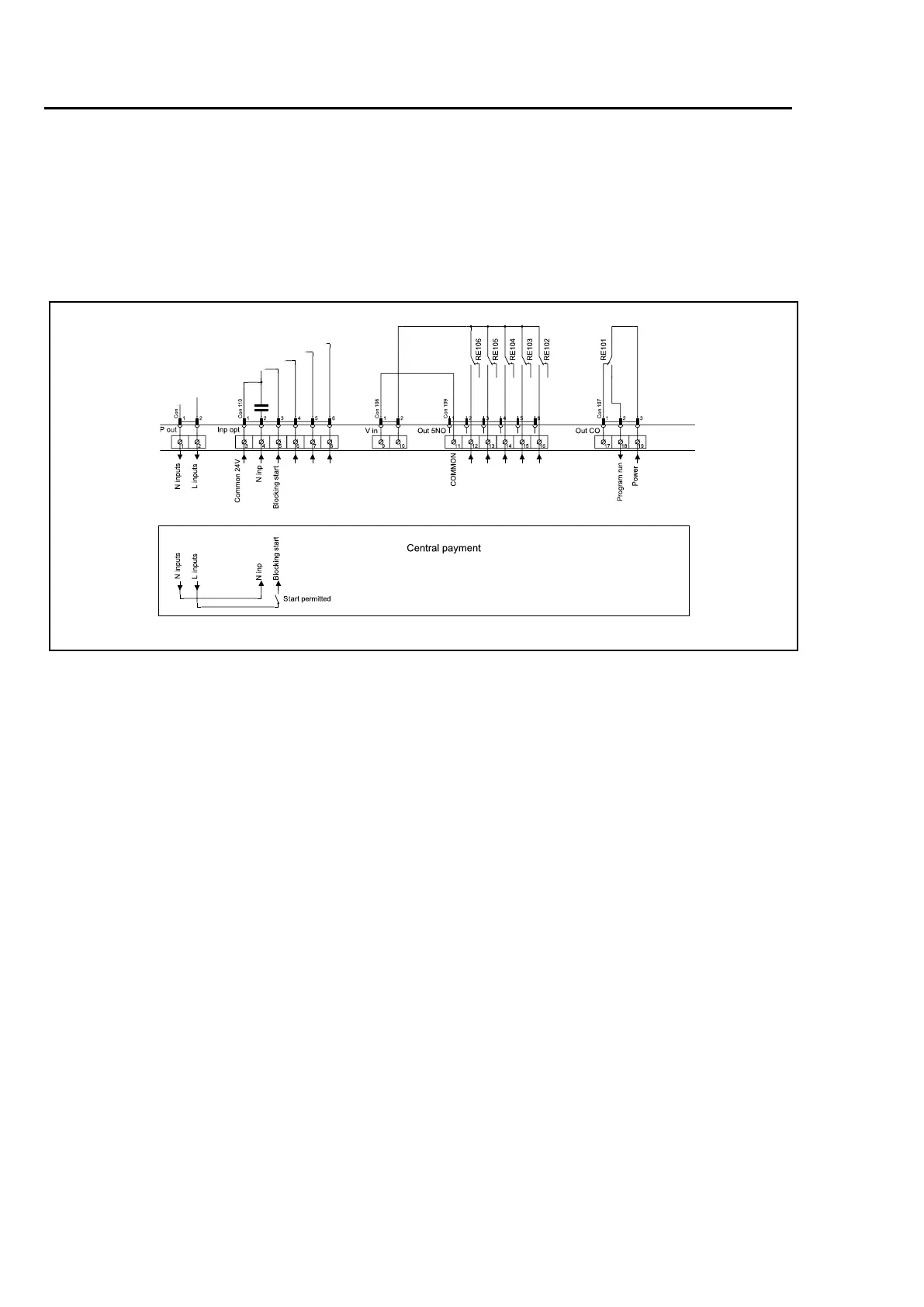

11.4.2Centralpayment(2J)
Thecentralpaymentorbookingsystemshalltransmitanactive(high)signaltothemachineonce
permissionhasbeengrantedtostartthemachine.Thesignalmustremainactive(high)during
drying.Thesignalcanbeeither230Vor24V.Inordertoreceiveafeedbacksignaloncethe
machinehasstarted,230Vor24Vmustbeconnectedtoconnection19.Thefeedbacksignal
remainsactive(high)duringtheentireprogram.
P rogra m run
g.7439
87
