Motor

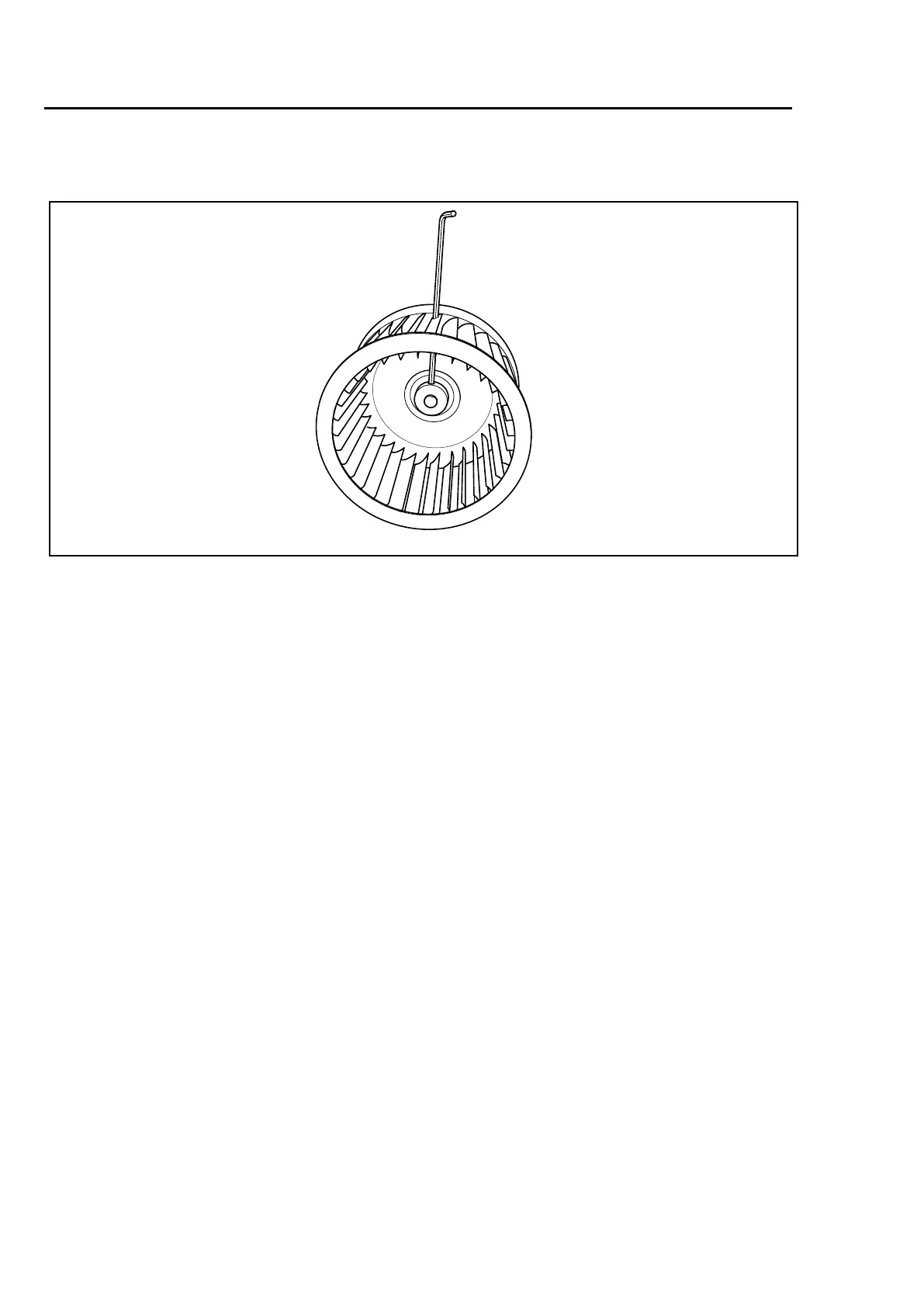

Demountthefanfromthemotorbylooseningthesetscrew.Thesetscrewcanbeaccessed
throughaholeinoneoftheblades.
g.7541
40
Useapullertoremovethefanfromthemotor.
Mountthenewfanonthemotor.Makesuretheaircoverandthepressurespringgetsinposition.
Mountthemotorwithfaninthemachine.
Fastenthefourscrewsunderthemachine.
Carefullyputthenewdrumpackagebackinthemachine.
Fastenthesupportrollersatthefrontofthemachine.
ConnecttheRMCandthe“FREE”connectionifdisconnected.
Connectthewiresandmountthecoverpaneltotheelectricalconnections.
Fastenthefourscrewsatthepanelaroundtheheatingelementandtherestofthescrewson
thepanel.
Fastenthebelt.Rotatethedrumtomakesurethatthebeltisinposition.
Mounttheairchannelpanel.Oncondensemachines:Retthehosebeforemountingtheair
channelpanel.
Connecttheoverheatingthermostatandtheheatingsensor.
Mountthetoppanel,thecoverpanelattheairoutletandthecasingovertherearpanel.
