Electrolux Talkie - BUILD CHARACTERISTICS; Appliance Structure

18
5 BUILD CHARACTERISTICS
5.1 Structure

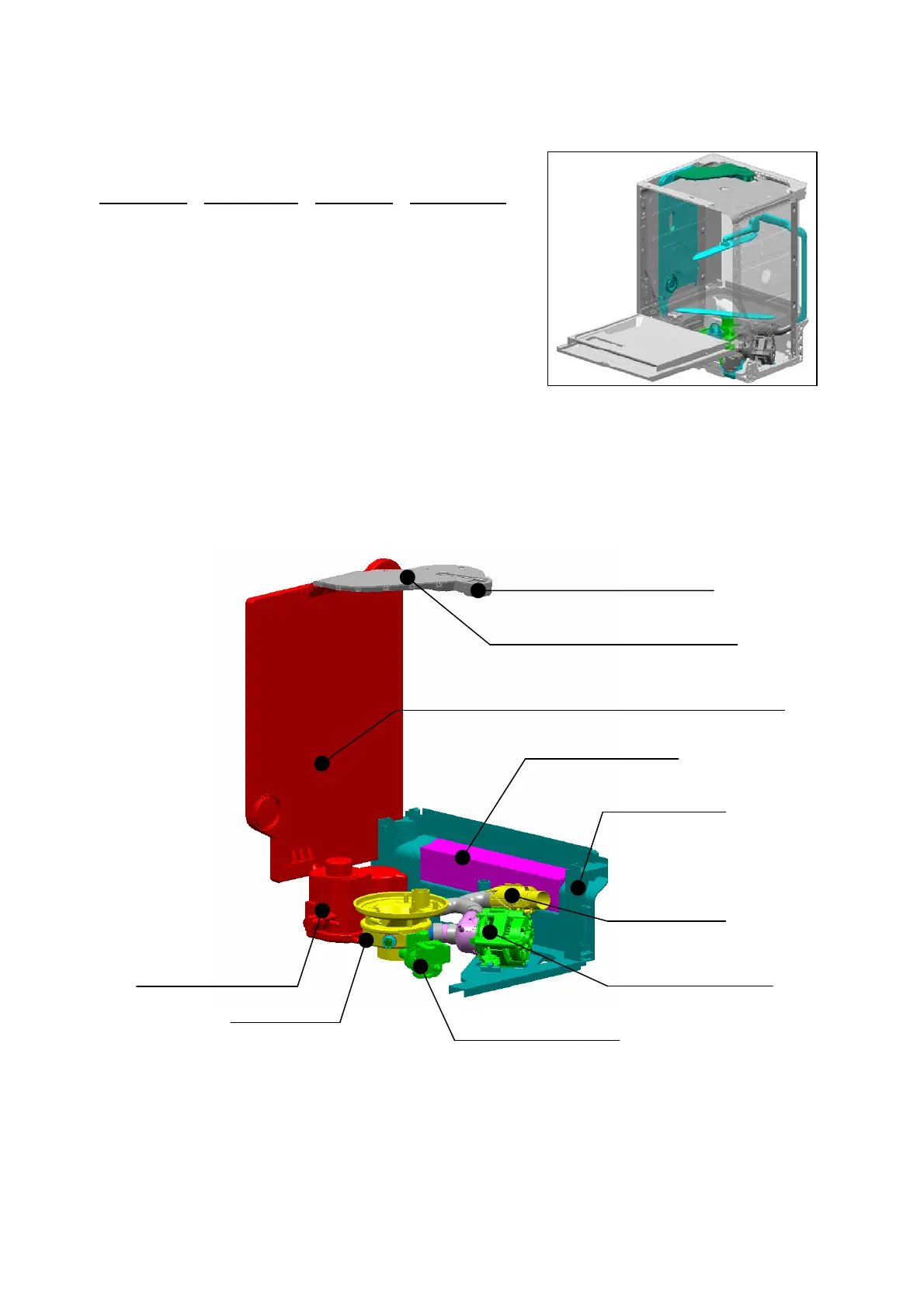

The appliance can be subdivided into four main assemblies:
- BASE AREA – DOOR AREA – TUB AREA – WATER UNIT
The machine is housed in an assembly of individual removable
parts composed of a front panel at the bottom and two side
panels.
Drying duct
Water
softener
Fill tank + Condenser
Drain pump
Wash pump
Heating element
Counterweight
Base
Sump
Turbo Dry Fan
