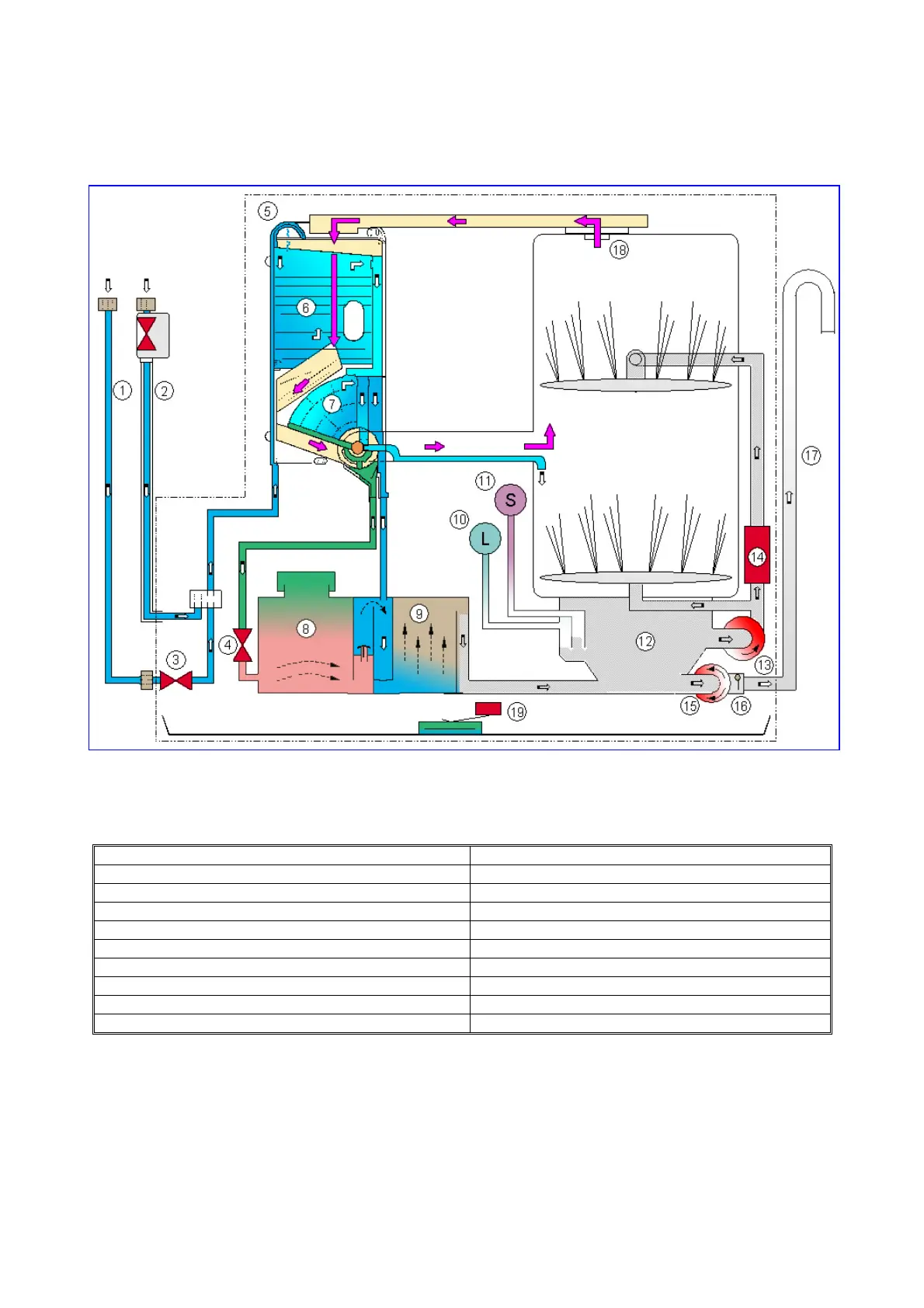

5.2 Hydraulic circuit
LEGEND
1 - Fill hose 11 - Anti-overflow pressure switch
2 - Fill hose with "Acquacontrol" device 12 - Sump assembly
3 - Fill solenoid 13 - Wash pump
4 - Regeneration solenoid 14 -Tube-enclosed heating element
5 - Air break 15 - Drain pump
6 - Steam condenser 16 - Non-return valve
7 - Regeneration chamber 17 - Drain hose
8 - Salt tank 18 - Drying duct/fan
9 - Resin tank 19 - Anti-flooding device
10 - Level pressure switch
