Electrolux W5330N - Chemical Bolts

16
Setup
3.3.2Chemicalbolts
AnalternativetobreakinguptheexistingoororfoundationistousechemicalboltsM16.

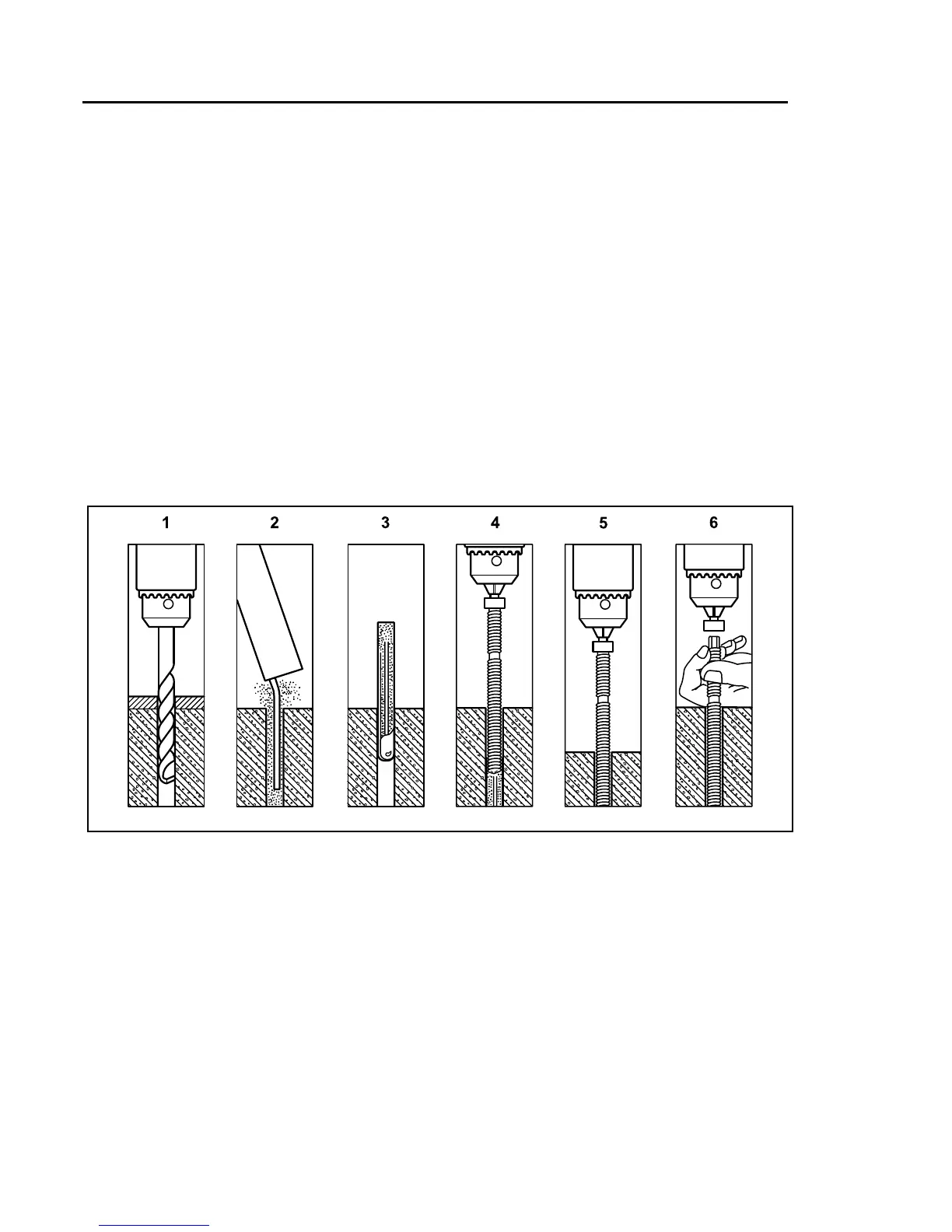

1.Markanddrillfourholes(⌀18mm)125mmdeepforthechemicalbolts.
Checktheprevioustableforthecorrectpositionoftheholes.
2.Cleanthedrilledholes.
3.Putdownthechemicalampuleinthehole.
4.Rotatetheboltintothehole,sothattheglassampuleisbrokenanditscontentsmixed.
5.Rotatethebolttocorrectdepth.
Note!
Donotrotatetheboltagainsttheconcretebottom.Checkthatthechemicalshavelled
theholecompletely.
6.Removethedrillingmachinewiththemountingtool.Holdtheboltwithonehand.Letthebolt
hardenbeforethemachineismounted.
⑦
1 2 3 4
5
6
g.5917A
Timeforhardening,duetodifferentconcretetemperatures:
–10°C:6hours
–5°C:2.5hours
±0°C:1hour
5°C:30minutes
10°C:20minutes
15°C:15minutes
20°C:10minutes
