Electricalconnection
39

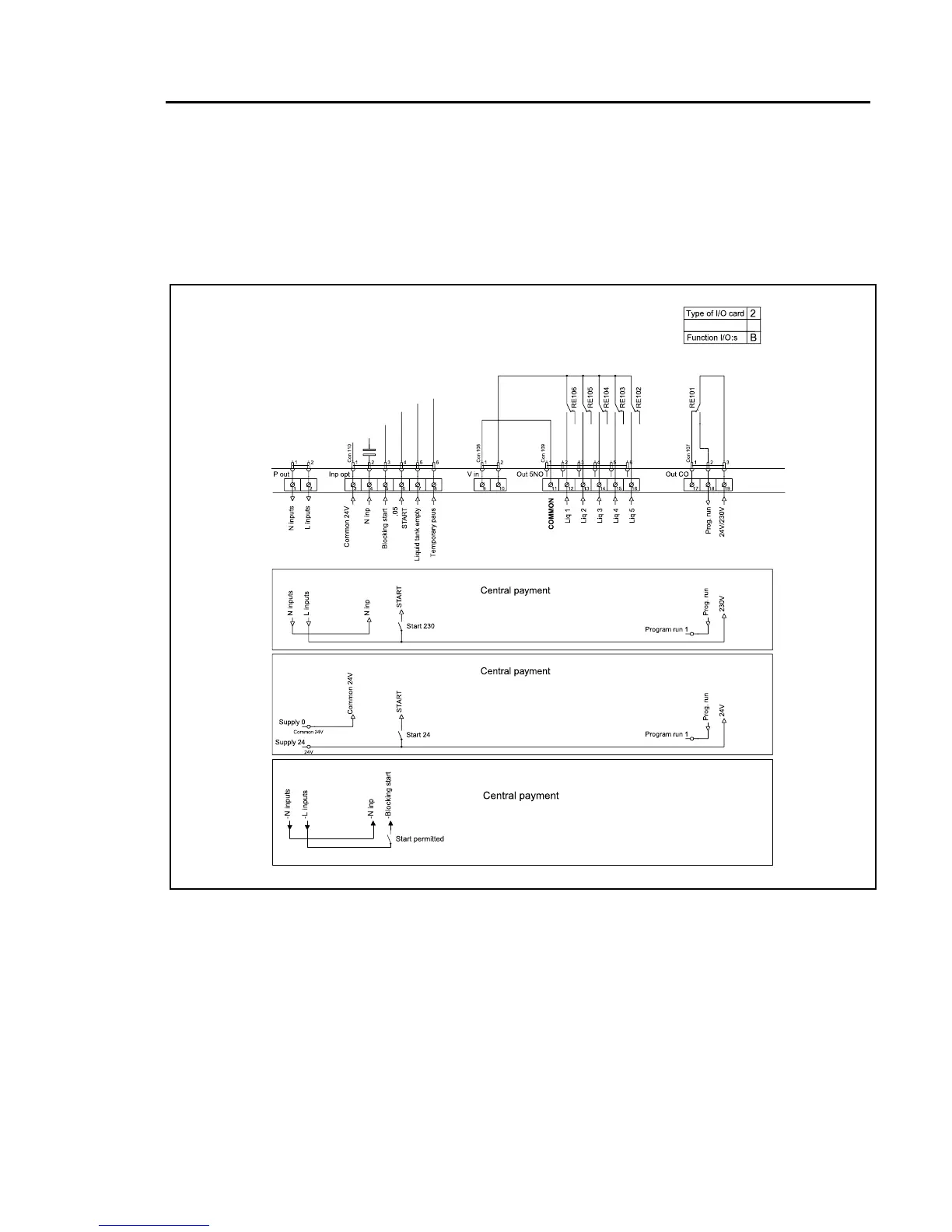

8.4.2Centralpayment(2B)
Tostartthemachinefromacentralpaymentsystem,thepaymentsystemmusttransmitastart
pulsetothemachine.Thestartpulsecanbeeither230Vor24V.Inordertoreceiveafeedback
signaloncethemachinehasstarted,230Vor24Vmustbeconnectedtoconnection19.The
feedbacksignalonconnection18remainsactive(high)duringtheentireprogram.
22
g.6316A
