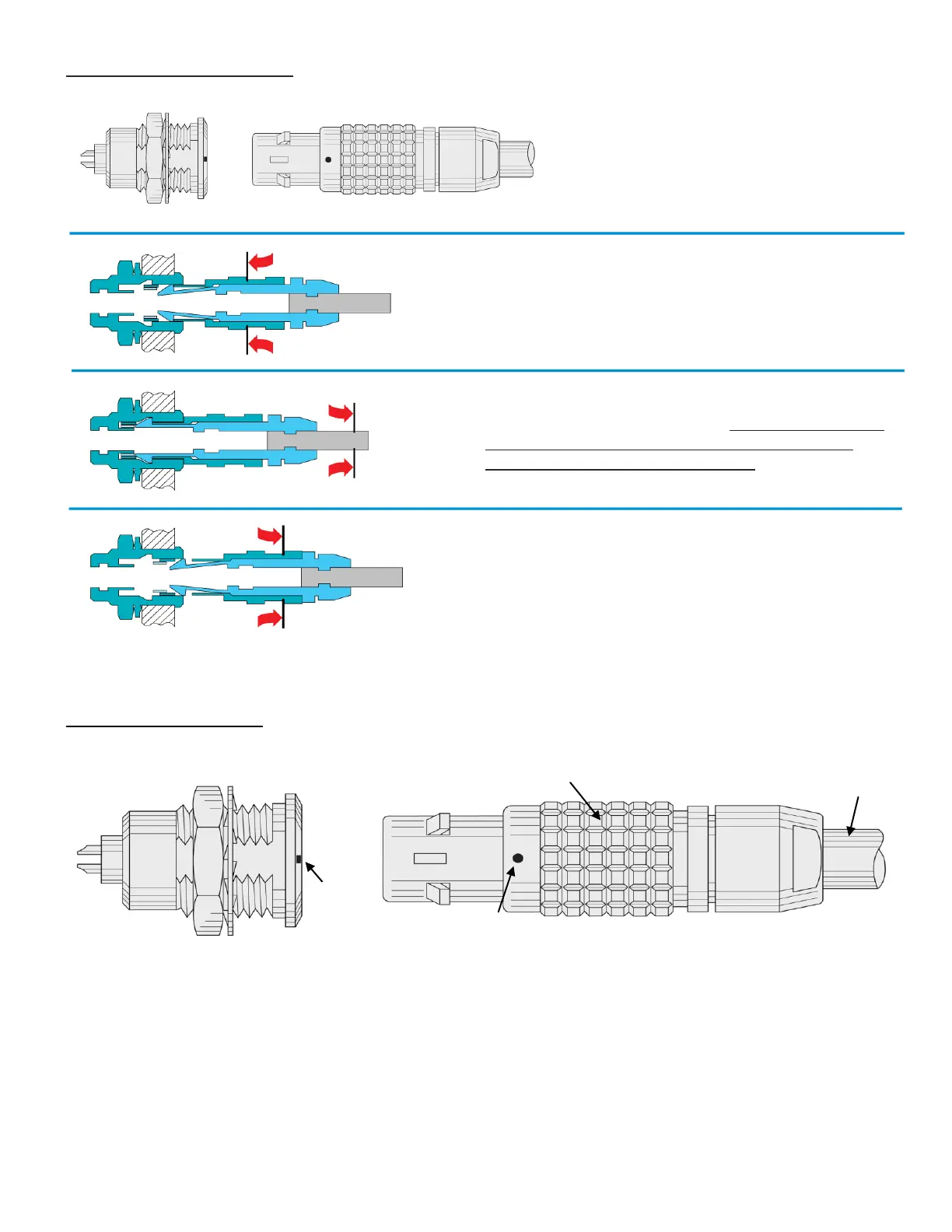

How QUICK-LOK™ Works
To connect/disconnect LEMO connectors (plugs) to/from WellnessPro+, please follow these steps in order to
avoid bending or breaking the connector contacts.
NOTE: Red dot on the connector shell will need to align with the indentation on the receptacle.
WARNING: Do not attempt to disconnect the plug by pulling on the cable or twisting the connector in
any way. Doing so will damage or break the contacts and void the warranty.
Engaging
QUICK-LOK allows the connector to be mated by
simply pushing the plug straight into the receptacle.
Latched
Once firmly latched, connection cannot be broken by
pulling on the cable or any other component part
other than the outer release sleeve.
Disengaging
When required, the connector is disengaged by a
single straight pull on the outer release sleeve.
This first disengages the latches and then withdraws
the plug from the receptacle.
red dot
Indentation
Receptacle
(Side of the WellnessPro+)
Release sleeve (connector shell)
Cable
