Trigger Mode Selection Jumper
The trigger mode selection jumper allows you to select between single and
repeatable triggers. The affect of this jumper setting is to determine when the time
delay begins.

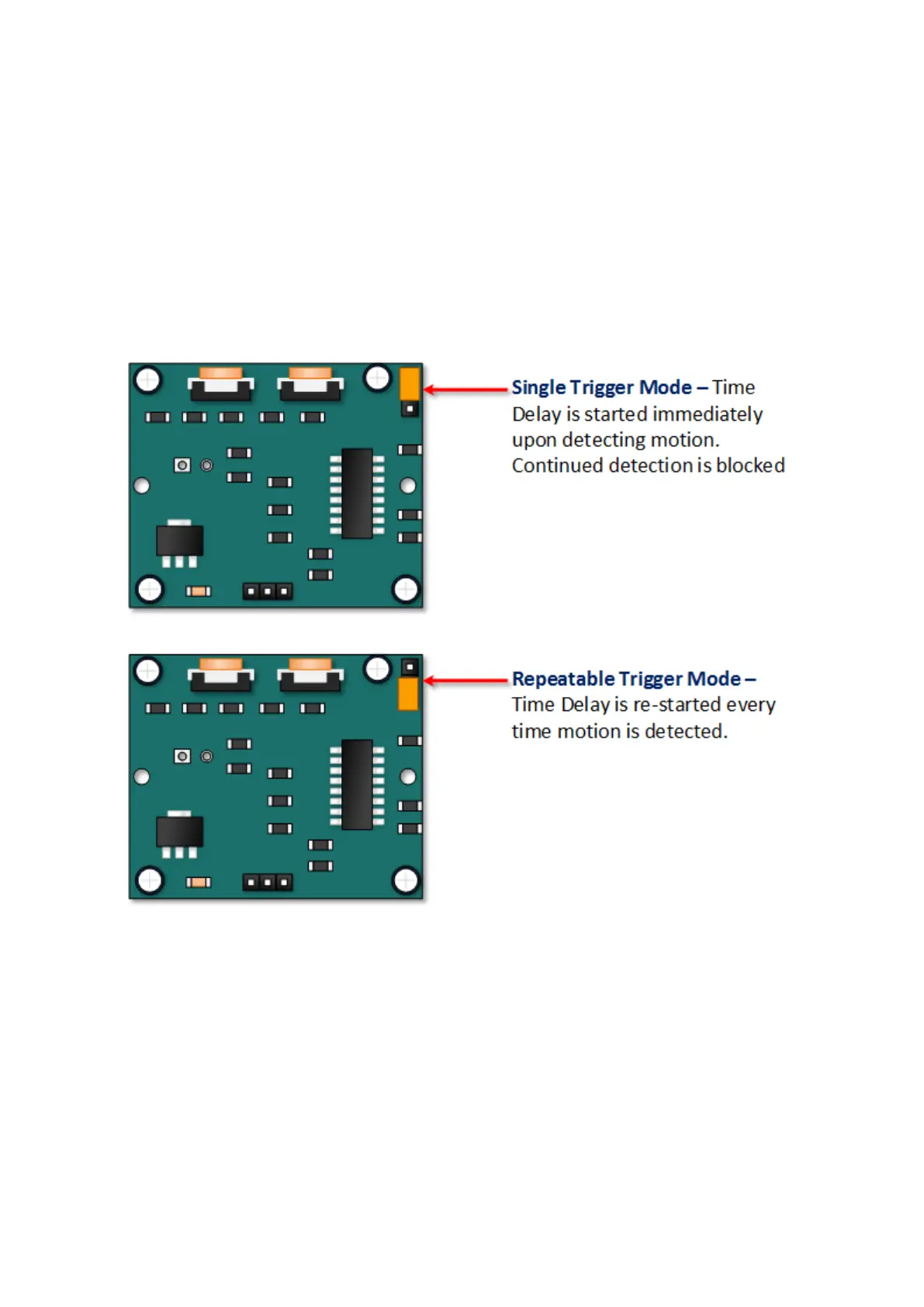

SINGLE TRIGGER – The time delay begins immediately when motion is first detected.
REPEATABLE TRIGGER – Each detected motion resets the time delay. Thus the
time delay begins with the last motion detected.
HC-SR501 Dance Floor Application Examples
Imagine that you want to control lighting on a dance floor based upon where the
dancers are dancing. Understanding how the time delay and trigger mode interact
will be necessary to controlling that lighting in the manner that you want.
