METHOD A:
Use a composite cable to connect the VCR’s composite video/audio jacks to the LCD TV’s
VIDEO2 IN jacks.
METHOD B:
Use an audio cable to connect the VCR’s audio output jacks to the LCD TV’s audio
inputs. Use a S-Video cable to connect the VCR’s s-video output jack to the LCD TV’s
S-VIDEO IN input jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To watch a videotape, press the SOURCE button on the remote to select
VIDEO2( METHOD A), or VIDEO3 (METHOD B).

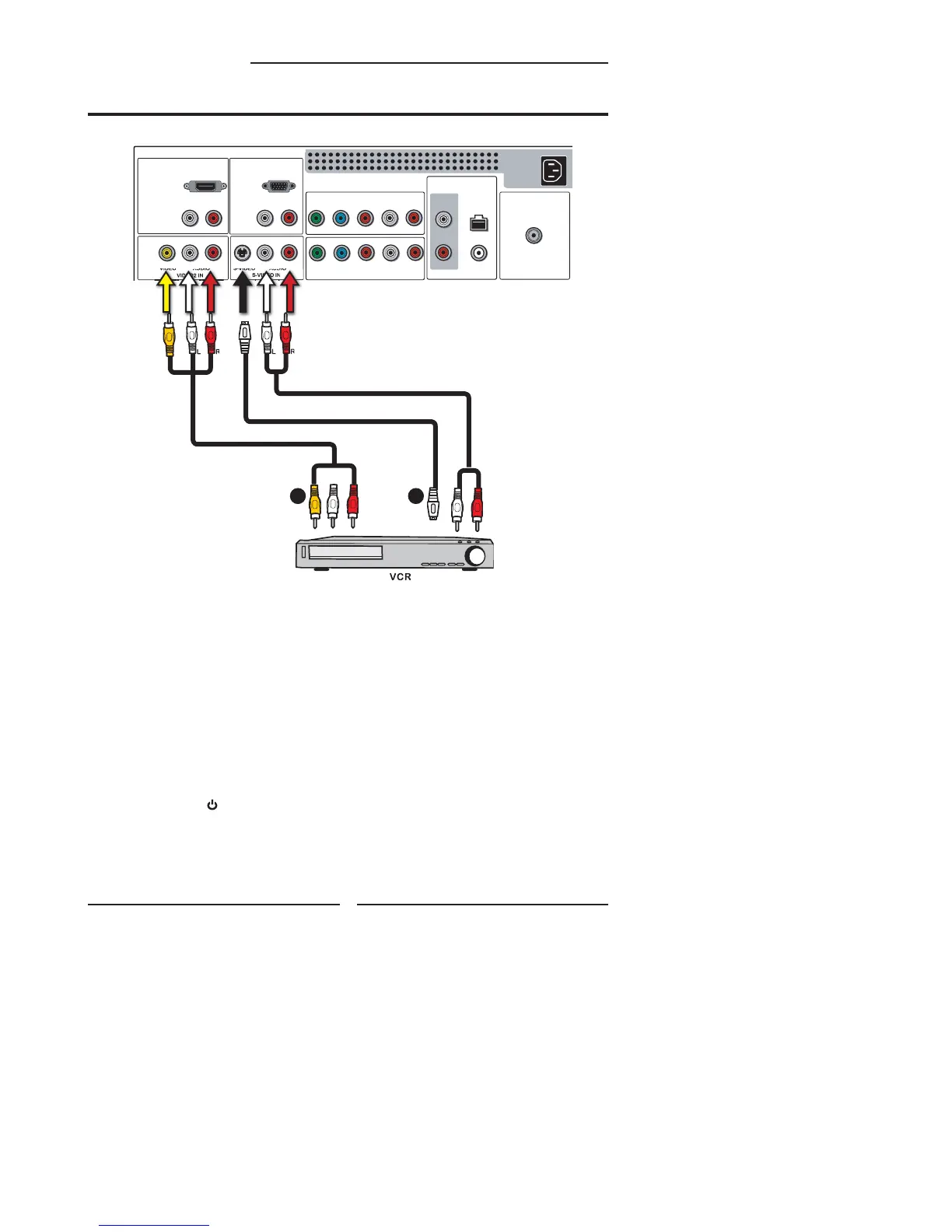

Connecting a VCR
A B
HDMI IN
AUDIO
LR
LR LR
LR
L
R
LR
LR
AUDIO
VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
Air/Cable
VHF/UHF IN
HDTV/TV
YPbPr AUDIO
YPbPr2 IN
YPbPr AUDIO
Rear of TV
AUDIO Cable
S-VIDEO Cable
AV Cable
20
Chapter 2 Installing the LCD TV
