Chapter 2 Installing the LCD TV
Use a component cable to connect the satellite receiver’s/TV Cable Box’s component
(YPbPr1) output jacks to the LCD TV’s component input jacks.
Use an audio cable to connect the satellite receiver’s/TV Cable Box’s component audio
jacks to the LCD TV’s audio input jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To watch programs via satellite receiver or TV Cable Box, press the Input button on the
remote to select VIDEO4/VIDEO5.
Rear of TV
HDMI IN
AUDIO
LR
LR LR
LR
L
R
LR
LR
AUDIO
VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
Air/Cable
VHF/UHF IN
HDTV/TV
YPbPr AUDIO
YPbPr2 IN
YPbPr AUDIO
PrPb
PrPb

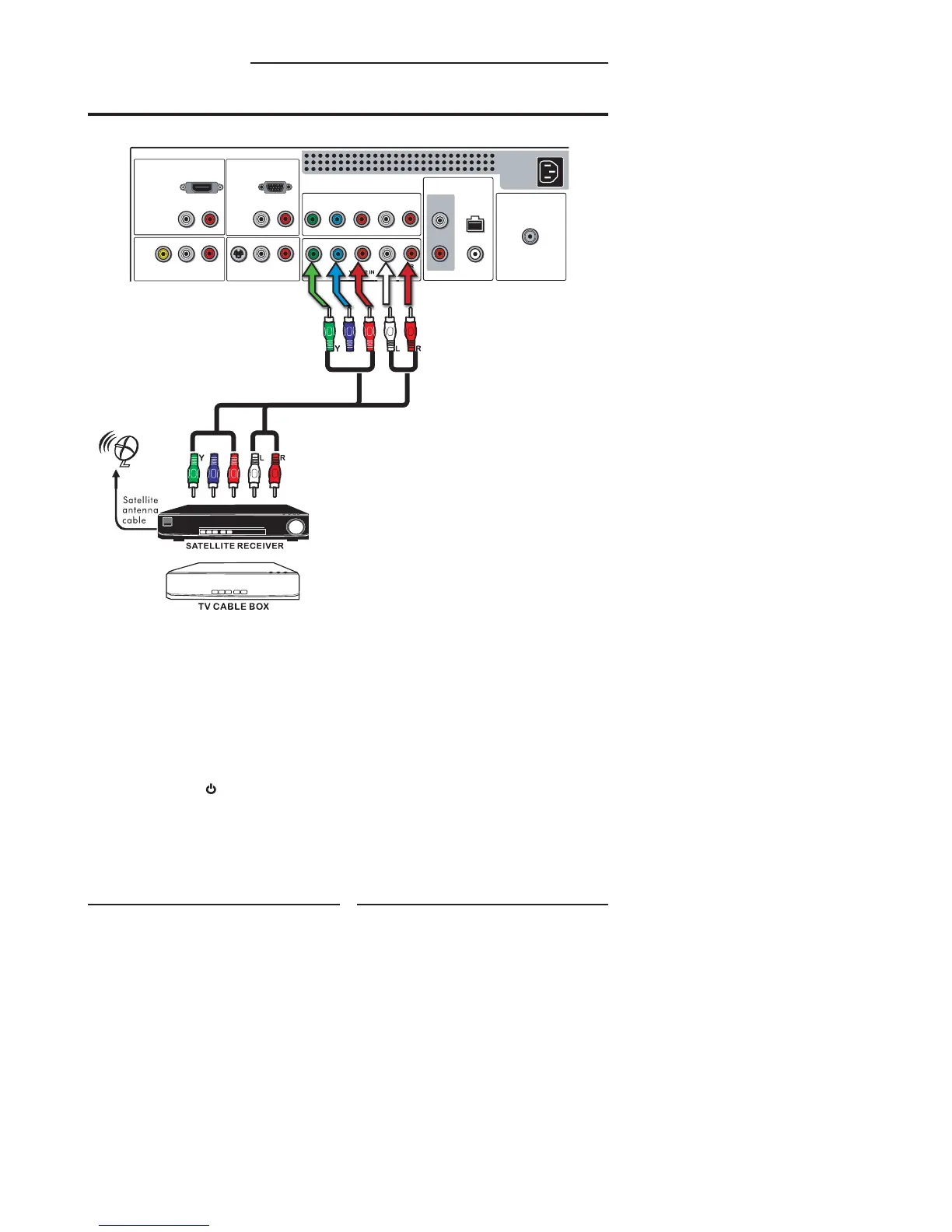

Connecting a Digital TV Cable Box or Digital Satellite Receiver
COMPONENT/AUDIO Cable
