Product description

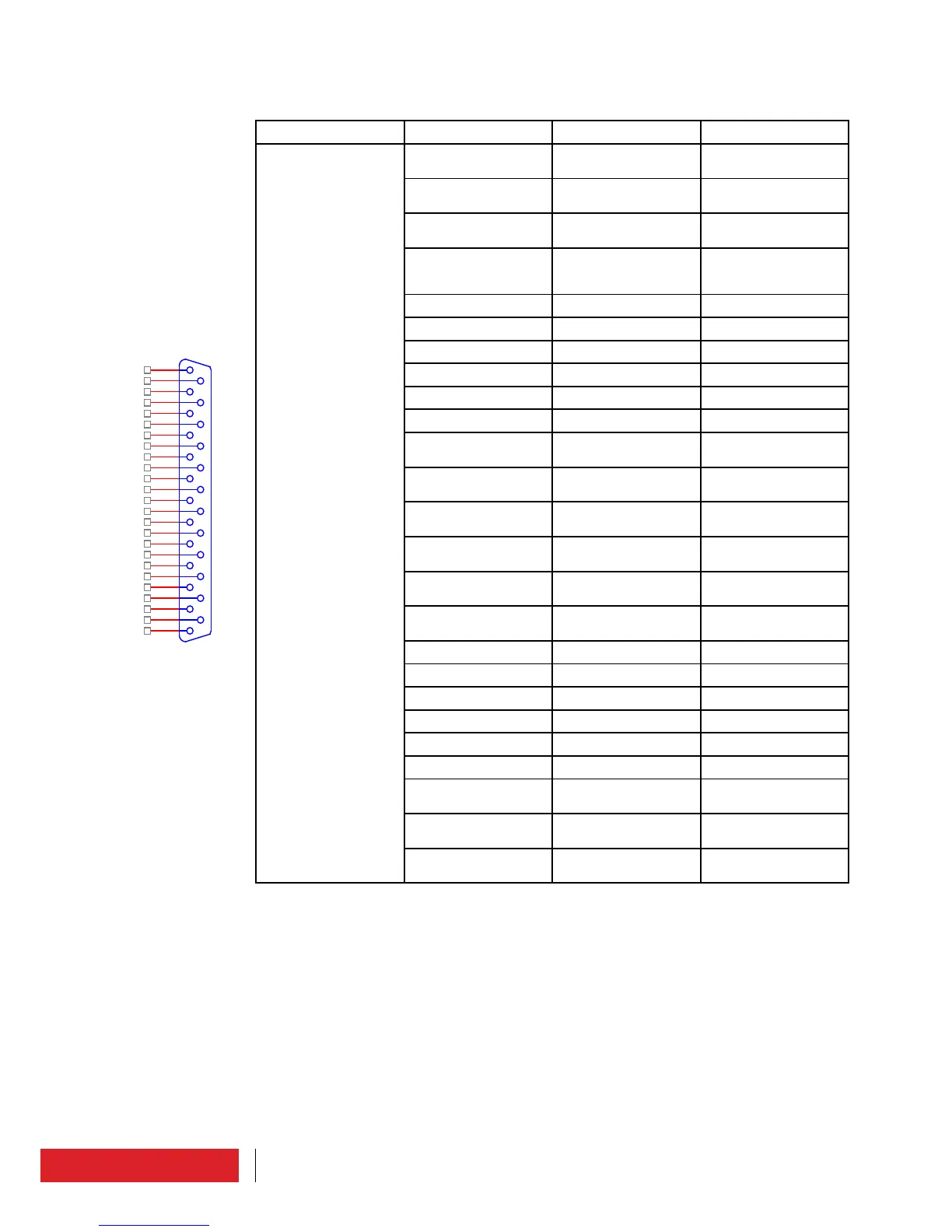

5.4.8 Profiles connector (option)
N° 11 Rear panel (DB25 Female)
Connector Pin Description Note
CN1 on board
TG2U2A899
1 TeleControl input
channel 1 (0V..12V)
Max voltage 0V..24V
2 TeleControl input
channel 3 (0V..12V)
Max voltage 0V..24V
3 TeleControl input
channel 5 (0V..12V)
Max voltage 0V..24V
4 TeleControl input
reserve channel
(0V..12V)
Max voltage 0V..24V
5 Common ground
6 Common ground
7 - No connected
8 Common ground
9 Common ground
10 Common ground
11 TeleSignal output
channel 5 (0V..24V)
Max current 50mA
12 TeleSignal output
channel 3 (0V..24V)
Max current 50mA
13 TeleSignal output
channel 1 (0V..24V)
Max current 50mA
14 TeleControl input
channel 2 (0V..12V)
Max voltage 0V..24V
15 TeleControl input
channel 4 (0V..12V)
Max voltage 0V..24V
16 TeleControl input
channel 6 (0V..12V)
Max voltage 0V..24V
17 - No connected
18 Common ground
19 Common ground
20 Common ground
21 Common ground
22 Common ground
23 TeleSignal output
channel 6 (0V..24V)
Max current 50mA
24 TeleSignal output
channel 4 (0V..24V)
Max current 50mA
25 TeleSignal output
channel 2 (0V..24V)
Max current 50mA
