44 Use instructions
7.1.1 Status and Settings
It’s the main window that appears automatically when you turn on the device in local
mode. In it are displayed and can be modified the operating parameters.
More details are given in “Main parameters setting” paragraph in “How to active” sec-
tion.

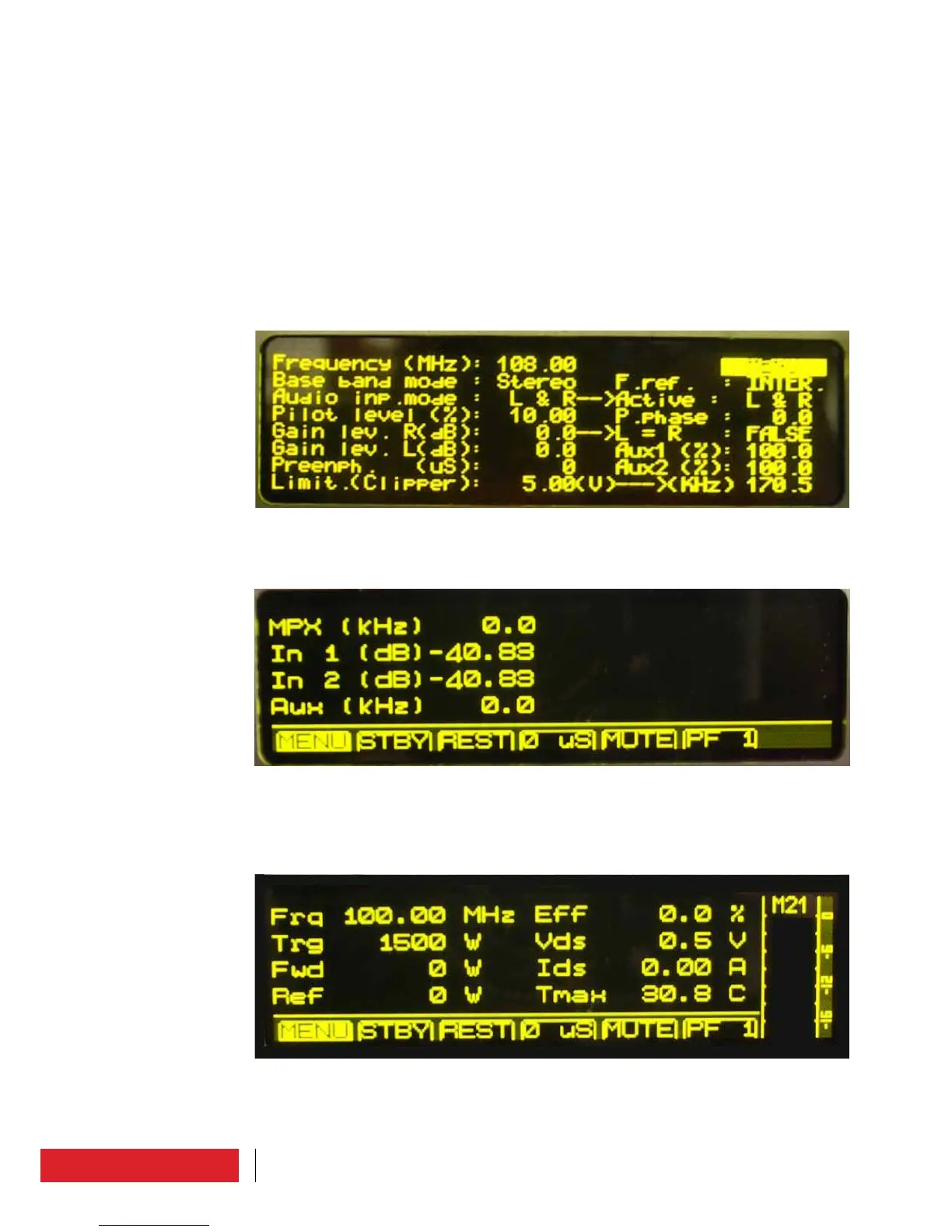

7.1.2 Audio Setting
In this window you can set a range of parameters accessible from other menus, but that
here are grouped together in order to speed up the setting. They are: frequency, type of
input (base band mode), the internal/external reference of the PLL (“F.ref” must be set
as “INTER”), type of audio signal, pilot tone level, pilot tone phase, audio signals level,
auxiliary channels level, pre-emphasis value, clipper.
7.1.3 Audio levels
Here are shown the value of the deviations and the level of input signals. This window
changes, depending on the mode of operation selected (MONO, STEREO, MPX or MUTE).
7.1.4 View and Setting
Here are shown the following parameters: frequency, target power, forward power,
reflected power, efficiency, voltage, current, and temperature. Frequency and target
power can also be set through this window.
7.1.5 Temperatures
Here are displayed the following parameters: environment temperature (measured by
internal sensor of the apparatus, placed on flow of incoming air), temperature of the RF
section (they represent the maximum value measured by sensors positioned on RFMO-
