1. Short description
The dual axes position controller P8822 is the consistent advancement of the proven
88P2.
Substantial characteristics:
• extensive standard functions
• manual inching mode via keypad (with keys 7, 8, 9, NR) for X and Y axis
• switched 2 or 3 speed operation
2. Functions

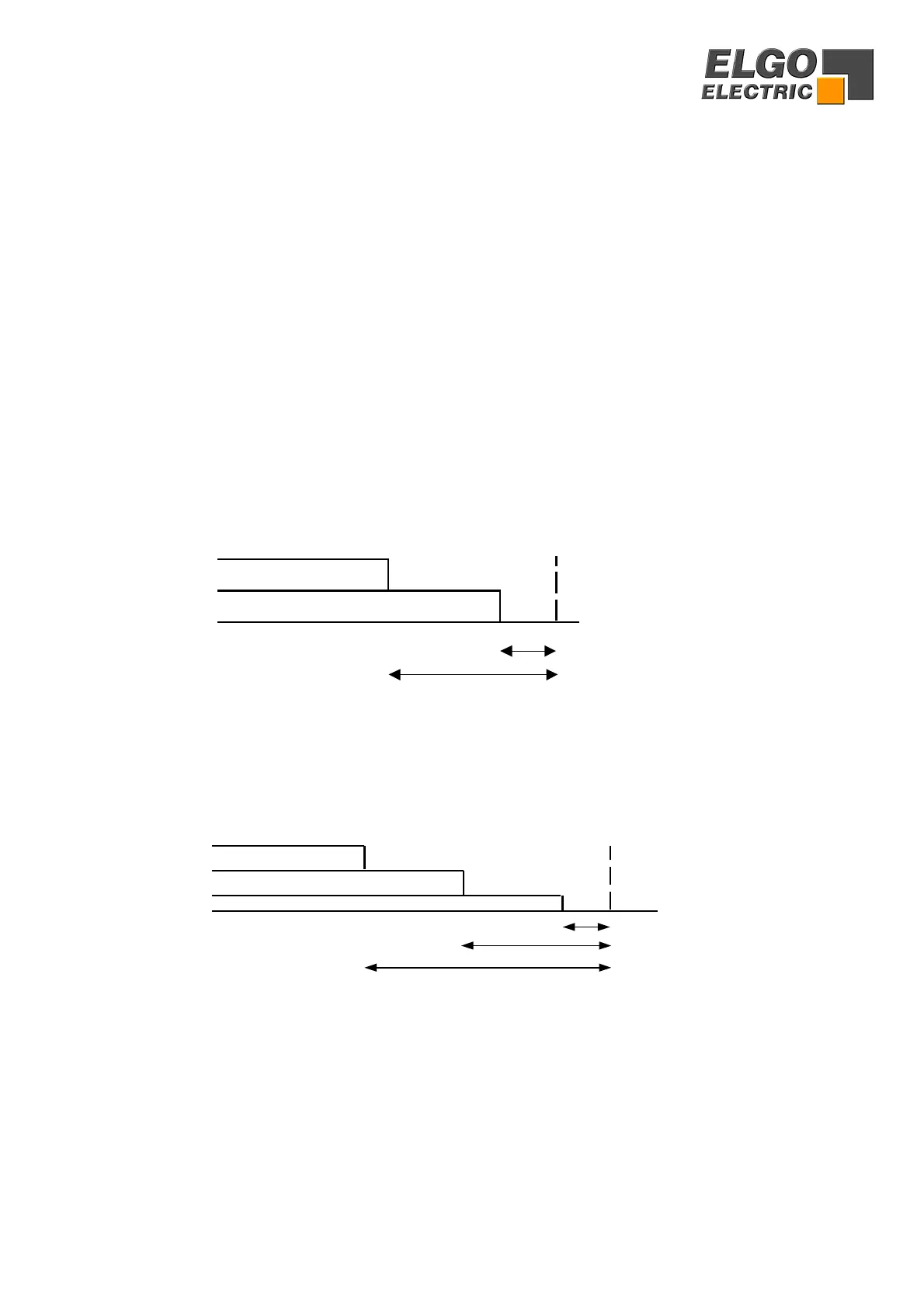

The P8822 controller can be operated with 2 or 3 different speeds
2.1 Two speed operation (switched)
NB: R1 = R2 > R3 Æ The value in Register 1 must be the same value as R2
2.2 Three speed operation (switched)
NB: R1 > R2 > R3 Æ The value in Register 1 must be larger than R2
Notice: The stop offset is only effective when R8 = 1xxxxx.
slow point
Fast (and slow)
creep
tar
g
et position
stop offset
R 3
R 1
tar
g
et position
fast
slow
creep
stop offset
slow point
R 3
R 2
R 1
creep point
