Connect the vent system
Vented Installations
1 Connect the vent system to the range hood vent opening.
Seal the connection with clamps.
Non-Vented (recirculating) Installations
1 Connect the vent system to the range hood vent opening.
Seal the connection with clamps.
2 Install charcoal filters.
See the “Available accesories” section.
Complete installation
1 Replace grease filters. See the “Maintenance” section.
I WARNING
ELECTRICAL SHOCK HAZARD
I WARNING
PLUG INTO A GROUNDED 3 PRONG OUTLET.
DO NOT REMOVE GROUND PRONG.
DO NOT USE AN ADAPTER.
DO NOT USE AN EXTENSION CORD.
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT
IN DEATH, FIRE, OR ELECTRICAL SHOCK.
2 Plug 3-prong power cord into a grounded 3-prong outlet
located inside the cabinet above the range hood.
3 Check the operation of the range hood fan and light.
See “Description of the hood” section. If range hood does
not operate, check to see whether a circuit breaker has
tripped or a household fuse has blown. Disconnect power
and check wiring connections.
NOTE: To get the most efficient use from your new range
hood, read the “Description of the hood” section.
Description of the hood
The range hood is designed to remove smoke, cooking vapors
and odors from the cooktop area. For best results, start the
hood before cooking and allow it to operate several minutes
after the cooking is complete to clear all smoke and odors
from the kitchen.
The hood controls are located on the center of the front of
the range hood liner.

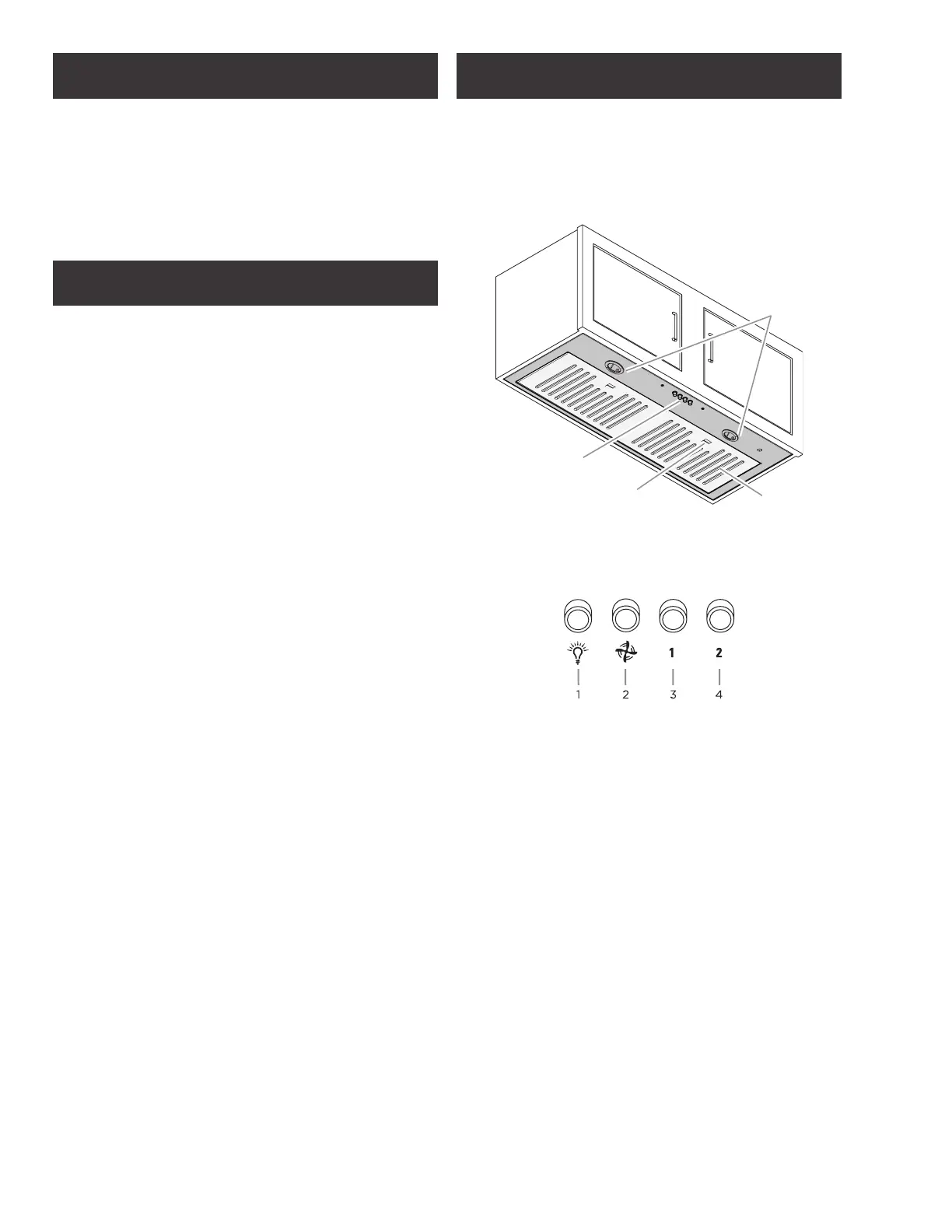

A
B
C
D
A. Blower and light controls
B. Grease filter handle
C. Grease filter
D. LED lamps
Controls
1. On/O light button
2. Blower o and speed minimum button
3. Blower speed medium button
4. Blower speed maximum button
Operating the Light
The On/Off light button controls all lights. Press once for On
and again for Off.
Operating the Blower
The BLOWER SPEED buttons turn the blower on and control
the blower speed and sound level for quiet operation.
The speed can be changed anytime during fan operation by
pressing the desired blower speed button.
Press the BLOWER OFF button a second time to turn off the
blower.

ELICA EPR628S1 Specifications

General

Style	standard hood
Color	stainless steel
Hood Type	under cabinet
Venting Type	convertible
Blower Type	internal
Number of Fan Speeds	3
CFM	600 cfm
Duct Size	6 inch
Filters	baffle
Sones	6.8
Control Type	stainless steel push buttons
Interior Light	led
Wi-Fi	no
Electrical Requirements	120v-60hz, 455 w
Voltage	120 volts
Current	15

Weight and Dimensions

Depth	10 3/4 inch
Height	14 9/16 inch
Width	28 1/4 inch
