9

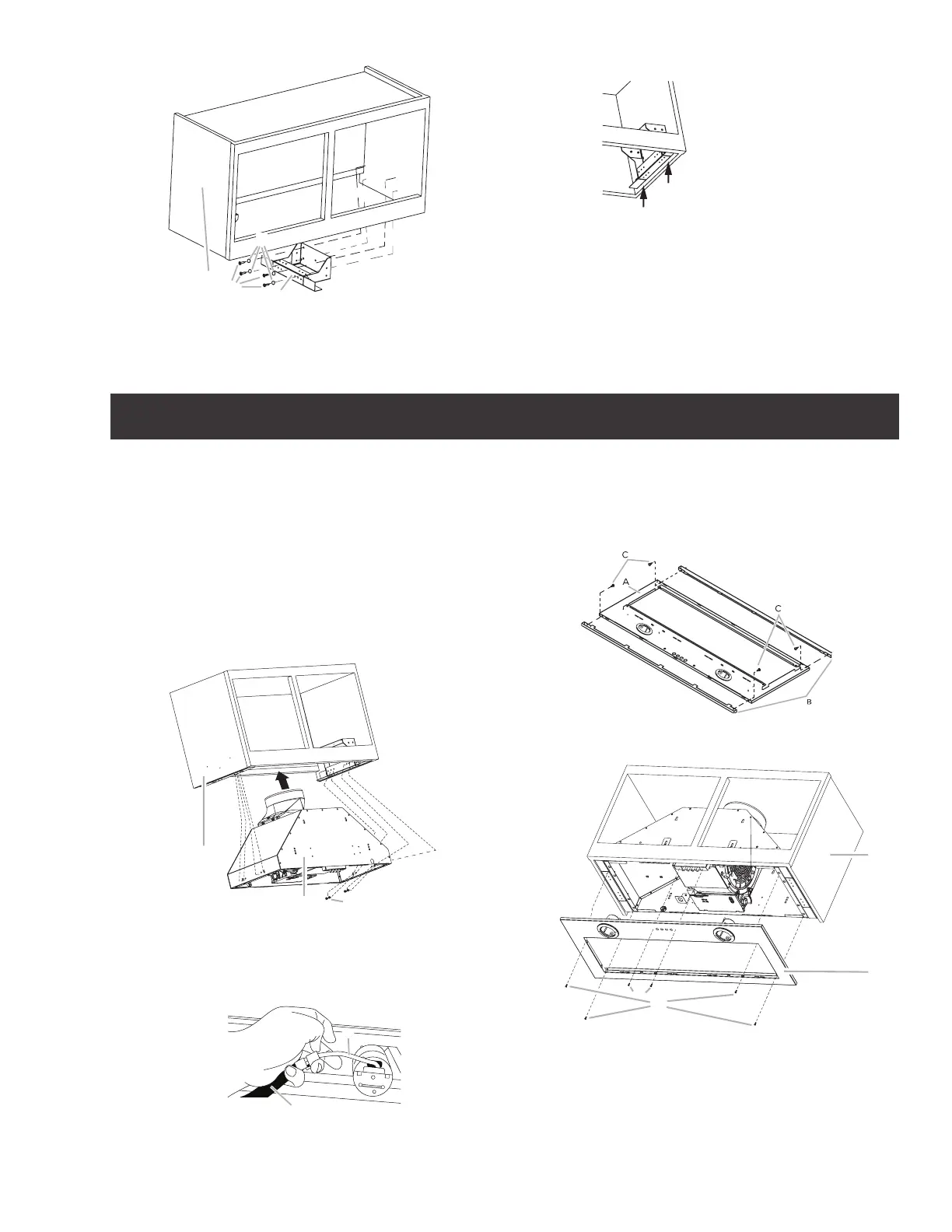

Bracket Orientation for 30” (76.2 cm) Cabinet
A
B
C
D
A. 30” (76.2 cm) cabinet
B. Screws - 4.5 x 13 mm (8)
C. Washers (optional)
D. Mounting bracket (2) (position for 30” [76.2 cm
cabinet)
Move the bracket
6
⁄16” (1 cm) from
the bottom side of the cabinet
5 Install the vent system according to the method needed.
Use caulking to seal the exterior wall or roof opening.
Install range hood
I WARNING
EXCESSIVE WEIGHT HAZARD.
USE TWO OR MORE PEOPLE TO MOVE AND INSTALL
RANGE HOOD.FAILURE TO DO SO CAN RESULT IN BACK OR
OTHER INJURY.
1 Using 2 or more people, lift the hood liner into its mounted
location. Attach with four 4.2 x 19 mm screws into the
slotted openings. Do not tighten screws.
2 Center the canopy in the cabinet. Align the bottom of the
canopy with the bottom of the cabinet. Install four 4.2 x 19 mm
screws into the hood canopy assembly and tighten all (8)
mounting screws.
A
B
C
A. Cabinet
B. Hood liner canopy assembly
C. Screws - 4.2 x 19 mm (8)
3 Remove the metal grease filters from the face panel.
4 Connect the lamps connector to the connector present
inside the hood as shown in drawing.
A
B
A. Lamp connector
B. Hood connector
5 Attach the face plate to the hood insert. Tighten to secure.
NOTE: If cabinet depth is greater than 12”, it is recommended
that the two
1
⁄2” metal spacers are installed.
Install to front and rear sides of the face plate with 3.5 x 9.5 mm
screws as shown in drawing.
A. Face Panel
B. Front and rear spacer
C. Screws - 3.5 x 9.5 mm (4)
B
C
D
A
A. Screws - 3.5 x 9.5 mm flat-head (4)
B. Face plate (30” x 12”[76.2 cm x 30.5 cm] shown)
C. Cabinet (30” x 12” [76.2 cm x 30.5 cm] shown)
D. Screws - 4.2 x 15 mm truss-head (2)
