• where the meter installation spot is difficult to reach.
To eliminate the risk of electromagnetic interference acting on the connecting cable, the transmitter
should be as close as possible to the meter sensor.
Remote meter version including a sensor of protection class IP67
The meter sensor is supplied including a signal cable of the length specified by the customer. During
the on-site meter installation, the cable shall be brought to the transmitter connection box and connected
to the transmitter terminals.

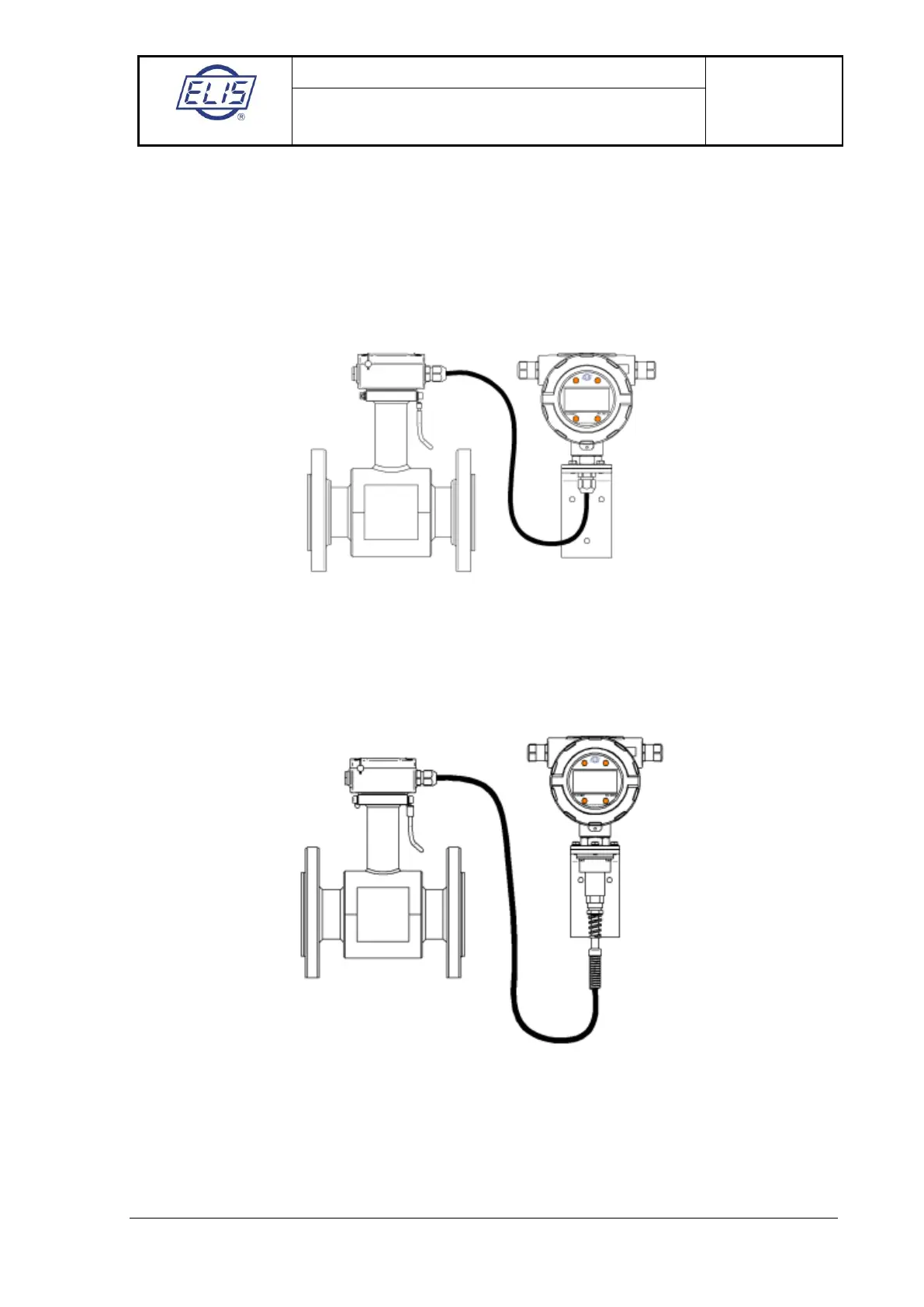

Remote meter version IP 67 sensor
Remote meter version including a sensor of protection class IP68
The signal cable end to be connected to the meter transmitter is provided with a connector. The
matching connector is on the transmitter housing. The other cable end is brought to the sensor
connection box where it is permanently connected to the electrical circuits of the sensor and the box is
subsequently filled with hermetic insulating compound.
Remote meter version IP 68 sensor
Meter installation in the fluid piping:
• Flanged meter version
• Wafer meter version (sensor to be fitted between two flanges)
