Elis FLONET FH30 Series User Manual


Project design, installation and service manual
Page 12 of 72
Electromagnetic flowmeter FLONET FH30xx
ELIS PLZE a. s., 425/15, , Czech Republic, phone.: +420 377 517 711, fax: +420 377 517 722 Es 90678K

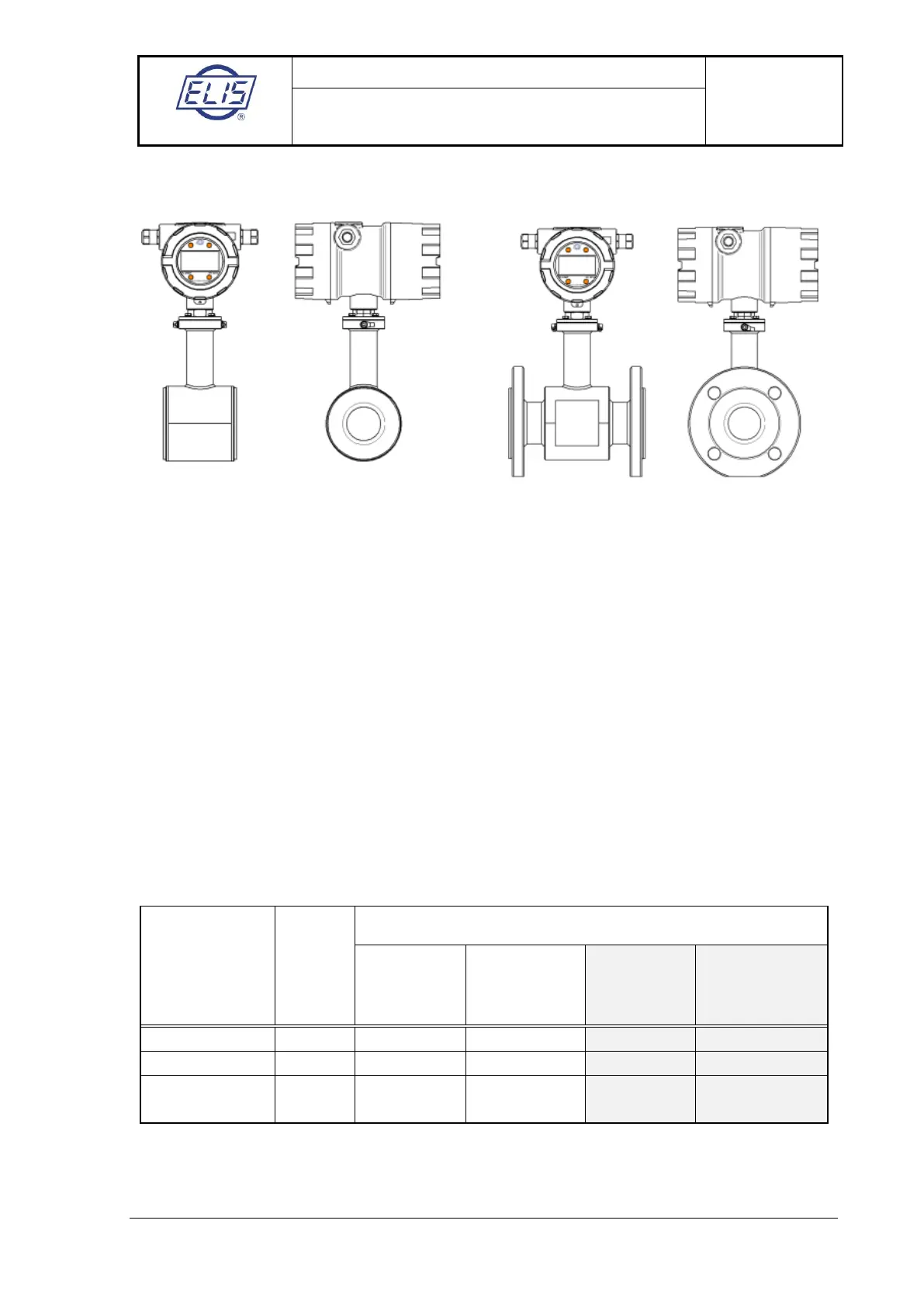

Compact Wafer meter version Compact flanged meter version
3.2 Operating pressure of the measured fluid
As electromagnetic flowmeters have been designed for the maximum permitted operating pressure
PS in excess of 0.5 bar, they are, in reference to the Directive of the European Parliament and
Council No 97/23/ES considered pressure equipment and as such assigned to pressure equipment
categories 0 (SEP*), I, II or III.
Comment: * Sound Established Procedure
To select the correct rated pressure of the sensor flanges, the following parameters should be
considered:
• Maximum operating pressure of the measured fluid, PS;
• Rated inner diameter (DN) of the connected piping;
• Maximum temperature of the measured fluid, TS.
Standard sensor design
Operating pressure of flanged sensors according to standard EN 1092-1; material: carbon steel
Rated sensor size
DN
Rated
sensor
pressure
PN
Maximum permitted pressure PS (bar)
for maximum permitted temperature TS
max
*
TS
max
= 80°C
(sensor lining
materials
HR, SR, SPR)
TS
max
= 110°C
(lining PTFE,
E-CTFE)**
TS
max
= 120°C
(lining
E-CTFE)**
TS
max
= 150°C
(lining PTFE)**
DN15 to DN50
PN40
38.3
36.7
-
35.2
DN65 to DN200
PN16
15.3
14.6
-
14
DN250 to DN700
PN10
9.5
9.1
9.0
8.8
DN800 to DN1200
PN6
5.5
5.4
-
5.2
Comments: * applicable to flanges made of materials of class 3E0 according to EN1092-1, such as steel
P245GH or P265GH
** available on special request for sensor sizes in excess of DN300
