Black backing for AcousticPro models
This procedure only applies to AcousticPro models. Disregard this section if your Fixed Frame does not
include an acoustically transparent screen material. The purpose of the black backing material is to block
out any light penetration that may reflect off of anything mounted behind the screen, which can cause
distortion to the projected image.

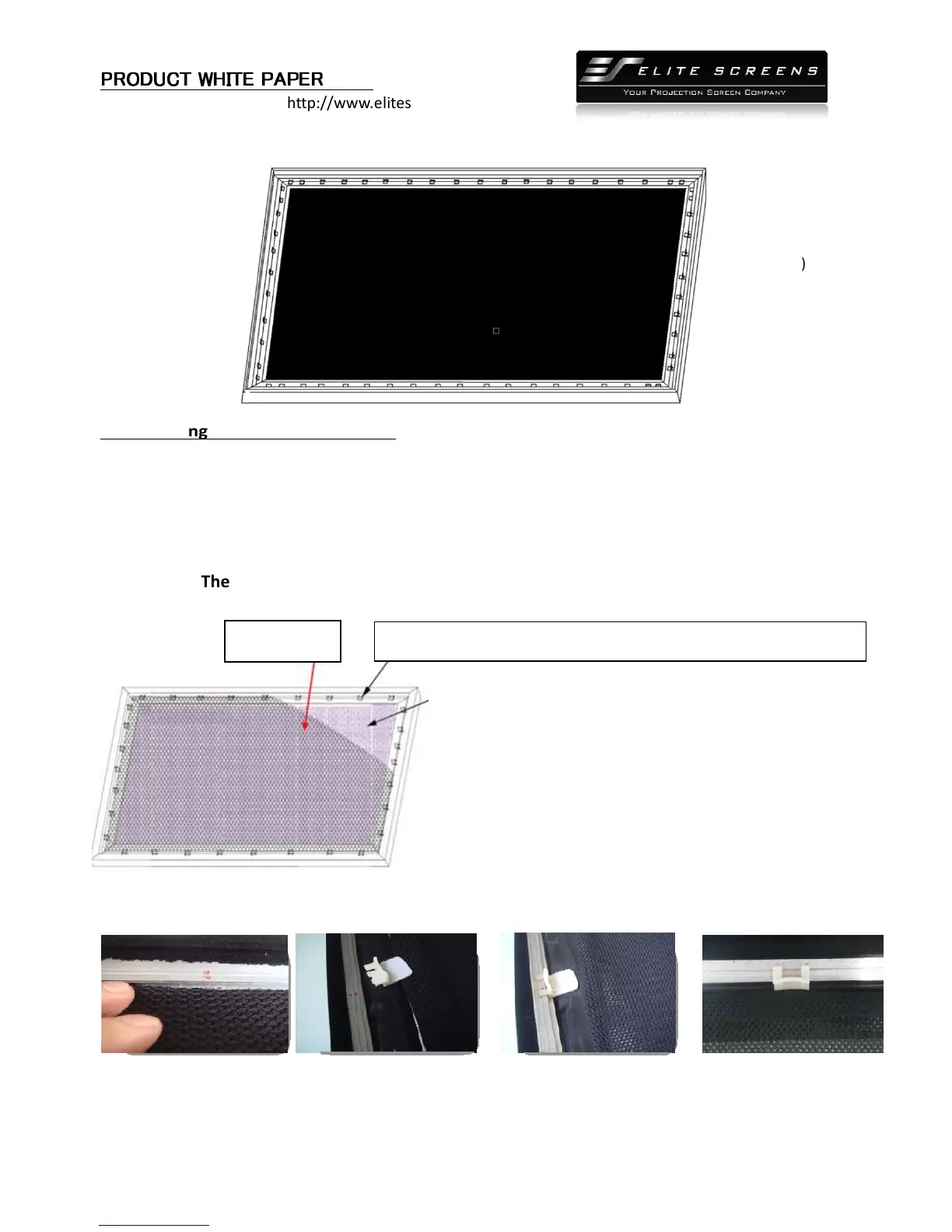

(Fig.11)
The black backing is held in place by the Velcro that is on the fix plates.
Interval markings reveal the best points for inserting the fix plates (Fig. 12).
The prongs on the fix plates insert to the lip on the back of the frame
creating a friction hold that will firmly keep the material and black backing
in place (Fig. 13-14).After the material has been installed, the backing will
lay over the back of the white (Acoustic) material and then be held in place
by the Velcro on the fix plates(Fig 15).
(Fig. 12)
(Fig. 14) (Fig. 13) (Fig. 15)
Black backing
Fix plates secure the Acoustic material and the black backing behind it.
