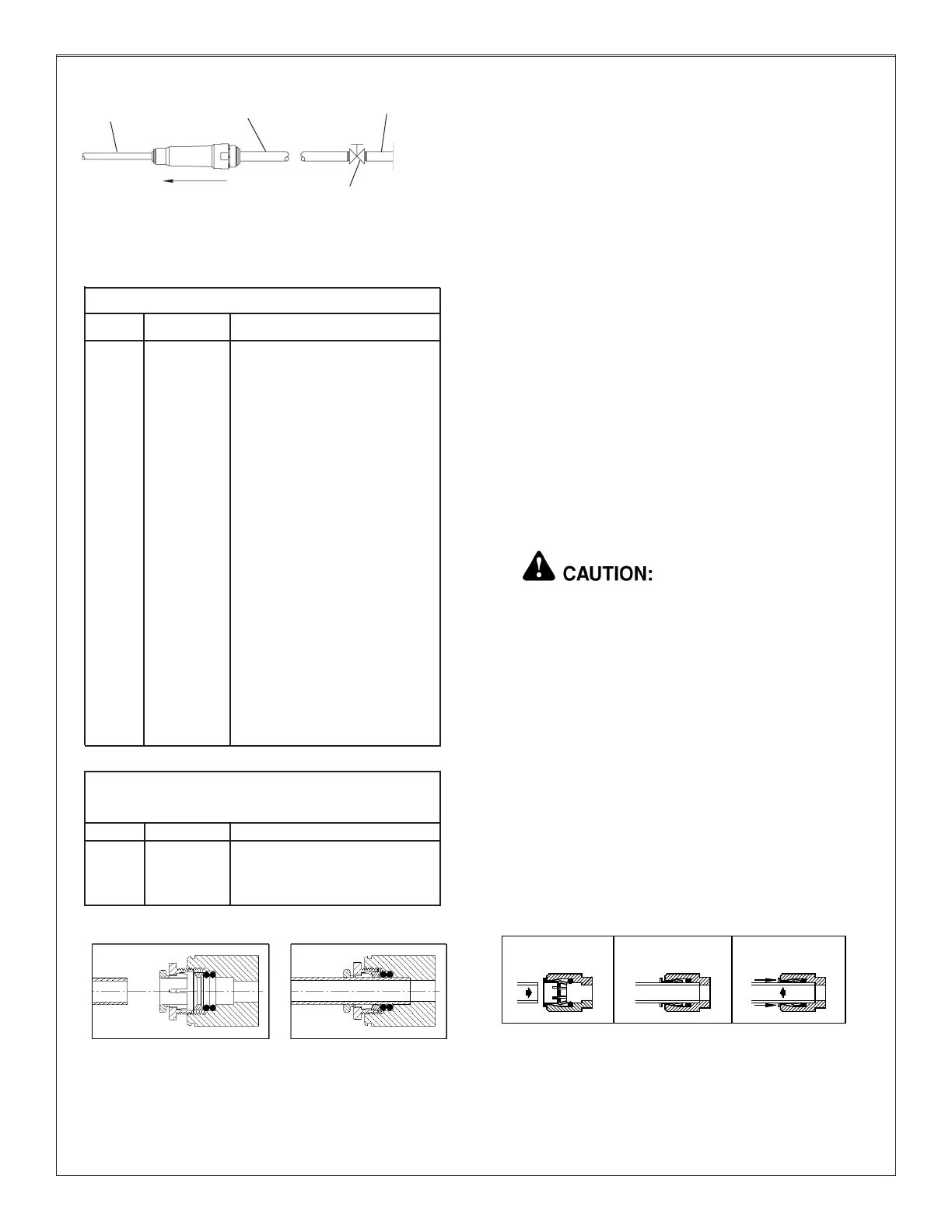

0000001028 (Rev. G - 11/18)
EDFP217WS EDFP217WS*F
Page 8
Note: Screw the locknut hand tight to seal
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816
REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 • www.elkay.com
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
56073C
28782C
28783C
LK464
98530C
45662C
45663C
75672C
112627543890
111008343890
56092C
1000001994
55996C
0000000980
55000661
55000665
40045C
28823C
56280C
75560C
1000001772
111577343890
70852C
62223C
1000002062
99003C
0000001153
Kit - Bubbler Assy
Fountain Arm - Short
Fountain Arm - Long
Drain
Kit - Regulator/Nut/Holder
Push Button
Push Button Sleeve
Screw - Cap #6-32 x 5/16
Screw - #10-24 x .50 PHTC
Screw - #10-24 x .62 HHSM
Poly Tubing 1/4” (Cut To Length)
Kit - Tee 1/4 x 1/4 x 1/4 (3 Pack)
Strainer
Back Panel Assembly
Bottom Cover Plate - Short
Bottom Cover Plate - Long
Hex Nut
Regulator Mounting Bracket
Edge Trim - Chrome
Screw - 5/16-18 x 1.00 HHMS
Kit - Elbow 1/4 x 1/4 (3 Pack)
Nut - Hex 5/16-18
Tee - 3/8 x 3/8 x 3/8
Copper Tube - 3/8” Cut To Length
Kit - Tee 1/4 x 1/4 x 3/8 (3 Pack)
Reset Switch Assy
Reset Switch Bracket
Figure 10 – Water Supply Connections
PARTS LIST
ITEM NO.
PART NO.
DESCRIPTION
NOTE: WATER FLOW
DIRECTION
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
1/4” O.D. TUBE
WATER INLET
TO COOLER
3/8” O.D. UNPLATED COP-
PER TUBE CONNECT
COLD WATER SUPPLY
DESCRIPTION
98543C
98544C
98545C
98546C
98549C
Kit - Electrical Package
Kit - EE Sensor
Kit - Solenoid Valve Replacement
Kit - Aerator Replacement
Kit - Hardware & Waterway Parts
BOTTLE FILLER REPLACEMENT
PART KITS
ITEM NO. PART NO.
27
28
29
30
31
Installation Package
The components for installation are packed in
two separate boxes, regardless of the type of unit
being installed. The boxes contain the following:
Box No. 1: Wall Frame(s)
Box No. 2: Fountain(s), Arm(s) and Panels
Additional materials, as noted in the Parts List,
are also shipped in these boxes.
TROUBLESHOOTING & MAINTENANCE
Orice Assembly: Mineral deposits on orice can
cause water ow to spurt or not
regulate. Mineral deposits may
be removed from the orice by
poking with a small round le
not over 1/8” diameter, or using
a small diameter wire.
DO NOT le or cut orice
material
Stream Regulator: If orice is clean, regulate
ow as in Step 14 of the installation instructions. If
replacement is necessary, see parts list for correct
regulator part number.
Figure 12 – Quick Connect Fittings
Actuation of Quick Connect Water Fittings: Cooler
is provided with lead-free connectors which utilize an
o-ring water seal. To remove tubing from the tting,
relieve water pressure, push in on the gray collar while
pulling on the tubing. (See Fig. 12) To insert tubing,
push tube straight into tting until it reaches a positive
stop (approximately 3/4”).
Figure 11
B CA
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
A B C
