Elko TER-9 Manual

- 17 -

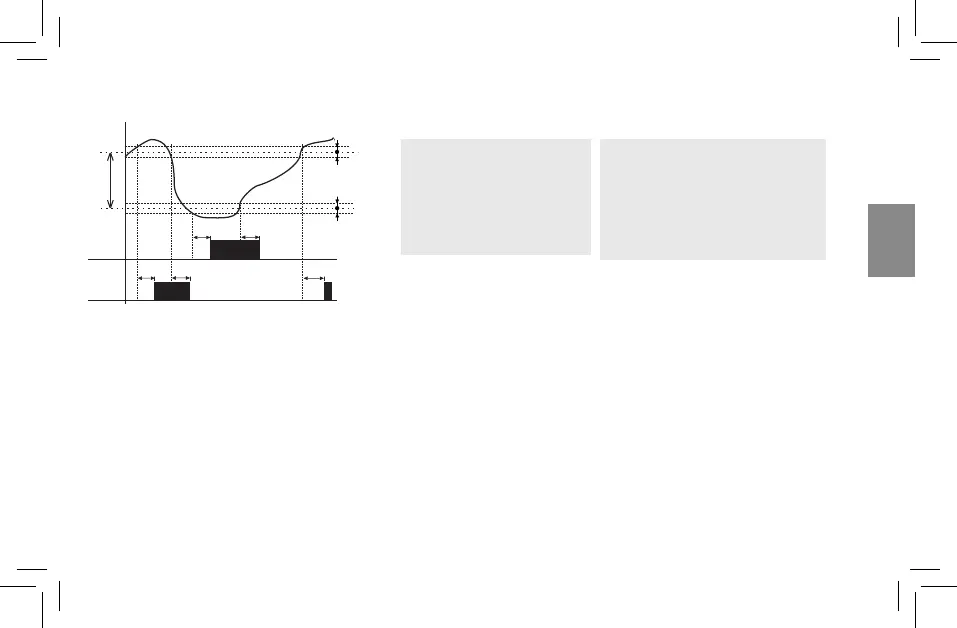

T1
Ts
15-18
25-28
T2
D
H1
H2
dy1
dy2
dy1
dy1
dy2
T
H2
H2
H1
H1
E
N
Legend:
Ts - real (measured) temperature
T1 - adjusted temperature
T=T1-D
H1 - adjusted hysteresis for T1
H2 - adjusted hysteresis for T2
dy1- set switching delay of the output
dy2 - set delay on output breaking
15-18 output contact (heating)
25-28 output contact (cooling)
- In case of thermostat with a „dead zone“ , it is
possible to set temperature T1 and a di erence
(respectively a width of dead zone D). If temperature
is higher than T1, output contact of cooling switches
ON; if the temperature gets bellow T1, the contact
switches OFF. If
the temperature gets bellow temperature T, the
contact of heating switches ON and it switches OFF
when temperature T is exceeded. This function can
be used for example for automatic air warming and
cooling in ventilation so the sit is always within the
range T1 and T.
Thermostat with dead zone
