Eltron LAB+ Series - Font Character Layout; Font Scaling

Font Character The native fonts (7x12, 10x18 and 14x22) in
the LAB+ printer are bit mapped characters.
Each bit in a font is represents a dot when
printing a font character.
Font Scaling The LAB+ printer supports font scaling. The
scaling is individually controlled by the hori-
zontal and vertical font multipliers in the A
command parameters. The font multipliers are
1, 2, 3 and 4.

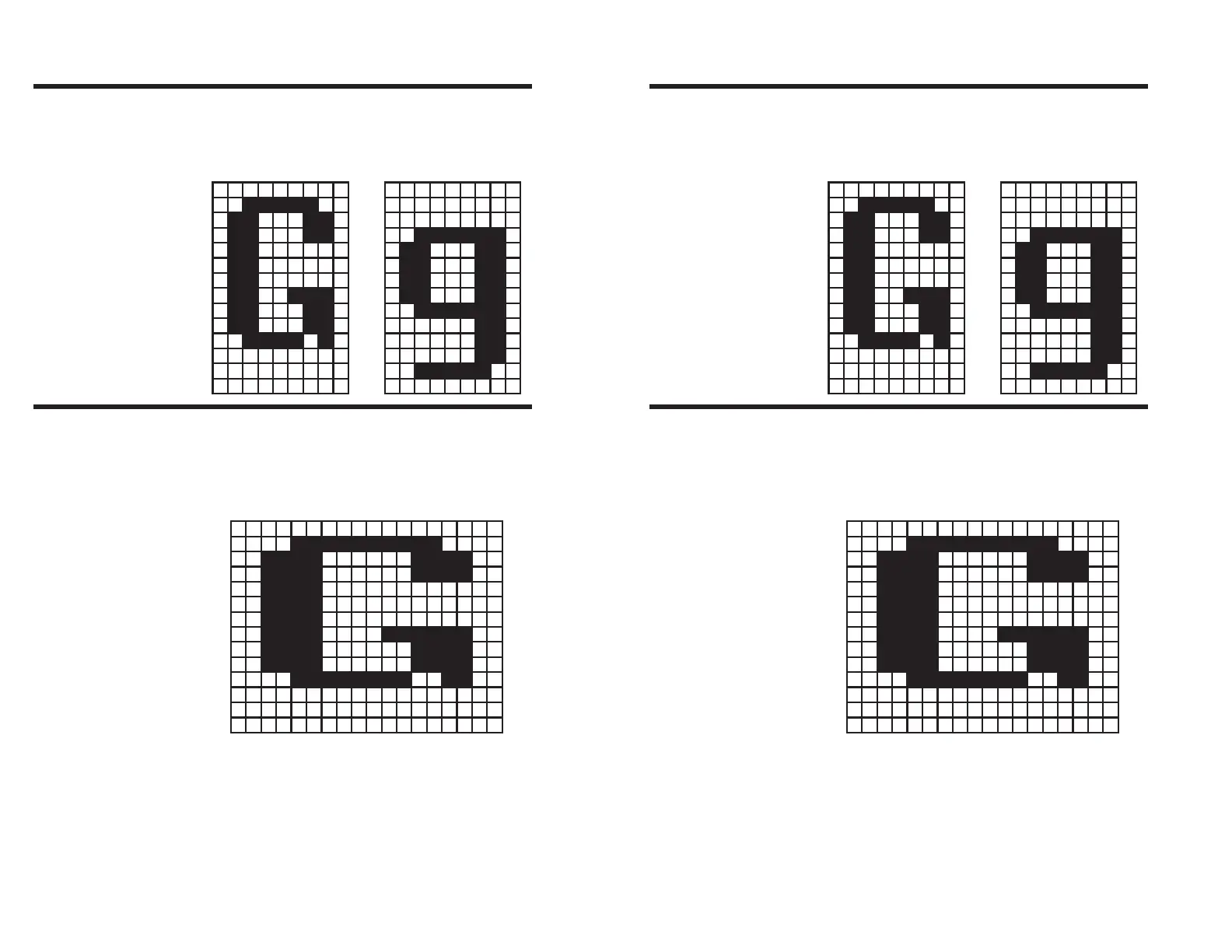

Figure 3-3
Example of
Character Map
Matrix 7W by 12H
(G and g)
Figure 3-4
Example of
Multiplier Effects
7W x 2 by 12H x 1
24
980090-001 Rev.B
Font Character The native fonts (7x12, 10x18 and 14x22) in
the LAB+ printer are bit mapped characters.
Each bit in a font is represents a dot when
printing a font character.
Font Scaling The LAB+ printer supports font scaling. The
scaling is individually controlled by the hori-
zontal and vertical font multipliers in the A
command parameters. The font multipliers are
1, 2, 3 and 4.
Figure 3-3
Example of
Character Map
Matrix 7W by 12H
(G and g)
Figure 3-4
Example of
Multiplier Effects
7W x 2 by 12H x 1
24
980090-001 Rev.B
