Installation
Page 16
Step 3 - Connecting the VHF antenna
Route the cable from the VHF antenna to the AIS transceiver and connect to the VHF connector
on the AIS transceiver as shown in Figure 7.
A standard marine band VHF antenna or AIS antenna should be used with the AIS transceiver.
The connector type on the AIS transceiver is SO239. Your chosen VHF antenna requires a
PL259 connector to mate with this. If your VHF antenna does not use this type of connector
please contact your dealer for details of available adaptors.

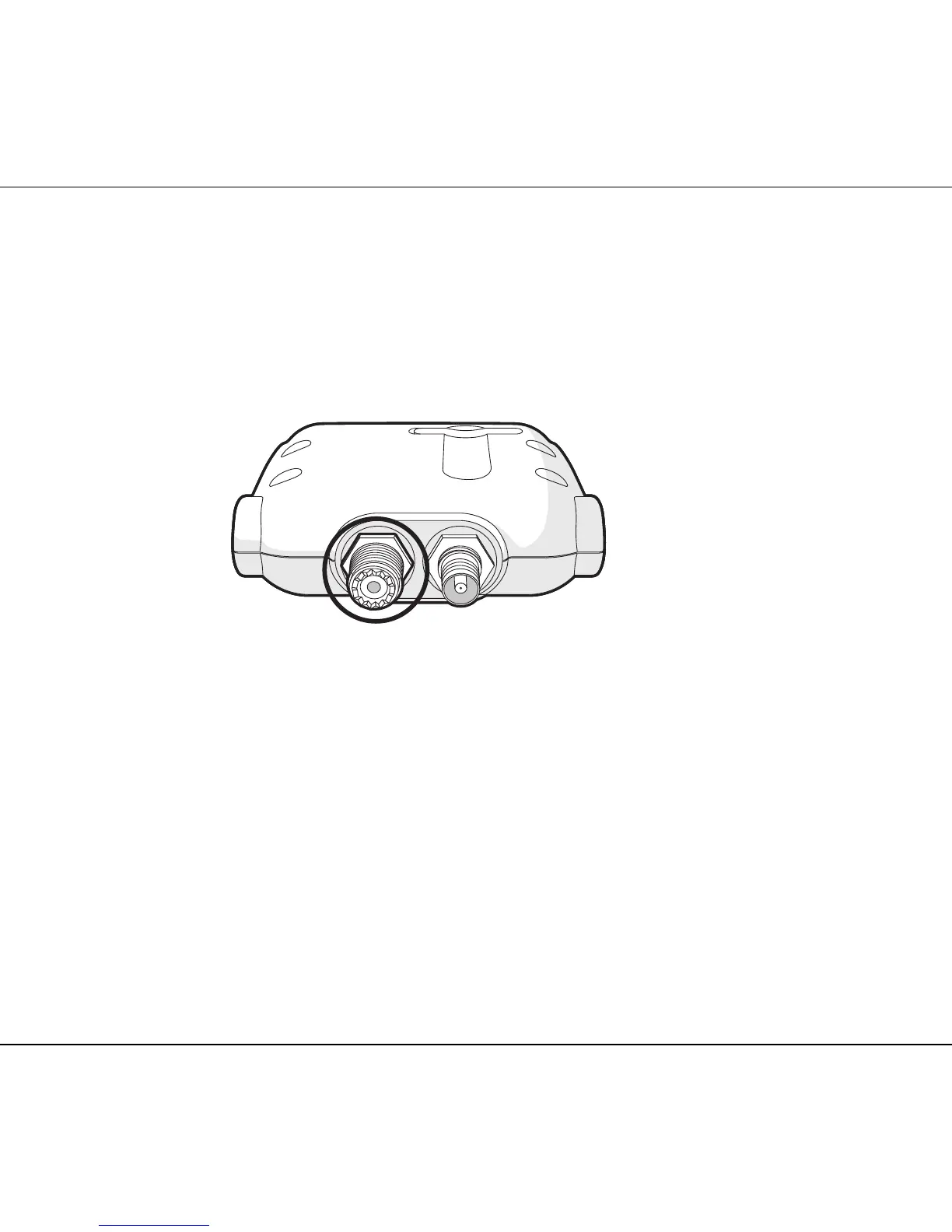

Figure 7 Position of the VHF antenna connector
