Installation
Page 17

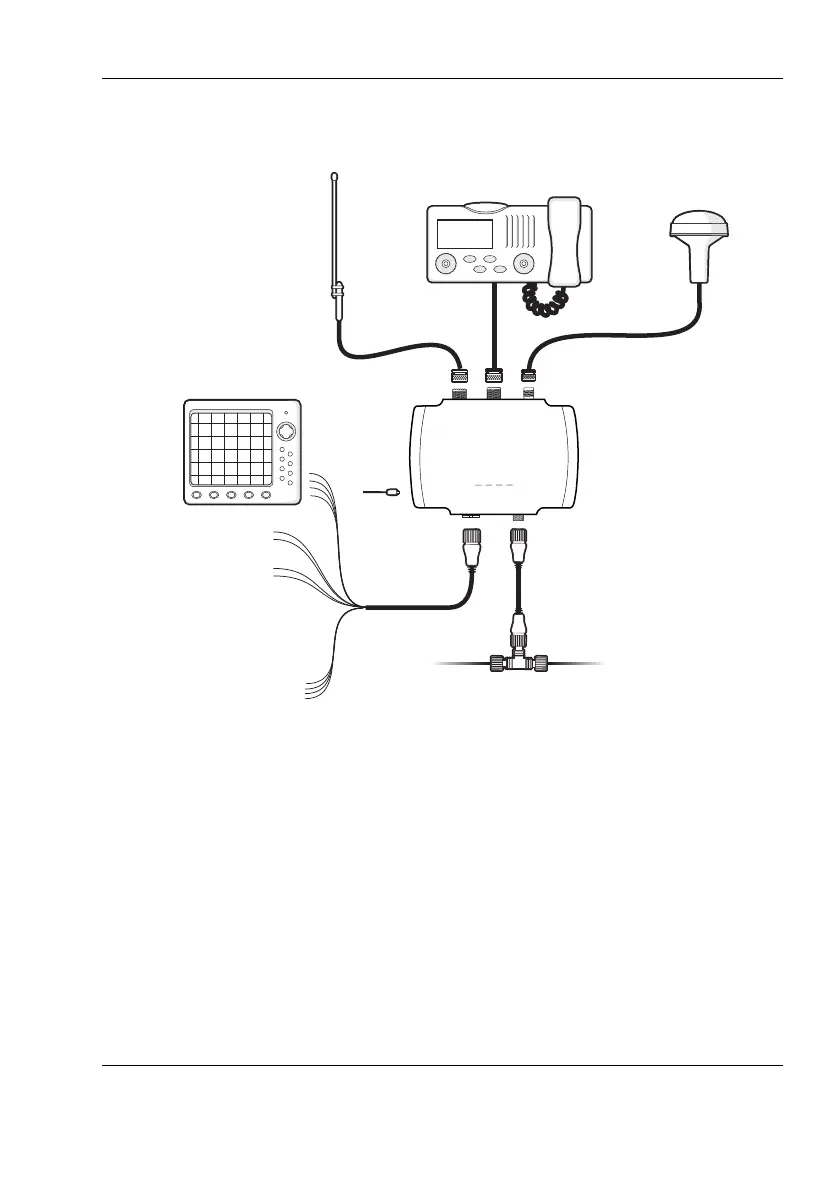

Figure 5 Typical installation configuration with antenna splitter
In addition to the items provided with your AIS transceiver the following items
may also be required for the installation:
3.1.1 Screwdriver
A small flat-headed screwdriver will be required to tighten the screw in the
mounting bracket.
Power in
Switch
NMEA 2000
Chartplotter
VHF antenna
VHF radio
USB
NMEA 0183 device
GNSS antenna
(Optional)
AIS Class B
transceiver
