2

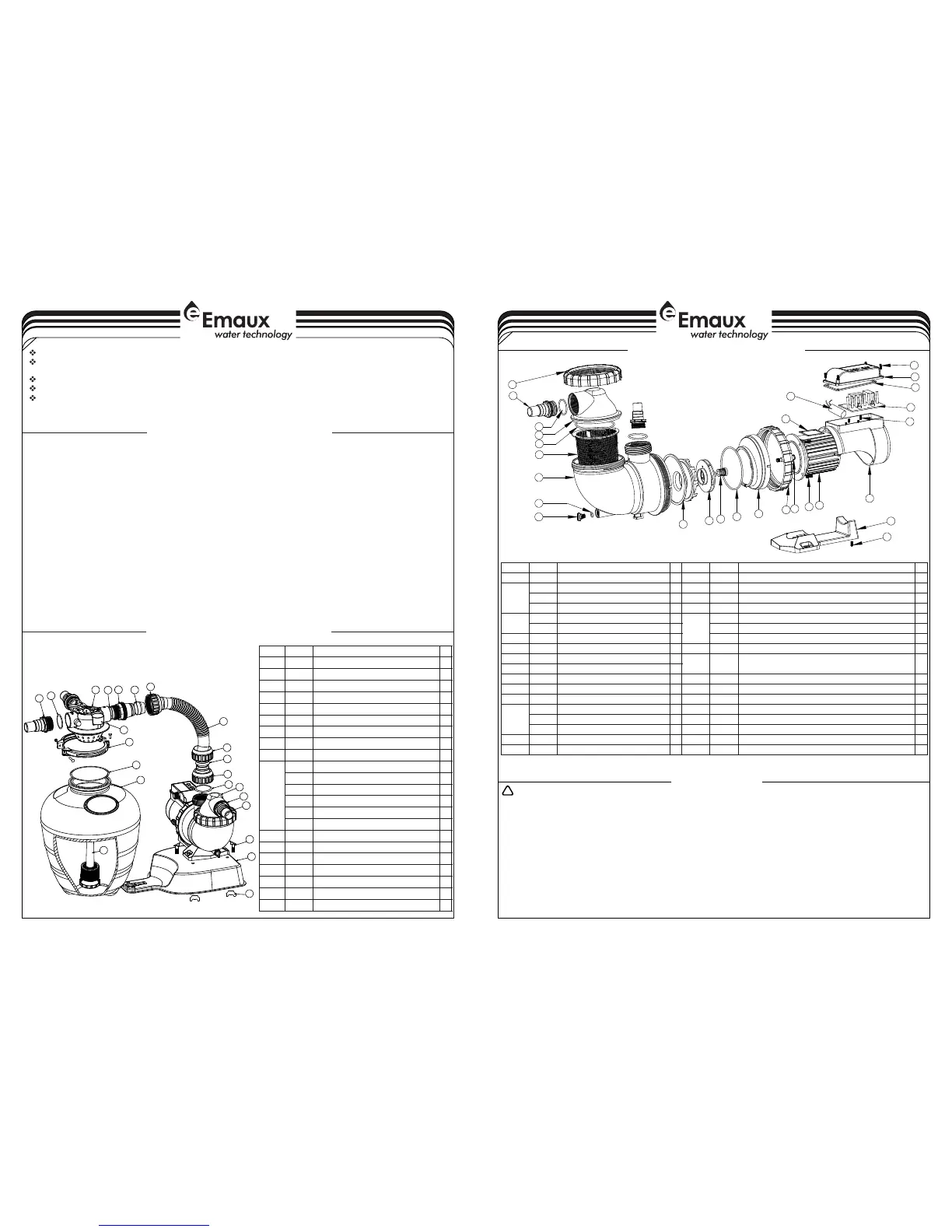

REPLACEMENT PARTS OF FILTER
1. Be sure correct amount of filter media sand is in tank and that all connections have been made and are secure.
2. Depress control valve handle and rotate to BACKWASH position. (To prevent damage to control valve seal,
3. Prime and start pump. Never tun pump dry! Running pump dry may damage seals,causing leakage and flooding!
Fill pump with water before starting motor. (be sure all suction and return lines are open), allowing the filter tank
to fill with water. Once water is flowing out of the waste line, run the pump for at least 1 minute. The initial
back-washing of the filter is recommended to remove any impurities or fine sand particles in the sand media.
4. Turn pump off and set valve to RINSE position. Start pump and operate until water in sight glass is clear, about
normal filter mode, filtering dirt particles from the pool water.
5. Adjust pool suction and return valves to achieve desired flow. Check system and filter for water leaks and tighten
6. Note the initial pressure gauge reading when the filter is clean. (It will vary from pool to pool depending upon the
initial "clean" pressure you noted, it is time to backwash the filter (see BACKWASH under filter and control
NOTE: During initial clean-up of the pool water it may be necessary to backwash frequently due to the unusually
INSTALL/START-UP OF FILTRATION
always depress handle before turning.)
1/2 to 1 minute. Turn pump off and set valve to FILTER position and restart pump.The filter is now operating in the
connections, bolts, nuts, as required.
pump and general piping system.) As the filter removes dirt and impurities from the pool water, the accumulation in the
filter will cause the pressure to rise and flow to diminish. When the pressure gauge reading is 1.5 bar, higher than the
heavy initial dirt load in the water.
valve functions).
AMU PUMP REPLACEMENT PARTS
Release all air from filter and piping system.
In a flooded suction system (water source higher than pump), pump will prime itself when suction and
discharge valves are opened.
If pump is not in a flooded suction system, unscrew and remove trap cover; fill trap and pump with water.
Clean and inspect Ring; re-install on trap cover.
Replace trap cover on trap; turn clockwise to tighten cover.
NOTICE: Tighten trap cover by hand only .Pump should prime now. Priming time will depend on vertical
length of suction lift and horizontal length of suction piping.
PRIMING PUMP
26
25
23
22
20
21
5
27
19
18
17
16
15
14
13
12
11
10
9
8
7
6
4
3
2
1
24
28
WARNINGS:
I
IIf the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard;
IThis appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety; children should be supervised to
ensure that they do not play with the appliance;
IThe maximum total head is 1 metre;
IPollution of the liquid could occur due to leakage of lubricants;
IThe pump must not be used when people are in the water;
IThe pump must be supplied through a residual current device(RCD) having a rated residual operating
current not exceeding 30 mA.
EMAUX pumps must be wired to the main supply through an approved and licensed electrician.
!
3
15
3
2
14
11
6
2
13
16
17
12
11
1
10
9
8
5
7
6
5
4
2
1
